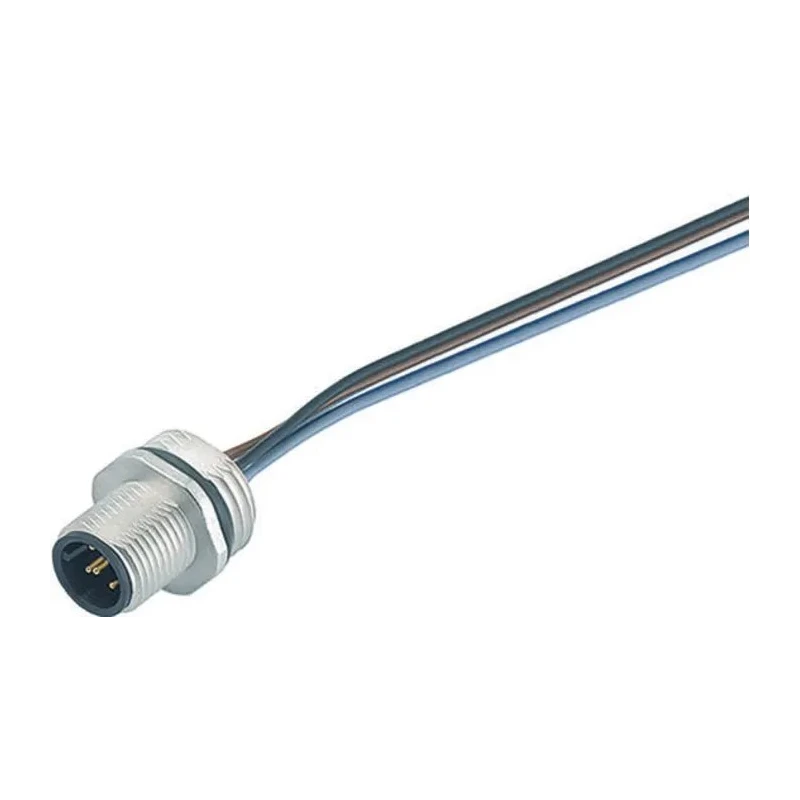

binder Circular Connector 4 Contacts Surface Mount Socket Female IP68 250V 4A 09-3431-282-04
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Current | 4A |
| IP Rating | IP68 |
| Mount Type | Surface |
| Housing Material | Die Cast Zinc, Nickel Plated |
| Contact Material | Copper |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Size | M12 |
| Plug/Socket | Socket |
| Coding | A |
Key Features
- Features a die cast zinc housing with nickel plating for durability.
- Includes 4 gold-plated copper contacts ensuring reliable connectivity.
- Supports 250 volts and a current rating of 4 amperes.
- Operates reliably between -40°C and 85°C temperature range.
- Utilizes an A-coded screw locking system for secure connections.
- Offers an IP68 rating for protection against dust and water ingress.
- Female socket configuration suitable for industrial environment mounting.
- Meets UL standards for safety and performance.
Product Description
binder 09-3431-282-04 Circular Connector is a robust 4-contact surface mount female socket connector suitable for demanding industrial and electronic applications. Rated IP68, this connector ensures excellent protection from dust and water, making it ideal for use in harsh environments.
The housing is manufactured from die cast zinc with nickel plating, providing high mechanical strength and corrosion resistance. Gold-plated copper contacts improve electrical conductivity and durability over repeated mating cycles.
This M12 connector supports a voltage rating of 250V and a current of 4A, with reliable operation across a broad temperature range from -40°C up to 85°C. The A-coded connector with screw locking provides a secure and vibration-resistant connection.
Common applications include industrial automation, manufacturing, audio/video systems, power distribution, and equipment interconnects in commercial and industrial plants. Its compliance with UL standards ensures dependable safety and quality assurances.
Durable die cast zinc housing with nickel plating. Gold-plated copper contacts for optimal conductivity. Rated IP68 for comprehensive ingress protection. Voltage 250V and current 4A support industrial power needs. Wide operating temperature range from -40°C to 85°C.
Screw locking system for secure and stable connections. Surface mount type for flexible installation. Complies with UL standards for safety.
This binder circular connector combines high-quality materials with robust design for secure and reliable connections in electronic, industrial, and manufacturing environments. Explore EnvMart for further binder products and Industrial Circular Connectors for your application needs.
