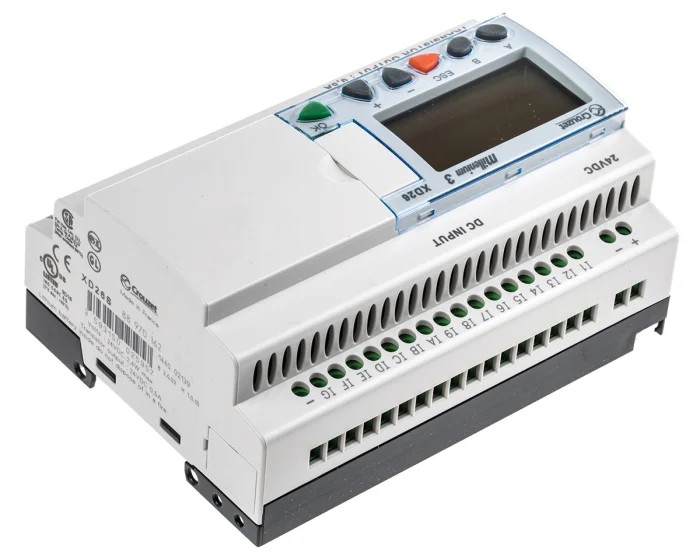

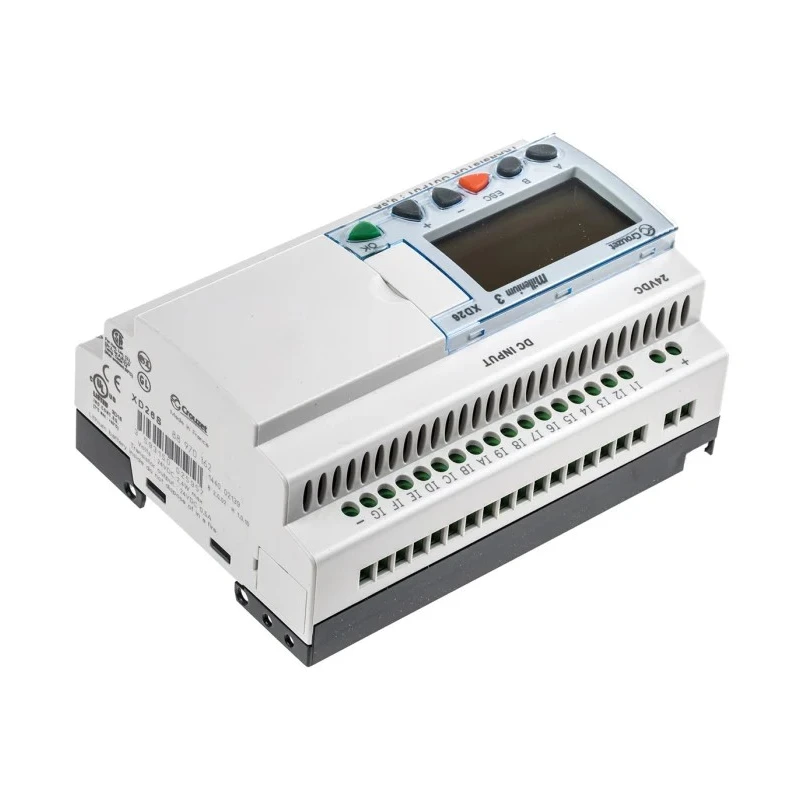

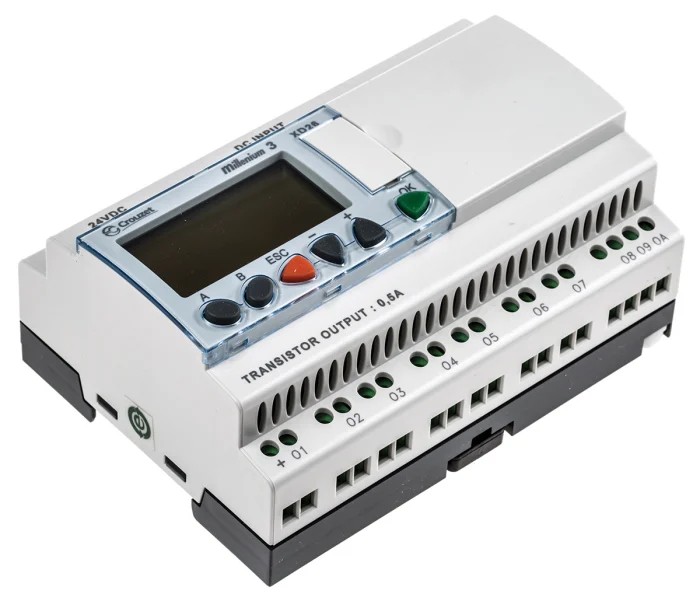

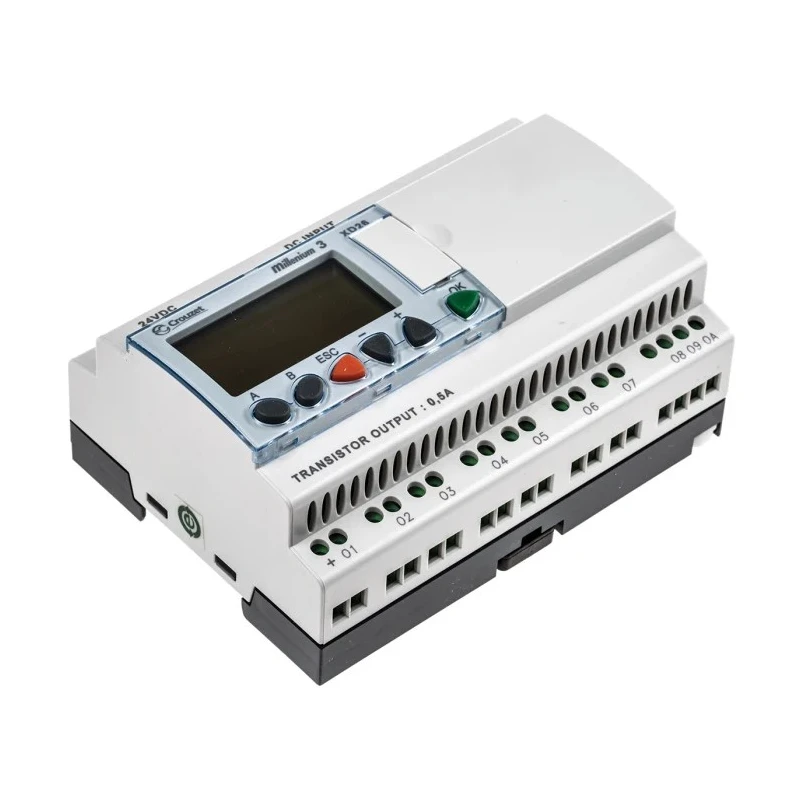

Crouzet Millenium 3 Series Logic Module, 16-Input Analogue and Digital Input, 10 Transistor Outputs, 24V DC Supply 88970162

Free Delivery in India | Lowest Global Shipping Charges

Crouzet Millenium 3 Series Logic Module, 16-Input Analogue and Digital Input, 10 Transistor Outputs, 24V DC Supply 88970162

Name: Crouzet Millenium 3 Series Logic Module, 16-Input Analogue and Digital Input, 10 Transistor Outputs, 24V DC Supply 88970162
Brand: CROUZET
SKU: 195535
Price: 530.37 USD
Availability: InStock



Category Logic Module Brand CROUZET Condition New

Specifications

Country of Origin	France
Brand	Crouzet
Length	124.6mm
Model	88970162
Depth	59.5mm
Width	100mm
Mount Type	DIN Rail
Number of inputs	16
Output type	Transistor
Series	Millenium 3
Output Current	500mA
Input Type	Analogue, Digital
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-20°C
Interfaces	USB port communication
Number of outputs	10
Supply Voltage	24V dc
Number of Communication Ports	2
Communication Port Type	Serial, USB
Programming Language Used	Ladder Logic, FBD
Selective parameter setting	you can choose the parameters that can be adjusted on the front pane
Expandable versions	open to XN network communication extensions and digital I/O or analogue extensions

Key Features

Operates with a 24V DC supply voltage suitable for industrial control systems.
Includes 16 inputs, with 6 analogue inputs of 10-bit resolution for precise measurement.
Features 10 solid state transistor outputs rated at 0.5A, including 4 PWM outputs.
Equipped with a green LCD display with four lines of 18 characters for clear system status indication.
Supports ladder logic and function block programming languages for versatile control programming.
Communication interfaces include serial and USB ports for easy connectivity and programming.
Operates reliably in temperatures ranging from -20°C to 55°C.
DIN rail mountable with screw termination ensuring secure installation.

Product Description

Crouzet 88970162 Millenium 3 Series Logic Module offers advanced control features with 16 inputs - comprising analogue and digital types - and 10 transistor outputs rated at 500mA. Powered by a 24V DC supply and designed for DIN rail mounting, it is suitable for various industrial automation applications.

The Millenium 3 series is the latest generation, providing increased memory capacity to handle complex control tasks. The device supports ladder logic and function block programming, with a user-friendly green LCD display showing four lines of 18 characters. Inputs include 6 analogue inputs with 10-bit resolution for enhanced measurement precision.

Communication features include serial and USB ports, enabling easy programming and integration into larger control networks. The logic module has a wide operating temperature range of -20°C to 55°C, making it robust for harsh industrial environments. Screw termination ensures reliable wiring connections.

Battery backup is included to maintain program data during power interruptions. The module is expandable with XN network communication extensions, allowing additional digital or analogue I/O modules to be integrated seamlessly.

Applications include use in automatic washing equipment, agricultural machinery, HVAC systems, and heating management. The solid-state transistor outputs feature pulse-width modulation (PWM) capabilities for precise output control.

Operates on 24V DC supply voltage. 16 inputs including 6 analogue inputs with 10-bit resolution. 10 transistor outputs with 500mA current rating, including 4 PWM outputs. User interface with green backlit LCD, 18 characters x 4 lines.

Supports ladder logic and function block programming languages. Communication via serial and USB ports. Battery backup for program preservation. Expandable via XN network communication extensions. DIN rail mounting with screw termination.

Wide operating temperature range of -20°C to 55°C.

The Crouzet Millenium 3 Series Logic Module is a versatile, reliable solution for complex control and automation needs in industrial, manufacturing, HVAC, and agricultural sectors. Explore more in the Logic Module category at EnvMart.
