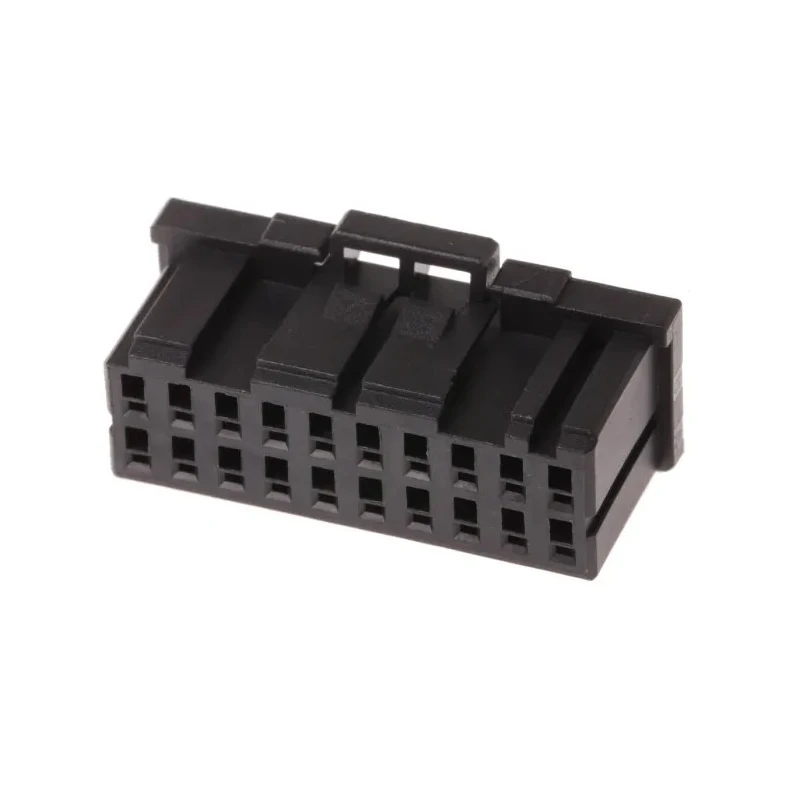

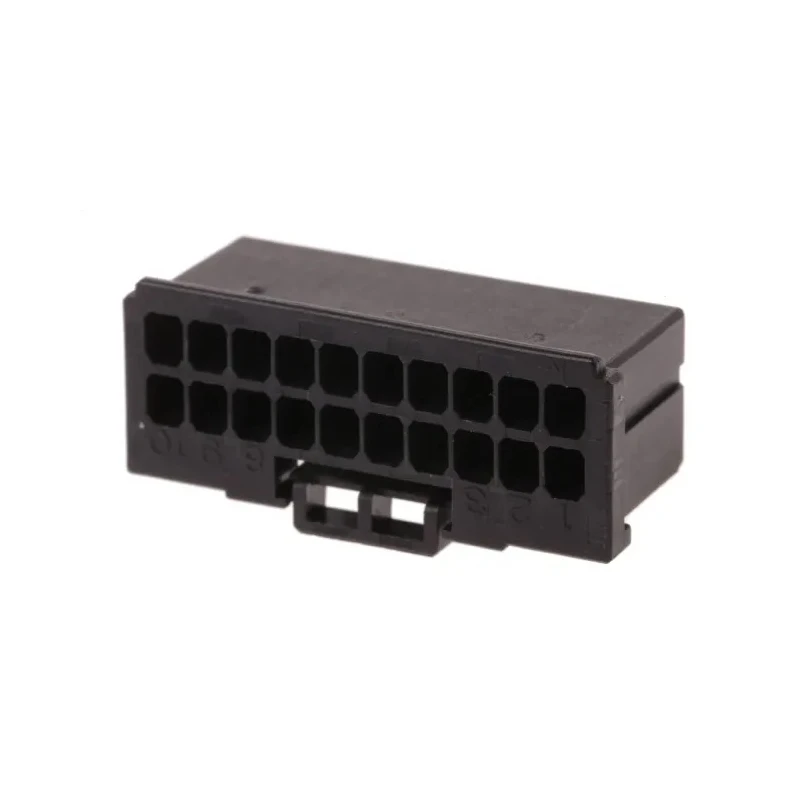

TE Connectivity Dynamic 1000 Series Female Connector Housing 20 Contacts 2 Row Straight 2.5mm Pitch 1-1827864-0

TE Connectivity 1-1827864-0 Dynamic 1000 Series female connector housing features 20 contacts arranged in 2 rows with a 2.5 mm pitch, specifically designed for cable mounting in electronic applications.

This compact and robust connector housing is made from polyethylene terephthalate, offering excellent insulation and durability for demanding environments in industrial electronics, communication equipment, and instrumentation.

The straight orientation and precise dimensions of 27.6 mm length by 12.45 mm width provide an efficient interface for wire-to-panel, wire-to-board, and wire-to-wire connectors, supporting versatile application needs.

The housing design incorporates a lance structure to minimize contact lance breakage during terminal handling, combined with housing lock and keying features that ensure secure, accurate mating and prevent mismating in multi-connector assemblies.

Color coding and circuit number marking on the housing assist in wiring accuracy and ease of installation, critical for manufacturing and maintenance tasks.

The TE Connectivity Dynamic 1000 Series represents the smallest signal connector range in the Dynamic connector portfolio, targeting equipment where space-saving and reliable signal integrity are priorities.

Socket contacts compatible with this housing must be purchased separately, enabling tailored configurations. The connector housing supports wire-to-panel, wire-to-board, and wire-to-wire connections. The compact design suits miniaturized electronic equipment requiring space-saving solutions.

Constructed from durable polyethylene terephthalate material ensuring reliable insulation. The housing features a straight orientation with specific length and width measurements. Includes a housing lance structure to prevent contact lance breakage during terminal processing.

Incorporates housing lock and keying for secure and accurate mating of connectors. Color-coded circuit marking on housing enables easy mating identification and wiring. Part of the Dynamic 1000 Series, ideal for small signal connector applications.

Socket contacts are sold separately to allow customized configurations.

This Connector Housing is suitable for use in industrial, communication, electronic manufacturing, aerospace, and instrumentation applications requiring reliable, compact connector solutions.
