TE Connectivity PIDG Insulated Fork Terminal, Nylon Blue, 16 AWG to 14 AWG, M2.5 Stud Size, 20.65mm Length 130526

Free Delivery in India | Lowest Global Shipping Charges

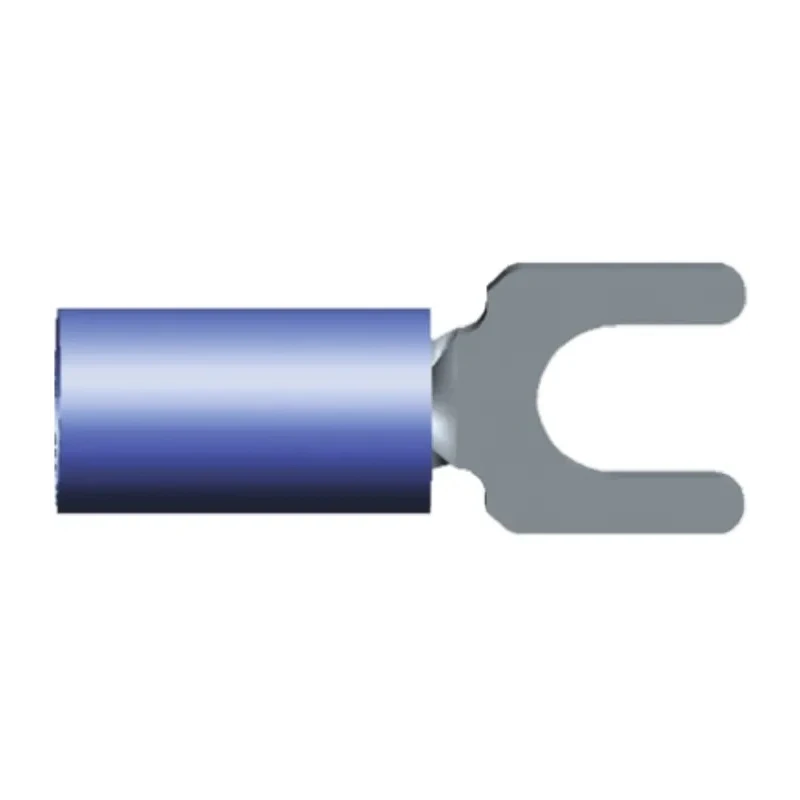

TE Connectivity PIDG Insulated Fork Terminal, Nylon Blue, 16 AWG to 14 AWG, M2.5 Stud Size, 20.65mm Length 130526

Name: TE Connectivity PIDG Insulated Fork Terminal, Nylon Blue, 16 AWG to 14 AWG, M2.5 Stud Size, 20.65mm Length 130526
Brand: TE Connectivity
SKU: 216758
Price: 0.44 USD
Availability: InStock



Category Fork Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Blue
THICKNESS	0.78mm
Model	130526
Width	6.35mm
Insulation	Insulated
Overall Length	20.65mm
Contact Material	Copper
Series	PIDG
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	1mm²
Maximum Wire Size mm²	2.6mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Stud Size	M2.5

Key Features

Constructed with high conductivity copper for optimum electrical performance.
Features a nylon blue insulated sleeve for wire identification and insulation support.
Designed with M2.5 stud size to fit common panel hardware.
Overall length measures 20.65mm ensuring compact and precise fitting.
Contact plating is tin for enhanced corrosion resistance.
Suitable for use in electronics, aerospace, motors, lighting, and control instruments.
Color coded sleeves facilitate easy wiring and tooling identification.
Funnelled wire entry design allows quick and reliable wire insertion.

Product Description

TE Connectivity 130526 PIDG Insulated Fork Terminal is engineered for dependable electrical connections in demanding industrial environments, compatible with 16 AWG to 14 AWG wires. The terminal features a precision-formed copper body ensuring high conductivity and reliable contact performance.

The insulated sleeve is made from color-coded nylon in blue, enhancing wire identification and providing robust insulation support after crimping. This design prevents wire insulation damage and conductor breakage during application.

The M2.5 stud size fits a broad range of mounting hardware, making it ideal for instrumentation, control panels, power supplies, motors, lighting, aerospace, and appliance applications.

The terminal includes tin-plated copper contacts for superior corrosion resistance and tensile strength. Designed with serrations inside the wire barrel, it ensures maximum contact and gripping force for a uniform and secure crimp.

Additional features include a funnelled wire entry that allows for fast wire insertion during high-volume production environments. The terminal reliably meets or exceeds MIL-T-7928 Type II Class 1 and 2 standards, making it suitable for harsh operating conditions.

High conductivity copper body for maximum electrical performance. Nylon insulation sleeve for wire protection and color coding. Tinned contacts enhance corrosion resistance and durability. Compact overall length of 20.65mm optimizes space in equipment.

Compatible with 16 AWG to 14 AWG wire sizes. M2.5 stud size for versatile mounting options. Funnelled wire entry for easy wire insertion and reliable crimping. Robust 0.78mm thickness providing mechanical strength.

This TE Connectivity PIDG Fork Terminal is widely used across industrial, aerospace, automotive, and electrical manufacturing sectors. It delivers consistent performance in panel building, motor assemblies, control systems, and wiring harnesses.
