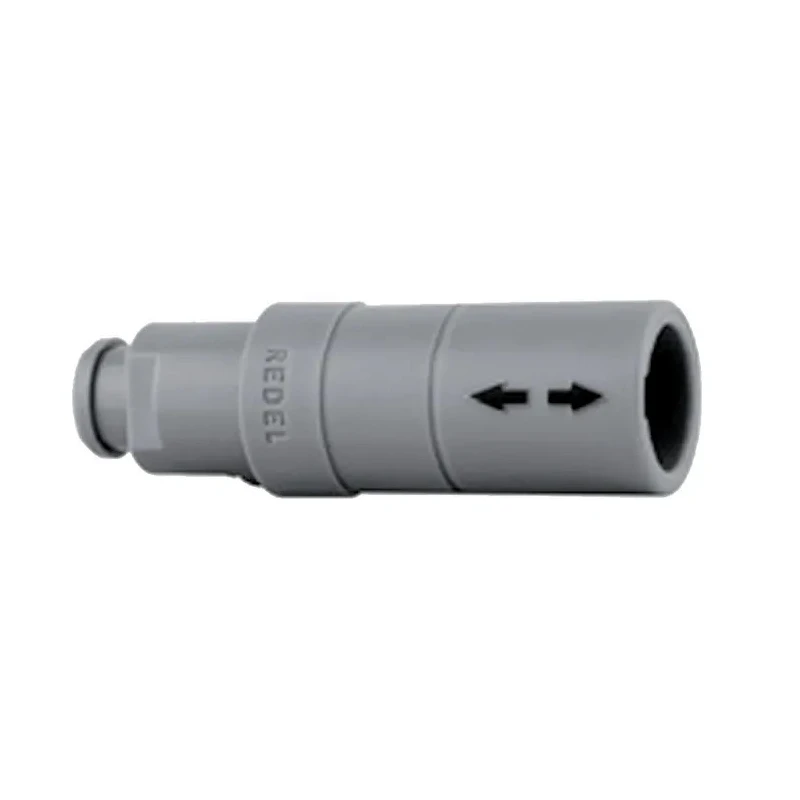

LEMO Industrial Circular Connector 3 Contacts Cable Socket Male IP50 Redel P Series PRH.N0.3GL.AC65GZ

Free Delivery in India | Lowest Global Shipping Charges

LEMO Industrial Circular Connector 3 Contacts Cable Socket Male IP50 Redel P Series PRH.N0.3GL.AC65GZ

Name: LEMO Industrial Circular Connector 3 Contacts Cable Socket Male IP50 Redel P Series PRH.N0.3GL.AC65GZ
Brand: LEMO
SKU: 216462
Price: 26.96 USD
Availability: InStock



Category Industrial Circular Connector Brand LEMO Condition New

Specifications

Country of Origin	Switzerland
Voltage	3V
Brand	LEMO
Orientation	Straight
Current	9A
Model	PRH.N0.3GL.AC65GZ
IP Rating	IP50
Mount Type	Cable
Housing Material	Polymer
Contact Material	Copper
Series	Redel P
Termination Type	Solder
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-50°C
Contact Plating	Gold over Nickel
Number of Contacts	3
Contact Gender	Male
Shell Size	1
Mating Type	Push Pull
Plug/Socket	Socket

Key Features

Designed with a push-pull mating type for reliable connection.
Features gold over nickel plated copper contacts for durability and optimal conductivity.
Operates at a voltage of 3V and carries current up to 9A.
Housing made from rugged polymer, qualified for temperatures from -50°C to 150°C.
Cable socket type with a male contact gender and shell size 1.
Equipped with cable collet and nut for bend relief and cable diameter 4mm to 5.2mm.
Redel (Plastic) series with 170° keying for precise orientation.
Maintains electrical performance over at least 1000 mating cycles.

Product Description

LEMO PRH.N0.3GL.AC65GZ is an Industrial Circular Connector from the Redel P series featuring 3 contacts and designed for cable mounting applications. This connector is rated IP50, suitable for various electronic and electrical power and signal systems requiring reliable connections with push-pull mating mechanism to prevent accidental disconnection.

The connector housing is constructed from high-quality polysulphone polymer, which is lightweight, rugged, and UL certified with UL94V-0 flammability rating. It withstands operating temperatures ranging from -50°C to 150°C and can be sterilised up to 20 times using gas or steam without degradation.

Contacts are precision-made from copper with a gold plating over nickel to ensure excellent electrical conductivity and durability for at least 1000 mating cycles. The connector supports operating voltages up to 3V and current up to 9A, optimized for mains power applications.

This model includes a cable collet and nut for secure bend relief, compatible with cable diameters between 4mm to 5.2mm. Its straight orientation with a 170° keying prevents incorrect mating, enhancing connection reliability in industrial environments.

Manufactured in Switzerland, the product reflects LEMO's commitment to quality and durability, suitable for industrial, laboratory, manufacturing, and electrical power applications requiring robust circular connectors.

Push-pull self-latching mechanism ensures secure connection. Gold over nickel plating on copper contacts for extended life. Polymer housing certified UL94V-0 rated for fire resistance. Wide temperature operating range from -50°C to 150°C.

Designed for cable mount with built-in bend relief support. Compatible with cables from 4mm to 5.2mm diameter. Redel P series with 170° precise keying for reliable orientation. Manufactured in Switzerland to high-quality standards.

Explore LEMO connectors at EnvMart for reliable industrial electrical connection solutions.
