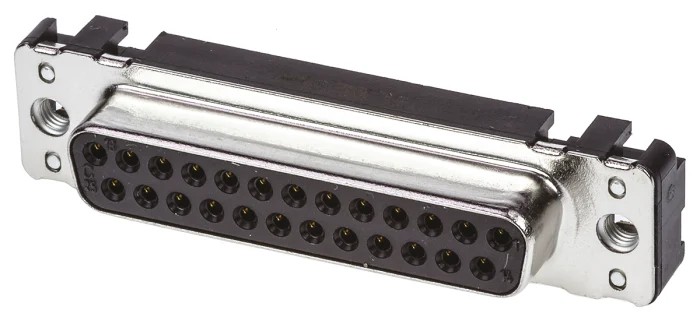

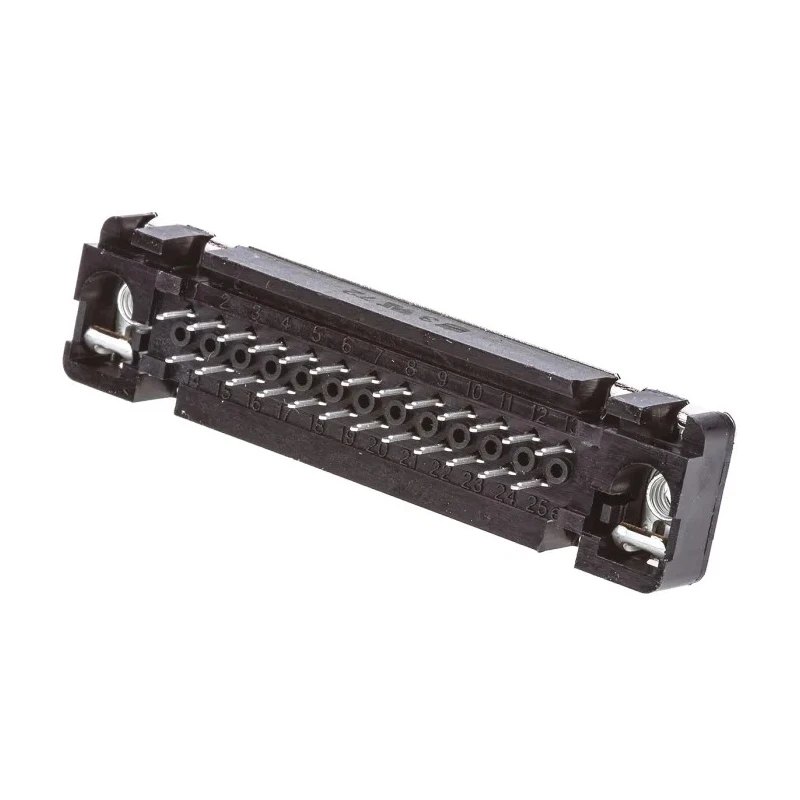

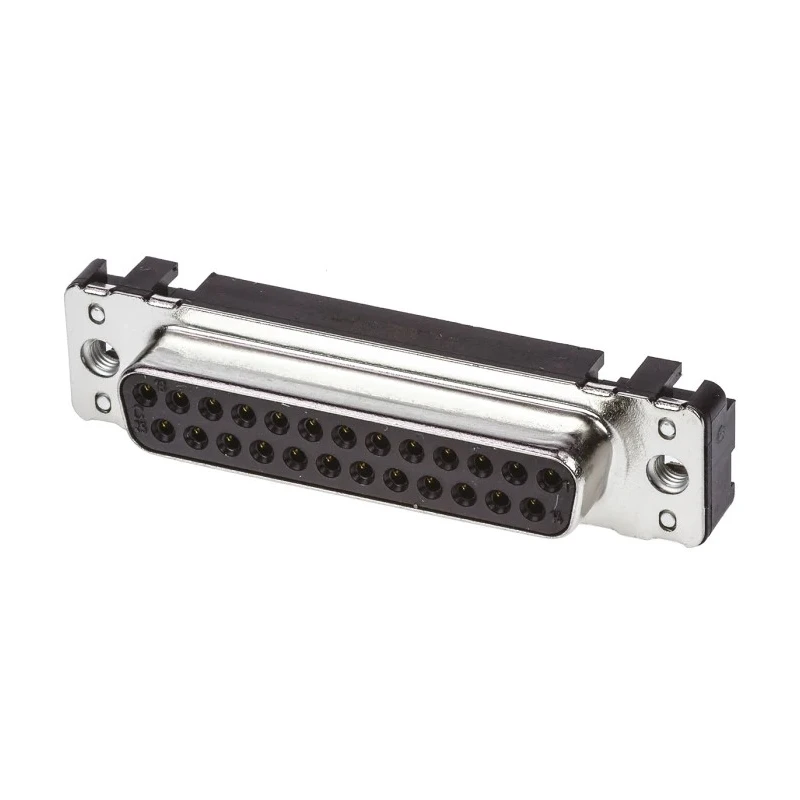

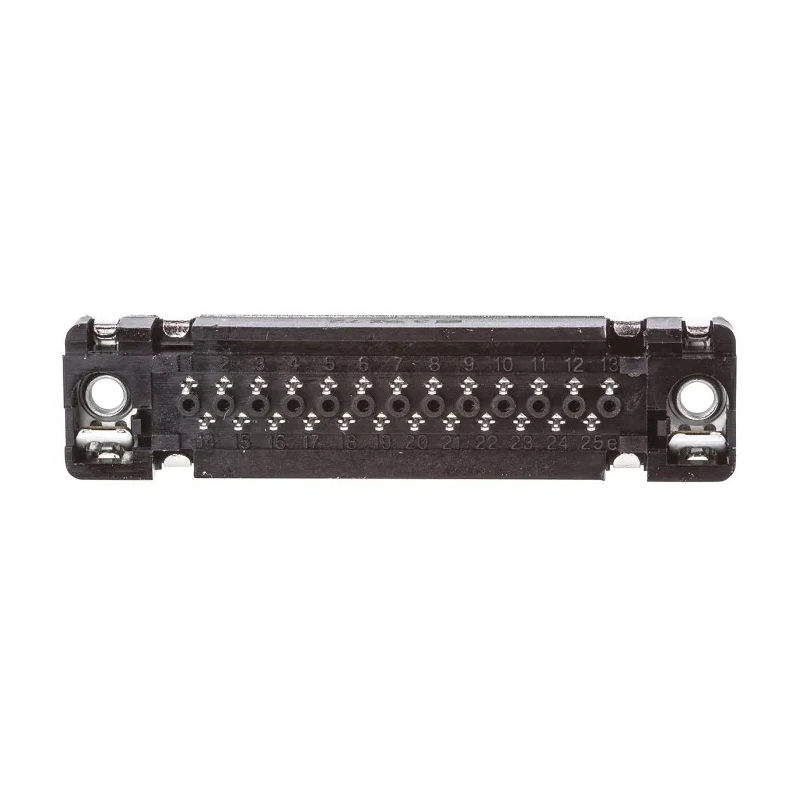

HARTING D-Sub Standard 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Female 09663117501
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Metal |
| Contact Material | Copper Alloy |
| Series | D-Sub Standard |
| Mounting Hardware | M3 Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | Standard |
| D-Sub Shell Size | D |
Key Features
- Features 25 contacts ensuring secure electrical connections.
- Supports a current rating of 6A for efficient power handling.
- Designed with a straight orientation for through-hole PCB mounting.
- Equipped with M3 threaded insert mounting hardware for stable installation.
- Constructed with metal housing and copper alloy contacts for durability.
- Rated for voltage up to 1 kV for safe operation.
- Operates reliably from -55°C to 125°C temperature range.
- Contact pitch measures 2.76 mm, compliant with D-Sub Standard series.
Product Description
HARTING 09663117501 is a high-quality D-Sub Standard 25 Way Straight Through Hole Connector designed for robust electronic and electrical applications. It features a 2.76 mm pitch and an M3 threaded insert for mounting, providing reliable mechanical stability and electrical continuity.
This connector supports a current capacity of 6A and a voltage rating of up to 1 kV, making it suitable for demanding power and signal transmission tasks in industrial environments. The metal housing and copper alloy contacts ensure excellent durability, corrosion resistance, and conductivity.
Operating temperature limits from -55°C to 125°C allow this connector to perform reliably in harsh conditions. Its solder termination type ensures secure contact with PCB pads, ideal for through-hole assembly techniques.
The 25-contact female connector is designed with a straight orientation, facilitating easy PCB integration. This product complies with MIL-C-24308, DIN 41652, and CECC 75301-802 standards, confirming its suitability for professional electronics manufacturing and repair.
Features 25 contacts ensuring secure electrical connections. Supports a current rating of 6A for efficient power handling. Designed with a straight orientation for through-hole PCB mounting. Equipped with M3 threaded insert mounting hardware for stable installation.
Constructed with metal housing and copper alloy contacts for durability. Rated for voltage up to 1 kV for safe operation. Operates reliably from -55°C to 125°C temperature range. Contact pitch measures 2.76 mm, compliant with D-Sub Standard series.
Termination type is solder compatible for secure connections. Manufactured in Switzerland, assuring high quality standards.
This HARTING D-Sub Connector is ideal for industrial electronics, communication equipment, manufacturing automation, and other demanding applications requiring durable, precise connectors.
Explore the wider HARTING range of connectors and power solutions at EnvMart for comprehensive electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 6A for efficient power handling.
It is rated for a voltage of up to 1 kV, ensuring safe operation in various applications.
The connector operates reliably within a temperature range of -55°C to 125°C.
This D-Sub connector features 25 contacts, providing secure electrical connections.
It is designed for through-hole PCB mounting and includes M3 threaded insert mounting hardware for stability.
The housing is constructed from metal, while the contacts are made of copper alloy, ensuring durability and conductivity.
The contact pitch measures 2.76 mm, compliant with the D-Sub Standard series.
It features a solder termination type, ensuring secure connections with PCB pads.
Yes, it is ideal for industrial electronics, communication equipment, and manufacturing automation due to its robust design.
This model complies with MIL-C-24308, DIN 41652, and CECC 75301-802 standards, confirming its suitability for professional use.
It is manufactured in Switzerland, assuring high quality standards.
This connector is a female type, designed for secure connections in electronic applications.
