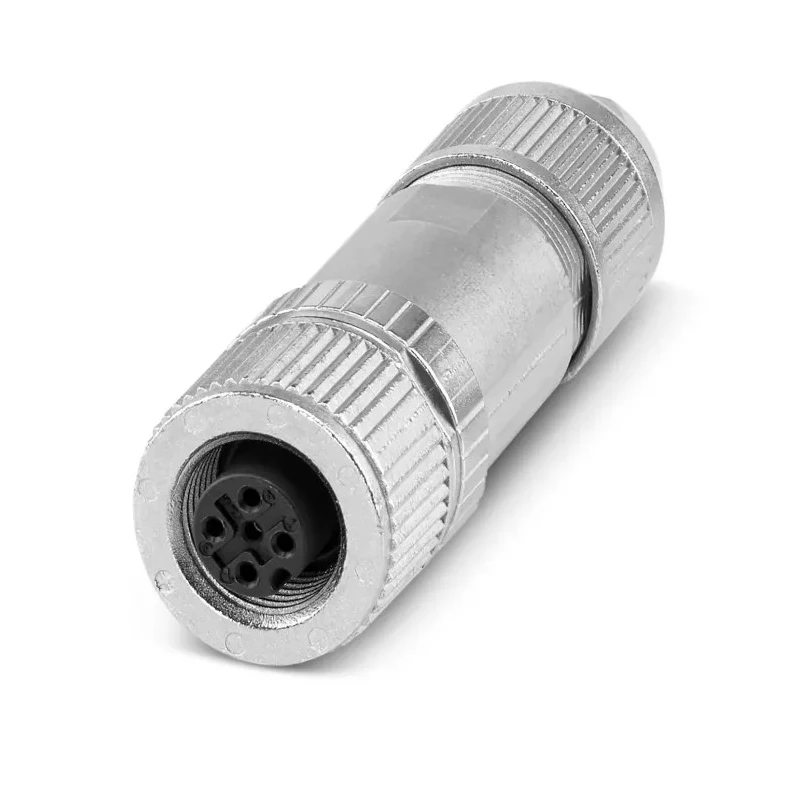

Phoenix Contact Circular Connector Cable Mount, 4 Contacts, M12 Socket Female, IP65/IP67, SACC Series 1424700
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 48, 60V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 4A |
| Model | 1424700 |
| IP Rating | IP65, IP67 |
| Mount Type | Cable |
| Housing Material | Zinc |
| Contact Material | Copper |
| Series | SACC |
| Termination Type | Push-in |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 4 |
| Contact Plating | Nickel over Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | SW13, SW16 |
| Mating Type | A Coded |
| Connector Size | M12 |
| Plug/Socket | Socket |
| Coding | A |
| Flexible | connectors for on-site assembly |
Key Features
- Constructed with zinc die-cast housing, ensuring robust and corrosion-resistant performance.
- Features a push-in termination type allowing quick and easy tool-free wiring.
- Operates reliably at voltages of 48 to 60 volts and a current rating of 4 amps.
- A-coded straight orientation with a screw locking mechanism provides secure and reliable connections.
- Nickel over gold plating on copper contacts ensures excellent conductivity and durability.
- Engineered for operating temperatures from -40°C to 85°C for broad environmental applications.
- Compatible with cables having external diameters between 4 mm and 8 mm.
- Designed for flexible on-site assembly using the SPEEDCON fast locking system.
Product Description
Phoenix Contact 1424700 is a high-quality circular connector designed for cable mounting applications with 4 female contacts. It belongs to the SACC series, providing a rugged solution tailored for industrial uses that require reliable connectivity under harsh conditions.
The connector features a zinc die-cast housing with nickel plating, offering excellent corrosion resistance and mechanical strength. Its push-in termination technology enables quick, tool-free wiring and a secure screw locking mechanism ensures stable connections.
Operating at voltages between 48 to 60 volts and supporting currents of up to 4 amps, this connector is A-coded with a straight orientation ideal for various industrial, manufacturing, and automation control systems.
Its IP65 and IP67 protection ratings provide dust-tight and water ingress protection, making it suitable for environments exposed to moisture and contaminants. With an operating temperature range from -40°C to 85°C, it performs reliably in extreme temperature conditions.
This connector is compatible with cables of 4 mm to 8 mm diameter, and supports flexible on-site assembly through a user-friendly SPEEDCON fast locking system, reducing installation time and effort.
Applications of this connector include industrial circular connector setups, automation equipment, control gear interconnects, and power distribution systems in commercial and industrial settings.
Constructed with zinc die-cast housing and nickel plating for durability. Push-in termination allows efficient and tool-free wiring. Voltage rating of 48-60 V and a current rating of 4 A for robust performance. Straight, A-coded orientation with screw locking for secure connections.
Contact plating includes nickel over gold on copper material for conductivity. IP65, IP67 rated, ensuring protection against dust and water ingress. Temperature operability from -40°C to 85°C suits harsh environments. Flexible assembly and quick installation with SPEEDCON fast locking system.
Suitable for cables with diameter from 4 mm to 8 mm.
Explore the wide range of Phoenix Contact Industrial Circular Connectors available at EnvMart for reliable and high-performance connectivity solutions tailored to your engineering and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at voltages of 48 to 60 volts and has a current rating of 4 amps.
This connector has IP65 and IP67 ratings, providing dust-tight and water ingress protection.
It operates reliably within a temperature range of -40°C to 85°C.
It features a push-in termination type, allowing for quick and tool-free wiring.
This model has 4 female contacts and is A-coded with a straight orientation.
The housing is constructed from zinc die-cast, ensuring corrosion resistance and mechanical strength.
It is compatible with cables that have external diameters between 4 mm and 8 mm.
The SPEEDCON fast locking system allows for flexible on-site assembly and reduces installation time and effort.
The contacts are plated with nickel over gold on copper, ensuring excellent conductivity.
It is designed for industrial circular connector setups, automation equipment, control gear interconnects, and power distribution systems.
The shell sizes for this model are SW13 and SW16.
The model number of this circular connector is 1424700.
