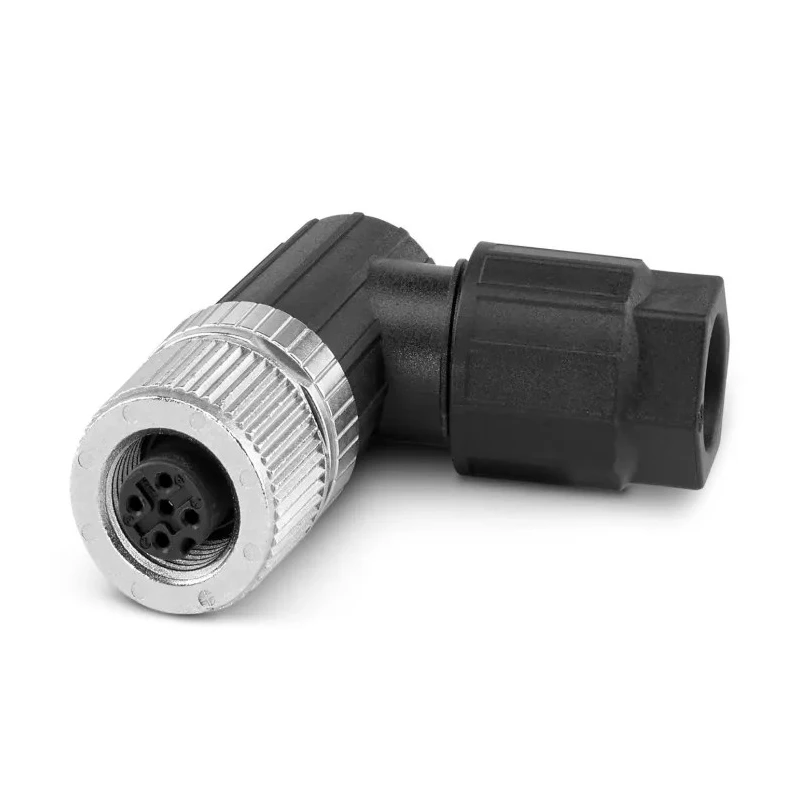

Phoenix Contact Circular Connector, 4 Contacts, Cable Mount, M12 Size, Plug Female, IP65 IP67 Rated, SACC Series 1424656

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Circular Connector, 4 Contacts, Cable Mount, M12 Size, Plug Female, IP65 IP67 Rated, SACC Series 1424656

Name: Phoenix Contact Circular Connector, 4 Contacts, Cable Mount, M12 Size, Plug Female, IP65 IP67 Rated, SACC Series 1424656
Brand: PHOENIX CONTACT
SKU: 215339
Price: 18.82 USD
Availability: InStock



Category Industrial Circular Connector Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	Phoenix Contact
Orientation	Right Angle
Current	4A
Model	1424656
IP Rating	IP65, IP67
Mount Type	Cable
Housing Material	Polymer
Contact Material	Copper
Series	SACC
Termination Type	Push-in
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Pole Format	4
Contact Plating	Nickel over Gold
Number of Contacts	4
Contact Gender	Female
Shell Size	15
Mating Type	A Coded
Connector Size	M12
Plug/Socket	Plug
Coding	A

Key Features

Designed for reliable electrical connection in industrial applications.
Rated for 250 volts and 4 amp current capacity.
Right angle orientation with push-in termination type for easy installation.
Constructed from polymer housing for durability and flame-retardant performance.
Contact plating uses nickel over gold to ensure enhanced conductivity and corrosion resistance.
Suitable for operating temperatures from -40°C to 85°C.
Meets DIN EN 45545-2 fire protection standards suitable for railway applications.

Product Description

Phoenix Contact 1424656 Circular Connector is a high-quality industrial cable-mount plug connector featuring 4 female contacts and an M12 size, rated for 250 volts and 4 amps nominal current. Its right angle orientation and push-in termination enable fast and secure connections without special tools.

The connector housing is made of durable polymer with a UL 94 V0 flammability rating, contributing to workplace fire safety. Contact materials consist of copper with nickel over gold plating, ensuring excellent signal transfer and corrosion resistance over long-term use.

Designed to withstand harsh environments, this connector has an IP65 and IP67 rating, making it dustproof and suitable for temporary submersion in water up to 1 meter for 30 minutes. It operates reliably between -40°C and 85°C, making it fit for demanding industrial settings.

Compliance with DIN EN 45545-2 confirms its suitability for fire protection in railway industry applications. The push-in termination supports conductor cross-sections from 0.08 to 0.75 mm² (equivalent to 28 to 18 AWG cables), allowing versatile integration with common wiring.

Reliable Industrial Circular Connector for sensor and actuator connections. High-quality push-lock connection to reduce assembly time. Robust polymer housing with flame-retardant properties. IP65 and IP67 ingress protection for harsh environments.

Contact plating ensures superior conductivity and durability. Wide temperature operating range for diverse applications. Complies with railway sector fire protection standards.

This circular connector fits perfectly for industrial, manufacturing, automation, and railway electrical systems requiring durable, reliable, and safe connections. Explore more high-performance connectors in the Electronics & Electricals category at EnvMart.
