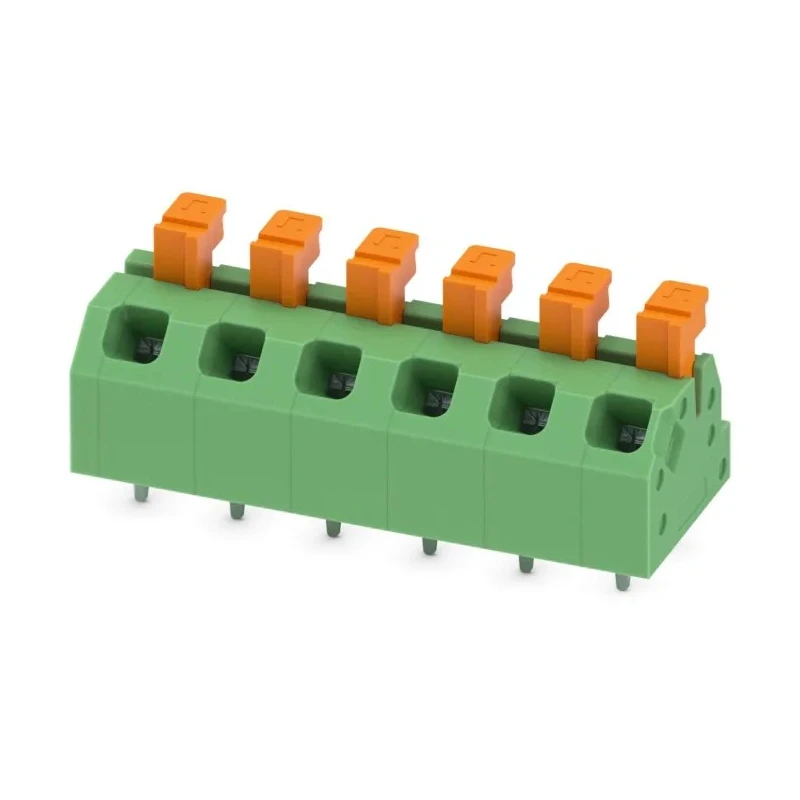

Phoenix Contact SPTAF 1/ 6-5.0-LL Series Angled PCB Terminal Block 6 Contacts 5 mm Pitch 320 V 13.5 A 1864477
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 13.5A |
| Model | 1864477 |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 6-5.0-LL |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | UL Recognised, EU RoHS, cULus Recognised |
| Number of Contacts | 6 |
| PCB Terminal block, nominal current | 13.5 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 6, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- The terminal block supports a nominal current of 13.5 A at 320 V nominal voltage.
- Constructed with durable polyamide housing for enhanced insulation and robustness.
- Features a compact design with one row and 6 position contacts for efficient PCB space utilization.
- Equipped with a finger-operated release button for user-friendly operation without tools.
- Offers quick and easy connection with integrated test points for convenient inspection.
- Designed for wave soldering mounting and conductor/PCB connection directed at 45° angle.
- Certified and approved under UL Recognised, EU RoHS compliant, and cULus Recognised standards.
- Manufactured in Germany ensuring high quality and reliability.
Product Description
Phoenix Contact 1864477 is an angled PCB terminal block from the SPTAF 1/ 6-5.0-LL Series, designed with 6 contact positions and a 5 mm pitch. It supports a nominal current rating of 13.5 A and a nominal voltage rating of up to 320 V. The terminal block features push-in spring connection technology, enabling quick and tool-free wiring, while the finger-operated release button ensures ease of disconnection during maintenance.
The robust polyamide housing offers excellent electrical insulation and mechanical stability, making this terminal block suitable for use in industrial control systems, electronic devices, and power connectors. The 45° orientation of conductor/PCB connection facilitates flexible PCB layout and assembly for space-constrained applications.
Installation is streamlined using wave soldering techniques, and integrated test points allow convenient testing without disconnecting the wires. The product complies with international standards including UL Recognised, cULus Recognised, and EU RoHS, ensuring safety and environmental compliance.
This PCB terminal block is ideal for industrial manufacturing, automation systems, electronic equipment, and other commercial or laboratory applications requiring reliable and compact PCB connections. The green color coding aids easy identification on the PCB.
The terminal block supports a nominal current of 13.5 A at 320 V nominal voltage. Durable polyamide housing for strong insulation and robustness. Compact size with 6 contacts in a single-row, 5 mm pitch configuration. Push-in spring connection with finger-operated release button for easy wiring and maintenance.
Supports wave soldering assembly methods and has a 45° conductor to PCB orientation. Includes integrated test points enabling quick electrical testing without wire removal. Certified UL Recognised, cULus Recognised, and compliant with EU RoHS standards.
Manufactured in Germany ensuring top quality and performance. Explore more from the Phoenix Contact brand and related PCB Terminal Blocks in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a nominal current of 13.5 A and a nominal voltage of 320 V.
This terminal block features a 5 mm pitch and has 6 contact positions in a single row.
It utilizes a push-in spring connection method, allowing for quick and tool-free wiring.
The conductor to PCB connection is oriented at a 45° angle, facilitating flexible PCB layout.
The housing is constructed from durable polyamide, providing excellent electrical insulation and mechanical stability.
It is designed for wave soldering mounting, making installation streamlined for PCB assembly.
It is certified under UL Recognised, cULus Recognised, and complies with EU RoHS standards.
It is manufactured in Germany, ensuring high quality and reliability.
Yes, it includes integrated test points that allow for convenient electrical testing without disconnecting the wires.
The terminal block is color-coded green for easy identification on the PCB.
It is suitable for use in industrial control systems, electronic devices, and power connectors.
The finger-operated release button allows for easy disconnection during maintenance without the need for tools.
