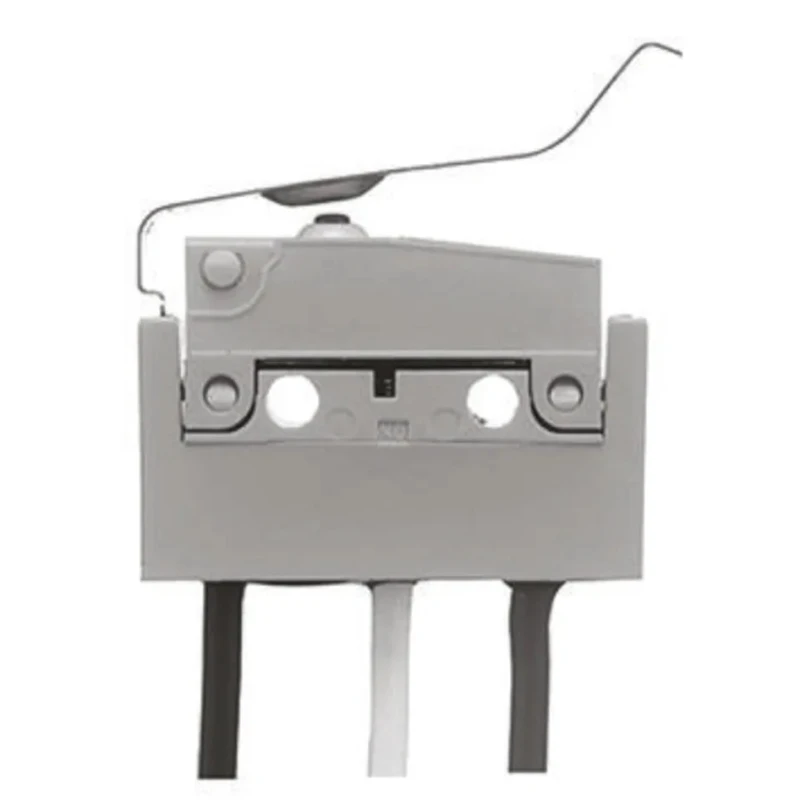

Panasonic Leaf Lever Micro Switch, Pre-Wired Terminal, 2A, 250 V ac, 30 V dc, SPCO, IP67 ABS161840
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Model | ABS161840 |
| IP Rating | IP67 |
| Width | 6.4mm |
| Housing Material | ABS |
| Series | ABS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Leaf Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Pre-Wired |
| Standards/Approvals | RoHS, cURus, VDE |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 2A |
| Operating Force | 0.88N |
| Mechanical Life | 500000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- This subminiature micro switch has a compact size of 19.8 x 11.1 x 6.4 mm, suitable for space-constrained installations.
- The housing is made of durable ABS material providing excellent resistance against environmental factors.
- It features a sealed construction with IP67 rating ensuring protection against dust and water ingress.
- The switch uses a Single Pole Change Over (SPCO) contact configuration for reliable electrical switching.
- Operating force is low at 0.88N, enabling sensitive actuation with a leaf lever actuator type.
- Designed to operate in temperature ranges from -40°C to 85°C for versatile environmental conditions.
- Mechanical life expectancy is rated at 500,000 operations for long-lasting use.
- It complies with industry standards including RoHS, cURus, and VDE ensuring quality and safety.
Product Description
Panasonic ABS161840 Leaf Lever Micro Switch is a subminiature sealed micro switch designed for use in home appliances, automotive electrical systems, and industrial applications requiring compact and reliable switching components. This micro switch operates at 2A contact current, supports up to 250 V AC and 30 V DC contact voltage, and features a Single Pole Change Over (SPCO) contact configuration, offering flexibility for electrical control circuits.
The switch housing is manufactured from robust ABS material with elastomer double moulding and ultrasonic swaging technology enhancing its sealed construction, resulting in an IP67 rating that protects against dust and water ingress. This ensures enhanced durability and environmental resistance for demanding applications.
With the compact dimensions of 19.8 x 11.1 x 6.4 mm, this subminiature switch fits in tight spaces without compromising performance. Its leaf lever actuator type and low operating force of 0.88N facilitate sensitive switching activation. The switch is rated for mechanical endurance up to 500,000 operations, promising reliable long-term service.
Designed for operation in temperature ranges from -40°C to 85°C, this micro switch meets diverse environmental requirements. It is compliant with RoHS, cURus, and VDE certifications reflecting adherence to international safety and quality standards. The product is made in Japan, ensuring high manufacturing quality.
Compact sealed subminiature micro switch design for space-limited applications. Robust ABS housing with advanced sealing technologies for IP67 protection. Pre-wired terminal type enables easy and secure electrical connections.
Suitable for home appliances, automotive, and industrial control circuits. High mechanical life with 500,000 operation durability rating. Operates reliably between -40°C and 85°C temperature range. Complies with key safety standards including RoHS, cURus, and VDE.
Manufactured in Japan ensuring rigorous quality control. Discover more high-quality Micro Switches and electrical components at EnvMart, tailored for electrical, automation, industrial, and automotive electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact voltage for this model is 250 V AC and 30 V DC.
It operates reliably within a temperature range of -40°C to 85°C.
This micro switch features a leaf lever actuator type, which allows for sensitive actuation.
The mechanical life expectancy is rated at 500,000 operations, ensuring long-lasting use.
This model has an IP67 rating, providing protection against dust and water ingress.
The housing is made of durable ABS material, enhancing its environmental resistance.
It features a Single Pole Change Over (SPCO) contact configuration for flexible electrical control.
The operating force is low at 0.88N, facilitating sensitive switching activation.
This model uses a pre-wired terminal type for easy and secure electrical connections.
It complies with RoHS, cURus, and VDE standards, ensuring quality and safety.
The dimensions of this subminiature switch are 19.8 x 11.1 x 6.4 mm, making it suitable for space-constrained installations.
This micro switch is manufactured in Japan, ensuring high manufacturing quality.
