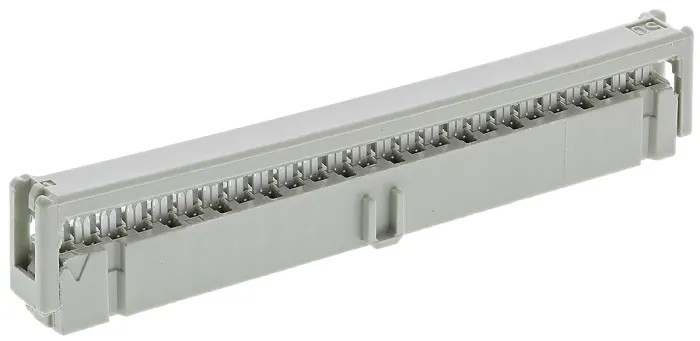

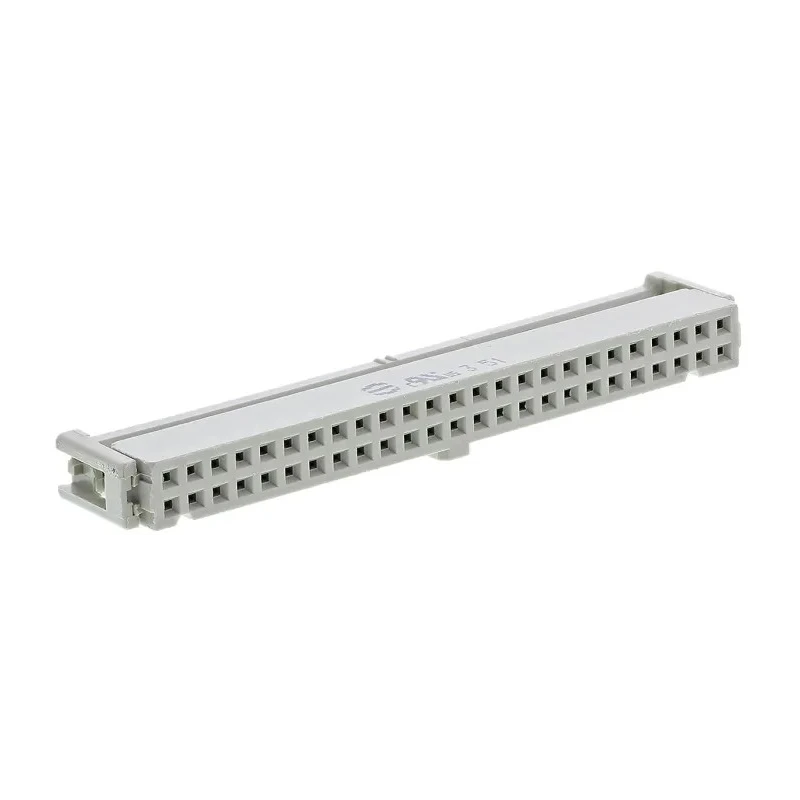

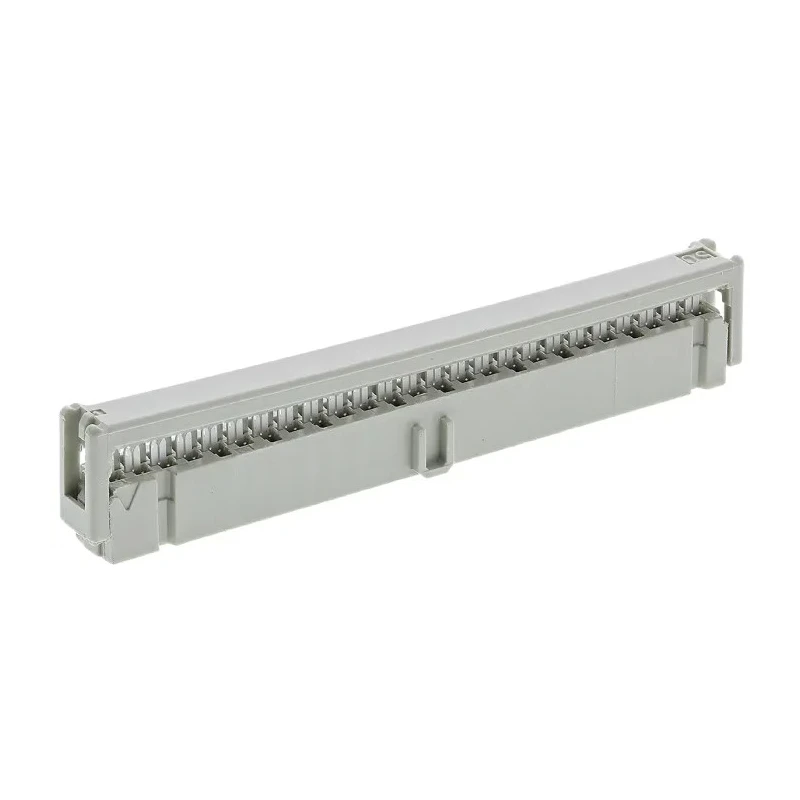

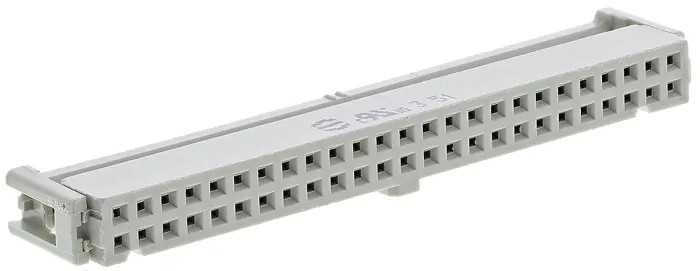

HARTING 50-Way 2 Row Female IDC Connector for Cable 2.5A 320V AC Gold Plated Contacts SEK 18 Series 09185507813
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 320V ac |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2.5A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features 50 contacts arranged in 2 rows perfectly suited for cable mounting.
- Gold plated copper alloy contacts provide reliable electrical connection.
- Shrouded connector design ensures secure mating and protection.
- Supports operation from -55°C to 125°C for demanding environments.
- Right angle orientation fits space-constrained layouts efficiently.
- Termination via insulation displacement contact (IDC) technology.
- Compliance to IEC 60 603-13 standards with SEK 18 series system.
- Housing made of durable polybutylene terephthalate for mechanical strength.
Product Description
HARTING 09185507813 is a high-quality 50-Way Female IDC Connector designed for cable mounting in industrial and electronics components applications. It features a 2-row contact arrangement, supporting up to 2.5 amperes current and 320 volts AC voltage rating, suitable for diverse electrical interconnection tasks.
The connector uses copper alloy contacts plated with gold, ensuring excellent conductivity and corrosion resistance. Its shrouded design provides physical protection and reliable mating when connected.
Operating reliably in harsh conditions, it withstands temperatures ranging from -55°C to 125°C, making it suitable for environments with wide temperature fluctuations. The right angle orientation aids in efficient space utilization on assemblies.
This connector employs insulation displacement contact (IDC) technology for fast and secure termination, streamlining manufacturing processes. It complies with IEC 60 603-13 standards, adhering to industry safety and performance norms within the SEK 18 series connector family.
The housing is constructed from polybutylene terephthalate, offering mechanical robustness and chemical resistance for lasting durability in electronic assemblies. Features 50 contacts arranged in 2 rows for complex wiring layouts.
Gold plated copper alloy contacts for signal integrity and durability. Shrouded design for protection and secure mating. Operating temperature range from -55°C up to 125°C. Right angle configuration for compact PCB designs.
IDC termination type for efficient mass termination. Compliant with IEC 60 603-13 standards. Robust polybutylene terephthalate housing material. Origin manufacturing country is Romania.
This connector is widely used in electronic manufacturing, power and signal distribution applications where reliable, high-density cable terminations are critical. It is also suited for industrial automation, control systems, and electronic test equipment.
Explore more connectors and related electronic components in the EnvMart catalog tailored for professional electronics, electrical, and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 2.5 amperes.
The voltage rating is 320 volts AC.
It operates reliably within a temperature range of -55°C to 125°C.
This connector features 50 contacts arranged in 2 rows.
It employs insulation displacement contact (IDC) technology for termination.
The contacts are made of copper alloy and are gold plated for improved conductivity and corrosion resistance.
The housing is constructed from polybutylene terephthalate, providing mechanical strength and chemical resistance.
It features a right angle orientation, which is suitable for space-constrained layouts.
Yes, it complies with IEC 60 603-13 standards.
It is widely used in electronic manufacturing, power and signal distribution, industrial automation, and control systems.
The pitch of the contacts is 2.54mm.
The country of origin for this connector is Romania.
