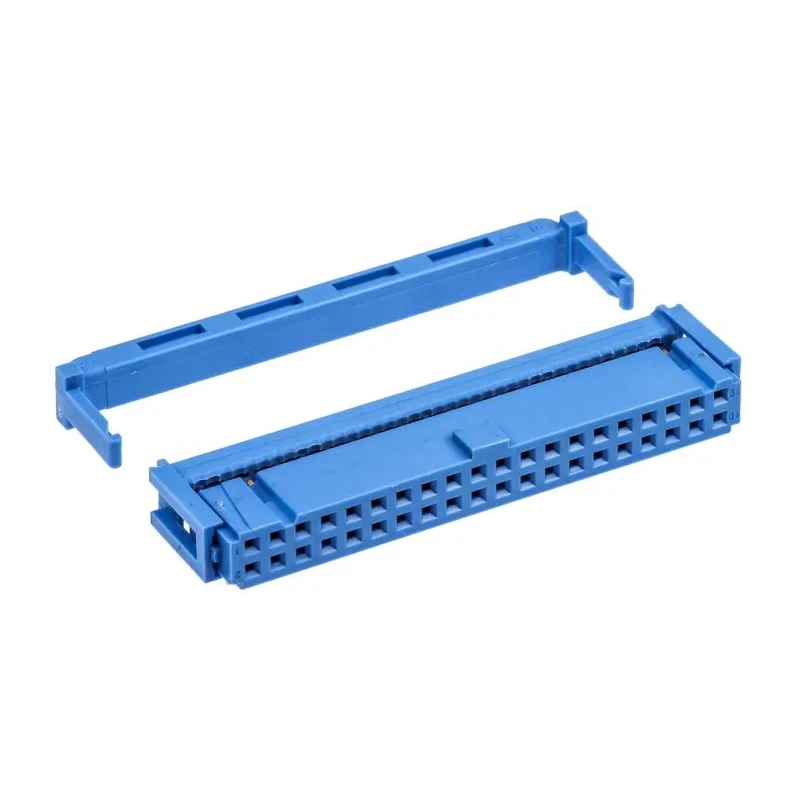

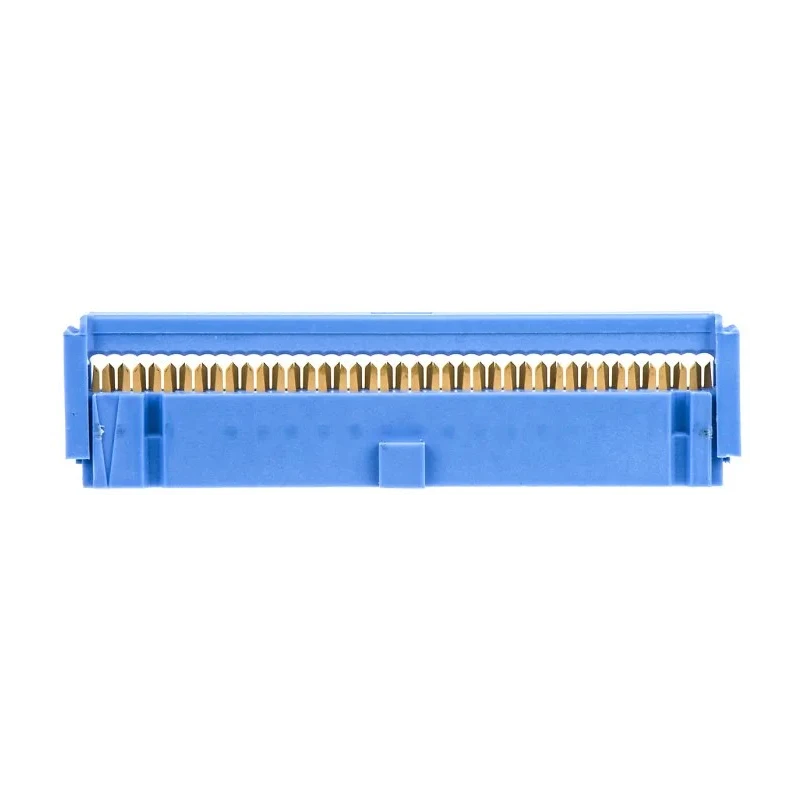

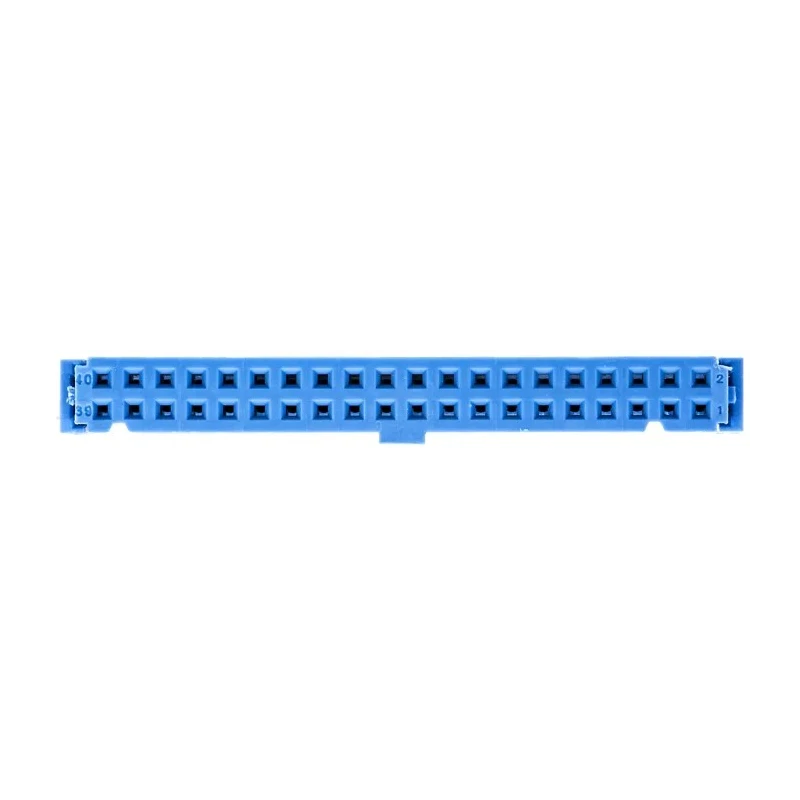

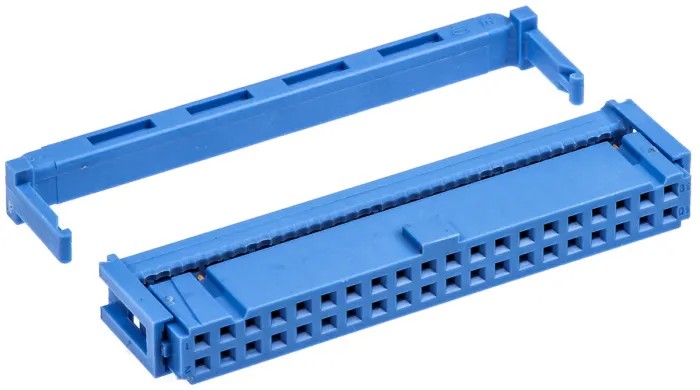

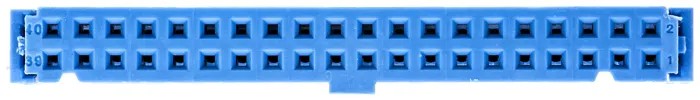

TE Connectivity 40-Way 2 Row Shrouded Female IDC Connector for Cable, 250V 1A Gold Over Nickel Plating 1-1658527-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper Alloy |
| Series | AMP-LATCH 622 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Constructed with beryllium copper alloy contacts plated with gold over nickel for reliable conductivity.
- Housing made from UL 94V-0 rated thermoplastic offering durability and safety.
- Features a 2.54mm pitch with right angle orientation suitable for compact cable routing.
- Operates reliably in temperature range from -55°C to 125°C.
- Termination type is Insulation Displacement Contact (IDC) for quick and secure wire connections.
- Compatible with 26-28 AWG or stranded PVC insulated ribbon cable.
- Connector series is AMP-LATCH 622 offering secure latching and polarization.
- Connector is shrouded and female gender for cable-side connections.
Product Description
TE Connectivity 1-1658527-3 is a 40-way, 2 row, shrouded female IDC connector engineered for reliable cable assemblies in electronic applications. Rated for 250V and 1A current, this connector ensures stable electrical contact with gold over nickel-plated beryllium copper alloy contacts. The housing is constructed from glass-filled thermoplastic that meets UL 94V-0 flammability standards, ensuring durability and safety during operation.
The connector’s 2.54 mm pitch and right angle orientation provide optimal space management within complex electronic devices. Its IDC (Insulation Displacement Contact) termination type enables fast and dependable wire connections compatible with 26-28 AWG or stranded PVC insulated ribbon cables. The AMP-LATCH 622 series adds secure latching and center polarization features, preventing mis-mating and enhancing assembly integrity.
Operating temperature range spans from -55°C to 125°C, making it suitable for various industrial environments including telecommunications, computing equipment, automotive electronics, and industrial control systems. This connector is designed without specific certifications but adheres to the IDC standard DIN-41651, assuring compatibility across systems.
Constructed with beryllium copper alloy contacts plated with gold over nickel for enhanced conductivity and corrosion resistance. Thermoplastic housing rated UL 94V-0 for flame retardance and mechanical strength. Compatible with 26-28 AWG ribbon cables using IDC termination style for quick assembly.
Right angle orientation facilitates compact wiring layouts and reduces stress on cables. Works across wide temperature ranges from extreme cold to hot operating conditions. Series AMP-LATCH 622 provides a secure locking mechanism to prevent accidental disconnection.
Ideal for industrial, telecommunications, computing, and automotive electronics.
This product is part of EnvMart’s Electronics Components catalog, ideal for professionals requiring high-reliability IDC connectors for cable assemblies. Explore more TE Connectivity connectors and accessories in the IDC Connector category to fulfill diverse application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 250V.
It has a current capacity of 1A.
This model utilizes Insulation Displacement Contact (IDC) termination for quick and secure wire connections.
It operates reliably within a temperature range of -55°C to 125°C.
The connector features a pitch of 2.54mm.
This IDC connector has 40 contacts.
The contacts are made from beryllium copper alloy, plated with gold over nickel, while the housing is constructed from thermoplastic material.
This model has a right angle orientation, which is suitable for compact cable routing.
Yes, it is compatible with 26-28 AWG or stranded PVC insulated ribbon cables.
This connector is part of the AMP-LATCH 622 series, which provides secure latching and polarization features.
The housing material meets UL 94V-0 flammability standards, ensuring durability and safety during operation.
It is suitable for various industrial environments, including telecommunications, computing equipment, automotive electronics, and industrial control systems.
