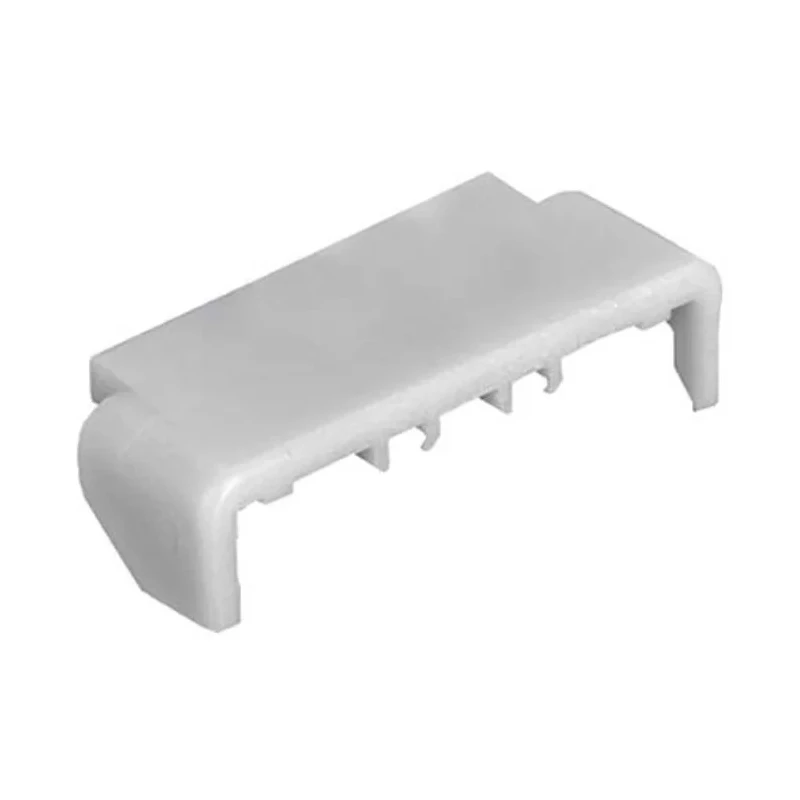

Molex Terminal Position Assurance for Micro-Fit TPA Receptacle Housing with 30 AWG Min Crimp, 20 AWG Max, 10A 172953-1201

The Molex 172953-1201 Terminal Position Assurance (TPA) is designed specifically for use with the Micro-Fit TPA Receptacle Housing Low Halogen 172952, providing an integrated secondary lock to prevent terminal backouts from improper assembly. This ensures the integrity of electrical connections in demanding environments.

Constructed using phosphor bronze copper alloy, the contacts are plated with gold or tin to deliver reliable conductivity and corrosion resistance. The TPA supports wire sizes ranging from a minimum of 30 AWG to a maximum of 20 AWG suitable for crimping applications. It is rated for a continuous current load of up to 10A, making it ideal for various electronics and electrical applications.

This component is designed to operate efficiently across a broad temperature range from -40°C up to 105°C, ensuring functionality in harsh industrial, laboratory, and manufacturing environments. The crimp termination type enables secure wire connections reducing failures associated with loose wiring. The Molex 172953 series TPA products are a dependable choice for ensuring correct terminal positioning in electronic assemblies.

Manufactured in China, this terminal position assurance device complements coil terminals and connector housings used in industrial automation, electrical equipment, and electronic circuitry. Its precise engineering supports reliable power conduction and long operational life in a compact format, aligning with industry needs for safety and performance.

Suitable for use with Micro-Fit TPA Receptacle Housing Low Halogen 172952. Supports wire sizes from 30 AWG minimum to 20 AWG maximum for crimping. Rated for continuous current up to 10 amperes. Constructed with phosphor bronze copper alloy and plated with gold or tin for durability.

Operates reliably in temperatures ranging from -40°C to 105°C. Features a crimp termination type to ensure secure wire connection. Designed as part of the Molex 172953 series for consistent quality and compatibility. Manufactured in China with no specific standards or approvals stated.
