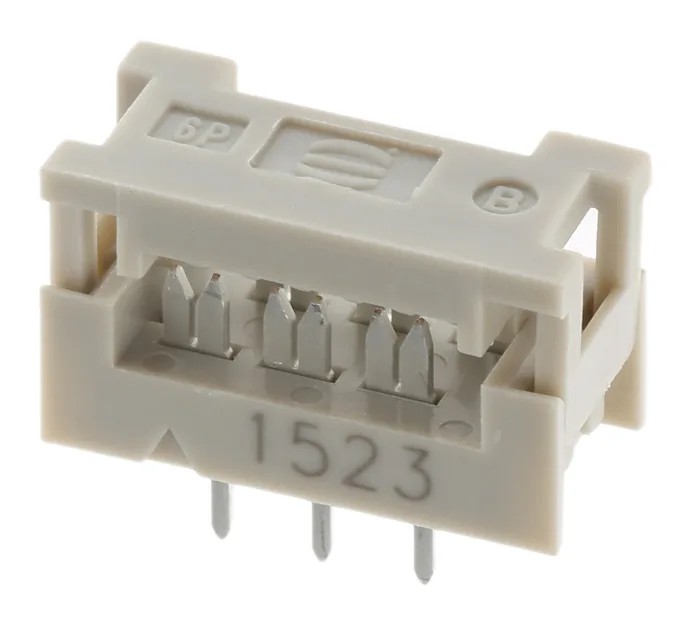

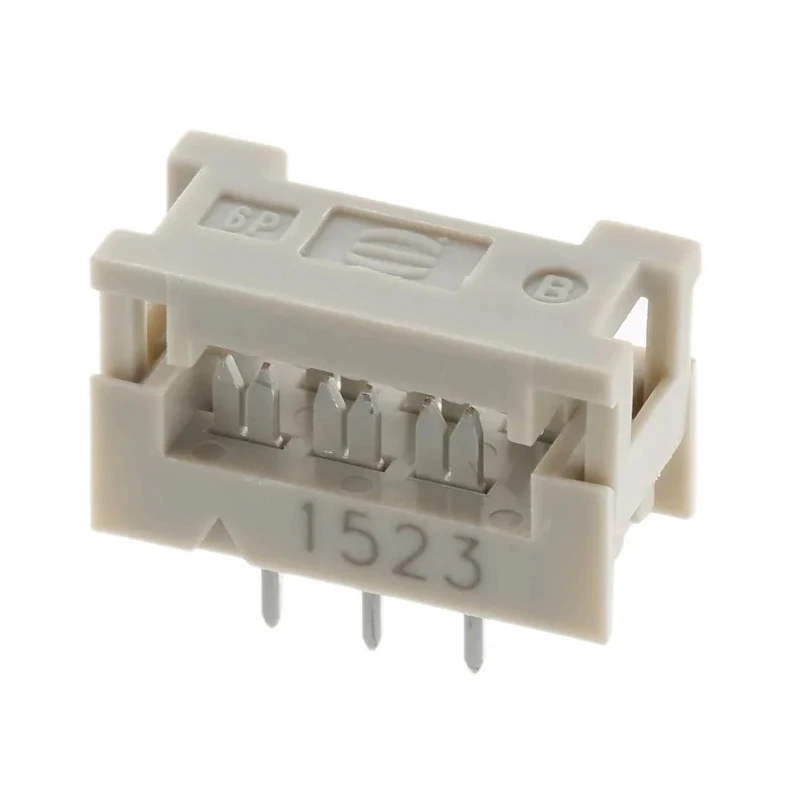

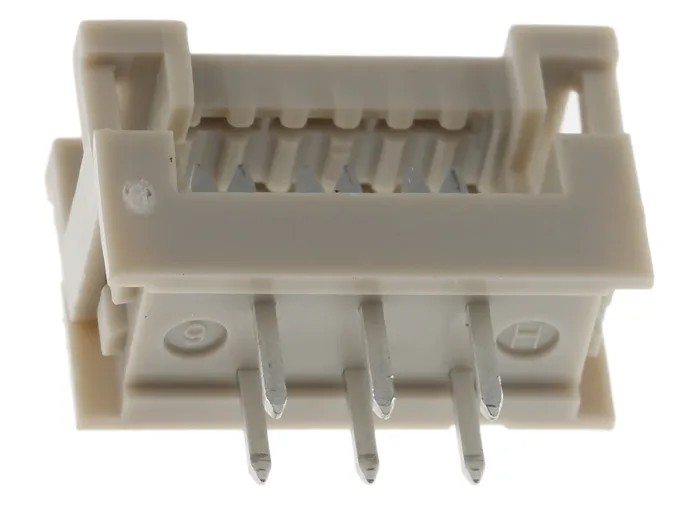

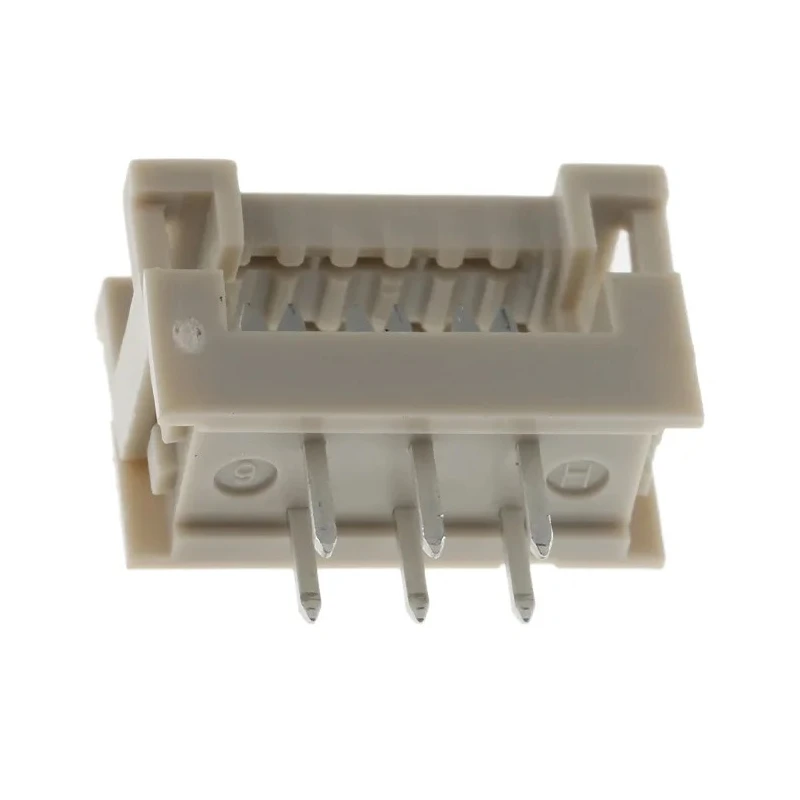

HARTING 6-Way IDC Connector Male for Through Hole, 2 Row 320V AC, 1A Current, Tin Plated Contacts 09181069622

HARTING 09181069622 6-Way IDC Connector Male for Through Hole, 2 Row is a high-quality electronic component designed for reliable PCB connections in various industrial and commercial applications. Operating at 320V AC and supporting 1A of current, it is ideal for signal and power transmission in compact circuit board designs.

This IDC connector features 6 contacts arranged over 2 rows, with a standard 2.54mm pitch between the pins ensuring compatibility with a wide range of PCB layouts. The connector’s tin-plated contacts enhance electrical conductivity and protect against corrosion, while the copper alloy contact material provides mechanical durability.

The housing material is Polybutylene Terephthalate, offering robust thermal and mechanical resistance. This component is designed for through-hole mounting with solder termination, simplifying installation and ensuring secure placement on the PCB.

With a temperature operating range from -55°C to 105°C, it suits demanding environments and industrial processes, including automation, control systems, and electronic manufacturing. Its shrouded male connector design reduces the risk of accidental shorts and physical damage.

The SEK 18 series represents a trusted line within HARTING’s portfolio, known for quality and longevity. This connector is manufactured in China following industrial standards, allowing integration into various electronic assemblies requiring stable and precise connector solutions.

The connector features 6 contacts arranged in 2 rows for efficient PCB transition. It has a straight orientation with a pitch of 2.54mm between pins. Contacts are tin plated for reliable signal transmission and corrosion resistance.

The housing is made of durable Polybutylene Terephthalate material. Suitable for solder termination via through-hole mounting. Designed to operate within a temperature range of -55°C to 105°C. The series is SEK 18, with a shrouded male connector type.

Ideal for electronic, power, and signal connector applications on PCB assemblies. Manufactured using copper alloy contact material for longevity and performance. This connector is made in China and meets industrial quality standards.

This HARTING IDC connector offers a reliable, compact solution for electrical connections in industrial, electronic, manufacturing, and laboratory environments. Explore more connectors and related components in the Electronics & Electricals Connectors category on EnvMart.
