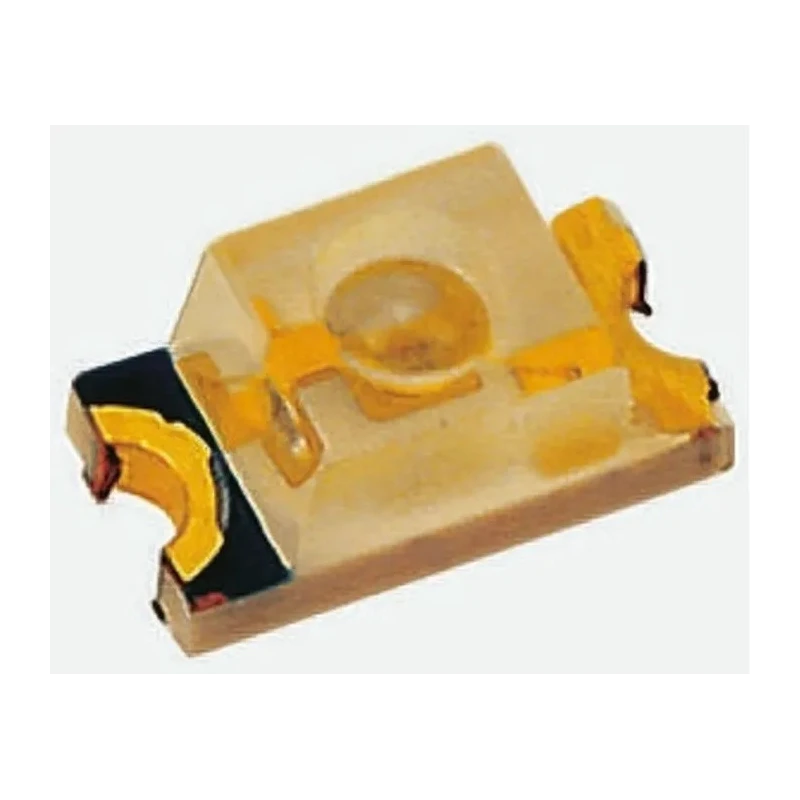

Lite-On 3.8 V Green LED 3016 Surface Mount CHIP LED 1206 LTST-C21TGKT

Free Delivery in India | Lowest Global Shipping Charges

Lite-On 3.8 V Green LED 3016 Surface Mount CHIP LED 1206 LTST-C21TGKT

Name: Lite-On 3.8 V Green LED 3016 Surface Mount CHIP LED 1206 LTST-C21TGKT
Brand: Lite-On
SKU: 212985



Category LED - Light Emitting Diodes Brand Lite-On Condition New

Specifications

Country of Origin	China
Brand	Lite-On
Model	LTST-C21TGKT
Mount Type	Surface
Series	CHIP LED 1206
Maximum forward current	20mA
Viewing angle	70 °
Package Type	3016
Standards/Approvals	RoHS, ANSI/EIA 481-1-A-1994
LED Colour	Green
Dominant Wavelength	525nm
Forward Voltage	3.8V
Number of Pins	2
LED Luminosity	180.0 to 1120.0 mcd
Maximum Power Dissipation	76mW
Lens Dimensions	3.2 x 1.6 mm
Lens Shape	Round

Key Features

Operates at a forward voltage of 3.8 volts.
Maximum forward current is 20 mA ensuring low power consumption.
Compact 3016 (1206) SMT package measuring 3.2 x 1.6 mm.
Provides a wide viewing angle of 70 degrees for enhanced visibility.
LED luminosity ranges from 180 to 1120 millicandela for brightness versatility.
Round lens shape with clear finish for focused light emission.
Features 2 pins for surface mounting on PCBs.
Complies with RoHS and ANSI/EIA 481-1-A-1994 standards.

Product Description

Lite-On LTST-C21TGKT 3.8 V Green LED 3016 Surface Mount CHIP LED 1206 is an advanced surface mount device designed for efficient and reliable light emission in electronic components.

This LED comes in a compact 3016 package size of 3.2 x 1.6 mm making it ideal for miniature optical indicators and display backlighting applications.

Operating at a forward voltage of 3.8 V and a maximum forward current of 20 mA, it ensures low power consumption while delivering bright luminosity ranging from 180 to 1120 mcd, suitable for various signal and lighting requirements.

The 70-degree viewing angle and round, clear lens finish provide focused, consistent illumination enhancing visibility in industrial, commercial, laboratory, and electronic manufacturing contexts.

The LED is equipped with 2 pins for secure surface mounting, compatible with all standard SMT assembly methods including IR reflow soldering. This product complies with RoHS environmental standards and ANSI/EIA 481-1-A-1994 mechanical packaging requirements, ensuring industry-wide compatibility and safety.

Ideal for applications such as optical indicators, display backlighting, floor marker lighting, and toys, this green LED provides reliable performance in a compact form factor. Operates at 3.8 volts forward voltage and maximum 20 mA current.

Compact 3016 package with dimensions 3.2 x 1.6 mm. Wide 70-degree viewing angle with clear round lens. Brightness range from 180 to 1120 millicandela. Two-pin surface mount design supporting SMT assembly. Complies with RoHS and ANSI/EIA 481-1-A-1994 standards.

Dominant wavelength of 525 nm for green light emission. Manufactured in China. Explore more high-quality LEDs and electronic components in the Electronics & Electricals category at EnvMart.
