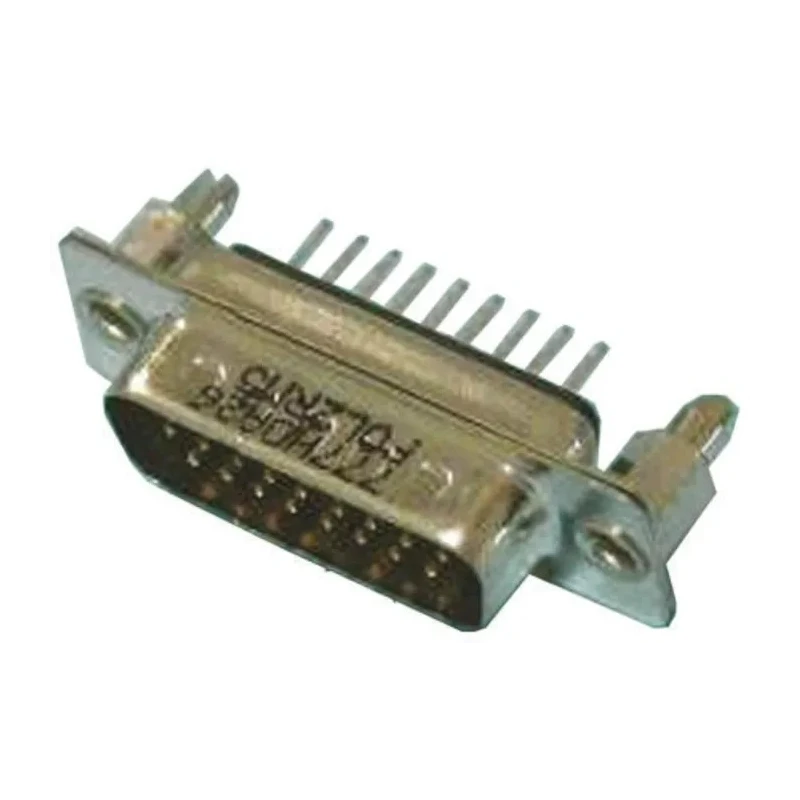

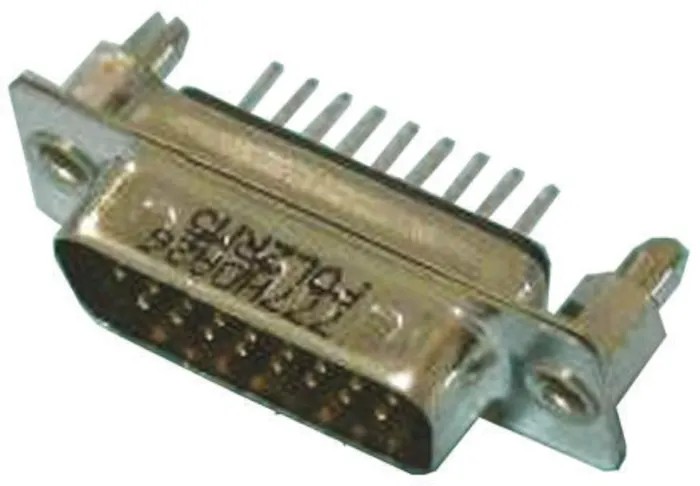

Amphenol Communications Solutions High Density 26 Way Straight Through Hole D-Sub Connector with 4 to 40 UNC Threaded L717HD
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | L717HD |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | L717HD |
| Mounting Hardware | 4 to 40 UNC Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DA-26 |
Key Features
- Supports 26 contacts with 3A current capacity for efficient signal transmission.
- Constructed with brass contact material and gold plating for enhanced conductivity and corrosion resistance.
- Features a thermoplastic housing and straight orientation for secure through-hole mounting.
- Operates within a voltage rating of 250V and temperature range from -55°C to 105°C.
- Includes 4 to 40 UNC threaded inserts for mounting hardware stability and solder termination for secure connections.
- Suitable for high density plug straight PCB applications with rear inserts.
- Designed as a male connector of D-Sub type with DA-26 shell size.
Product Description
Amphenol Communications Solutions L717HD is a high density 26 way straight through hole D-Sub Connector engineered to provide dependable and precise electrical connections in electronic and industrial applications.
This connector supports 26 contacts with a 3A current rating and 250V voltage rating, making it ideal for demanding power connector tasks. The contact material is brass with gold plating to ensure superior conductivity and corrosion resistance, backed by a durable thermoplastic housing. It features a straight orientation and through-hole mount type to facilitate stable and reliable PCB assembly.
The connector operates in a temperature range of -55°C to 105°C, suitable for varied environmental conditions. It includes 4 to 40 UNC threaded inserts for secure mounting hardware integration and uses solder termination for robust electrical contact.
Its DA-26 shell size and male connector gender define the physical interface, designed for high density plug straight PCB with rear inserts. This product originates from China and is part of the L717HD series by Amphenol Communications Solutions.
Supports 26 contacts with 3A current capacity for efficient signal transmission. Constructed with brass contact material and gold plating for enhanced conductivity and corrosion resistance. Features a thermoplastic housing and straight orientation for secure through-hole mounting.
Operates within a voltage rating of 250V and temperature range from -55°C to 105°C. Includes 4 to 40 UNC threaded inserts for mounting hardware stability and solder termination for secure connections. Suitable for high density plug straight PCB applications with rear inserts.
Designed as a male connector of D-Sub type with DA-26 shell size.
This connector is well suited for use in electronics manufacturing, communications hardware, industrial control systems, and other applications requiring reliable and precise electronic connectivity.
Browse EnvMart's extensive selection of connectors and accessories to find complementary components and enhance your electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of 3A, making it suitable for efficient signal transmission in various applications.
It operates within a voltage rating of 250V, allowing it to handle a range of electrical applications effectively.
The connector operates within a temperature range of -55°C to 105°C, suitable for diverse environmental conditions.
The contact material is brass with gold plating for enhanced conductivity and corrosion resistance, while the housing is made of thermoplastic.
It features a through-hole mount type, which facilitates secure assembly on printed circuit boards (PCBs).
This connector uses solder termination for secure electrical connections.
The connector is designed with a DA-26 shell size, which defines its physical interface.
It is designed as a male connector, suitable for various high-density applications.
Yes, it includes 4 to 40 UNC threaded inserts for stability during installation.
It is suitable for electronics manufacturing, communications hardware, and industrial control systems that require reliable connectivity.
This connector originates from China, as indicated by its country of origin.
It features a straight orientation, which is designed for secure through-hole mounting on PCBs.
