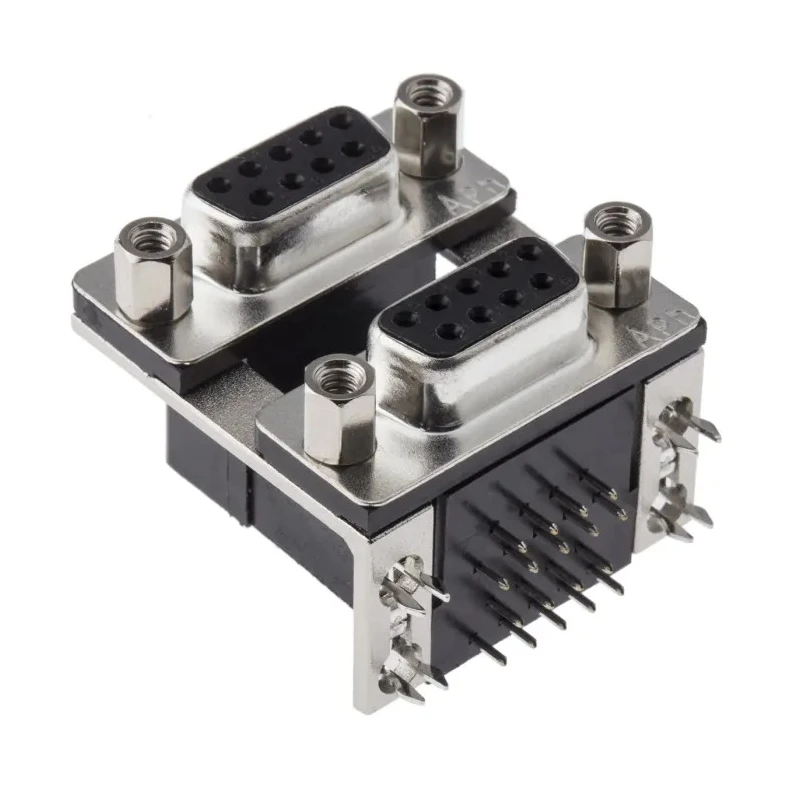

Amphenol Communications Solutions D-Sub Connector Right Angle Through Hole 250V 3A with 4 to 40 UNC Screw L17H2220131
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 3A |
| Model | L17H2220131 |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | L17H |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold over Nickel |
| Stock number 691-8831 | 9 way male d-sub on top and bottom |
| Stock number 691-8847 | 9 way female d-sub on top and bottom |
| Stock number 691-8840 | 15 way male d-sub on top and bottom |
| Stock number 691-8859 | 25 way female d-sub on top and bottom |
Key Features
- Rated for 3A current capacity.
- Housing made of durable steel ensuring long-lasting use.
- Contact material is phosphor bronze, plated with gold over nickel for excellent conductivity.
- Suitable operating temperature range from -55°C to 125°C.
- Termination by solder ensures secure connections.
- Right angle orientation facilitates compact PCB mounting.
- 2.77 mm pitch suitable for precise PCB layout requirements.
- Includes 4 to 40 UNC screw locks for secure flange mounting.
Product Description
Amphenol Communications Solutions L17H2220131 D-Sub Connector features a right angle orientation with a 2.77 mm pitch and is designed for through hole mounting applications in electronic assemblies requiring secure electrical connections.
This connector supports a current rating of 3A and voltage capacity up to 250V, making it ideal for various industrial and commercial electronic equipment.
The connector housing is constructed from steel, providing mechanical strength and durability. Contacts are made of phosphor bronze and plated with gold over nickel for superior electrical conductivity and corrosion resistance.
Its operating temperature range spans from -55°C to 125°C, accommodating harsh environmental conditions typical in industrial, laboratory, and manufacturing settings. The termination type is solder, ensuring firm and reliable attachment to printed circuit boards.
This model includes 4 to 40 UNC screw locks to securely fasten the connector flange, enhancing mechanical stability and reducing vibration effects. Rated for 3A current capacity. 250V voltage rating for reliable electrical performance.
Steel housing for mechanical strength. Gold over nickel plated phosphor bronze contacts for conductivity and durability. Operating temperature range from -55°C to 125°C. Solder termination for secure PCB connections. Right angle orientation for space-efficient mounting.
2.77 mm pitch for precise PCB design. Includes 4 to 40 UNC screw locks for flange mounting.
Manufactured in China, this connector is suitable for applications in industrial automation, electronics manufacturing, laboratory equipment, and power distribution systems requiring robust and dependable D-Sub connections.
Explore more connectors and power connector solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector is rated for a current capacity of 3A and a voltage capacity of 250V.
The housing is made of steel, while the contacts are made of phosphor bronze and plated with gold over nickel for enhanced conductivity and corrosion resistance.
It operates within a temperature range of -55°C to 125°C, making it suitable for various environments.
This connector features a through hole mounting type, which allows for secure attachment to printed circuit boards.
The pitch of this model is 2.77 mm, which is suitable for precise PCB layout requirements.
It uses solder termination, ensuring a firm and reliable attachment to the PCB.
Yes, it includes 4 to 40 UNC screw locks for secure flange mounting, enhancing mechanical stability.
This connector has a right angle orientation, which facilitates compact PCB mounting.
This model is part of the L17H series of connectors.
This D-Sub connector is manufactured in China.
It is suitable for applications in industrial automation, electronics manufacturing, laboratory equipment, and power distribution systems.
The stock number for the 9 way male D-Sub on top and bottom is 691-8831.
