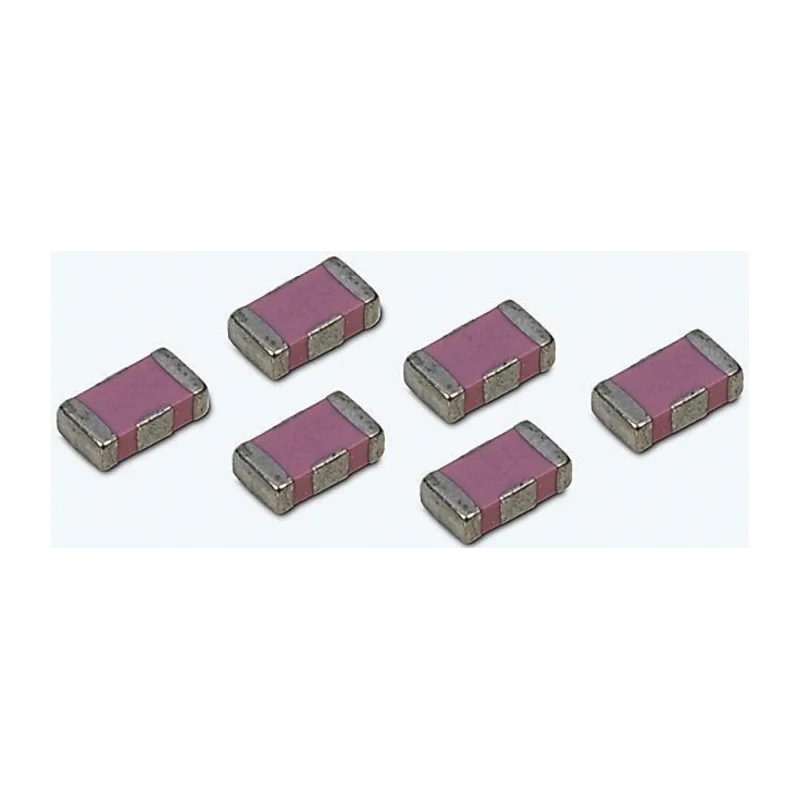

KYOCERA AVX 220 pF Multilayer Ceramic Capacitor, 100V dc, C0G Dielectric, Surface Mount 1206 Package W3F11A2218AT1A

KYOCERA AVX W3F11A2218AT1A is a Multilayer Ceramic Capacitor featuring a capacitance of 220 pF with a voltage rating of 100V dc. This component utilizes a C0G dielectric, known for its exceptional stability and low loss characteristics, making it suitable for high precision electronic circuits.

The capacitor is housed in a 1206 surface mount package, which measures 3.2 mm in length, 1.6 mm in width, and 1.27 mm in height. It supports a wide operating temperature range from -55°C to 125°C, ensuring reliable function under diverse environmental conditions. The tolerance of the capacitance is from -20 to 50 percent, allowing use in various circuit designs with flexible performance criteria.

Designed primarily for surface mount technology (SMT), the capacitor features low equivalent series resistance (ESR) and broad frequency response, which are critical for applications requiring efficient energy transfer and signal filtering. It is ideal for applications such as EMI suppression, filtering, signal conditioning, and decoupling in electronic equipment.

Supply form is by reel packaging, enabling compatibility with automated pick-and-place assembly tools to improve manufacturing efficiency. The series designation is W3F, a recognized line of high-quality capacitors by KYOCERA AVX.

Uses C0G dielectric for highly stable capacitance and minimal temperature drift. Rated for 100V dc to meet moderate voltage circuit requirements. Tolerances spanning -20 to 50% enable flexible design options. Low ESR enhances performance in high-frequency circuits.

Surface mount 1206 package supports compact and automated assembly. Wide operating temperature ensures suitability in harsh environments. Reel packaging supports efficient high volume manufacturing. Component dimensions optimized for standard SMT applications.

Ideal for EMI suppression, filtering, conditioning, and decoupling applications.

This product finds use in industrial, consumer electronics, telecommunications, and laboratory electronic instrumentation, where reliable and compact Multilayer Ceramic Capacitors are vital.
