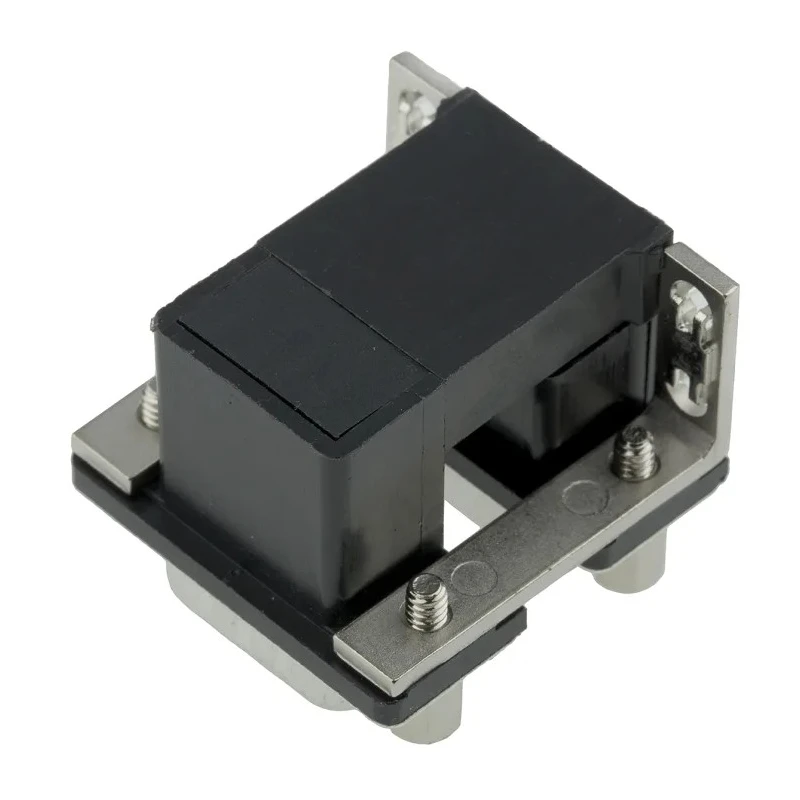

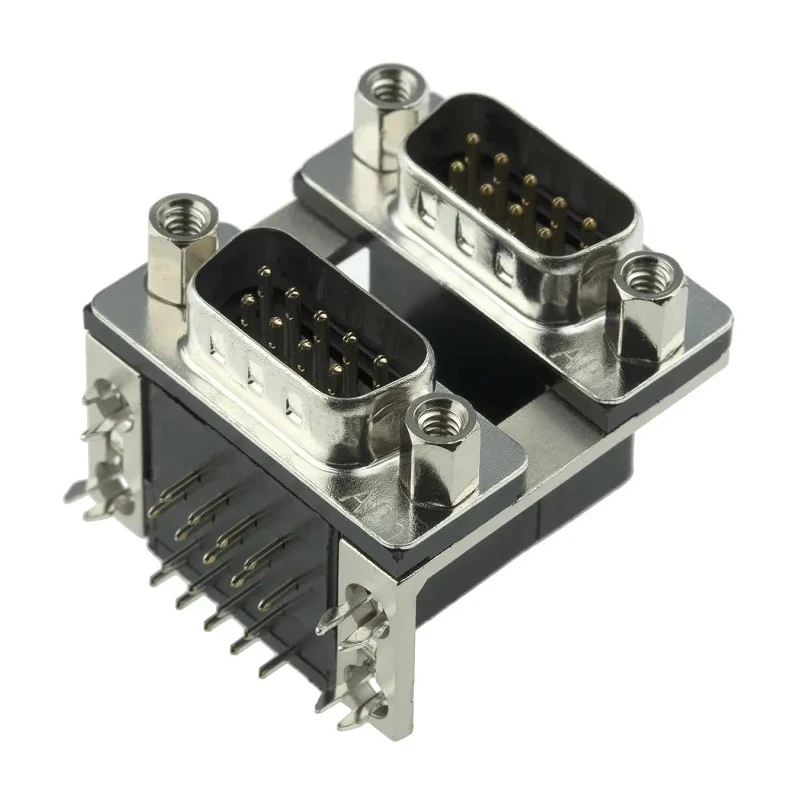

Amphenol Communications Solutions L17H Right Angle 2.77 mm Pitch Through Hole D-Sub Connector, with 4 to 40 UNC L17H2110131
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 3A |
| Model | L17H2110131 |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | L17H |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold over Nickel |
| Stock number 691-8831 | 9 way male d-sub on top and bottom |
| Stock number 691-8847 | 9 way female d-sub on top and bottom |
| Stock number 691-8840 | 15 way male d-sub on top and bottom |
| Stock number 691-8859 | 25 way female d-sub on top and bottom |
Key Features
- Designed for right angle PCB mounting with through hole placement.
- Equipped with 4 to 40 UNC screw lock for secure flange mounting.
- Features brass contacts plated with gold over nickel for optimal conductivity.
- Steel housing ensures robust mechanical protection and durability.
- Operates reliably at voltages up to 250V and currents up to 3A.
- Suitable for operating temperatures from -55°C to 125°C for diverse environments.
- Includes dual port stacked configurations for compact multi-connection solutions.
- Manufactured in China, part of the L17H series with various pin count options.
Product Description
Amphenol Communications Solutions L17H2110131 is a right angle D-Sub connector designed for through hole PCB mounting applications. It features a 2.77 mm pitch and secure mounting via a 4 to 40 UNC screw lock. The connector's steel housing provides strong mechanical protection, and its brass contacts are plated with gold over nickel to ensure excellent electrical conductivity and corrosion resistance.
This connector operates at a maximum current of 3A and a voltage rating of 250V, suitable for a wide variety of electronic and industrial power connector applications. Its temperature range from -55°C to 125°C allows reliable performance in harsh environmental conditions.
The L17H model belongs to a series of dual port stacked D-Sub connectors, offering compact solutions with multiple configurations including 9 way male, 9 way female, 15 way male, and 25 way female dual port connections on top and bottom. These features make it ideal for use in electronics manufacturing, industrial automation, and communications equipment.
Designed for right angle PCB mounting with through hole placement. Equipped with 4 to 40 UNC screw lock for secure flange mounting. Features brass contacts plated with gold over nickel for optimal conductivity. Steel housing ensures robust mechanical protection and durability.
Operates reliably at voltages up to 250V and currents up to 3A. Suitable for operating temperatures from -55°C to 125°C for diverse environments. Includes dual port stacked configurations for compact multi-connection solutions.
Manufactured in China, part of the L17H series with various pin count options.
This product is essential for electronic, industrial control, and communication system applications requiring reliable high-performance connectors. Available as a new unit from Amphenol Communications Solutions, it offers value through durability and precise mechanical and electrical characteristics.
Explore the full range of D-Sub Connectors and power connectors available on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates reliably at voltages up to 250V and currents up to 3A.
The pitch of this model is 2.77 mm.
The housing is made of steel, while the contacts are brass plated with gold over nickel for optimal conductivity.
It is suitable for operating temperatures ranging from -55°C to 125°C.
This model is designed for right angle PCB mounting with through hole placement and is secured using a 4 to 40 UNC screw lock.
It includes multiple configurations such as 9 way male, 9 way female, 15 way male, and 25 way female dual port connections on top and bottom.
The termination type for this model is solder.
This connector is suitable for applications in electronics manufacturing, industrial automation, and communications equipment.
This connector is manufactured in China.
The gold over nickel plating ensures excellent electrical conductivity and corrosion resistance.
This model belongs to the L17H series of D-Sub connectors.
Yes, it requires a 4 to 40 UNC screw lock for secure flange mounting.
