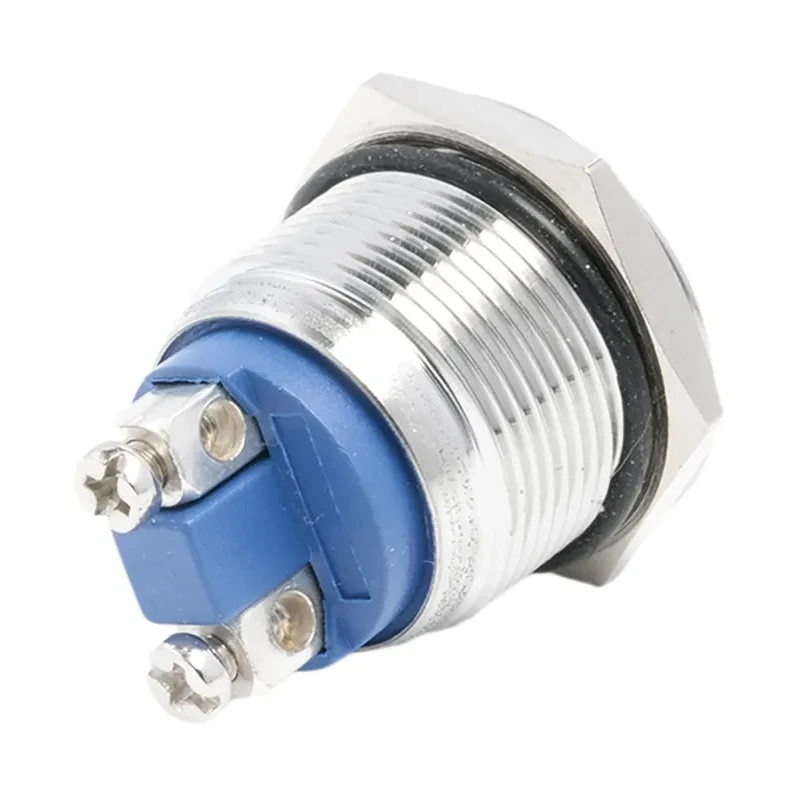

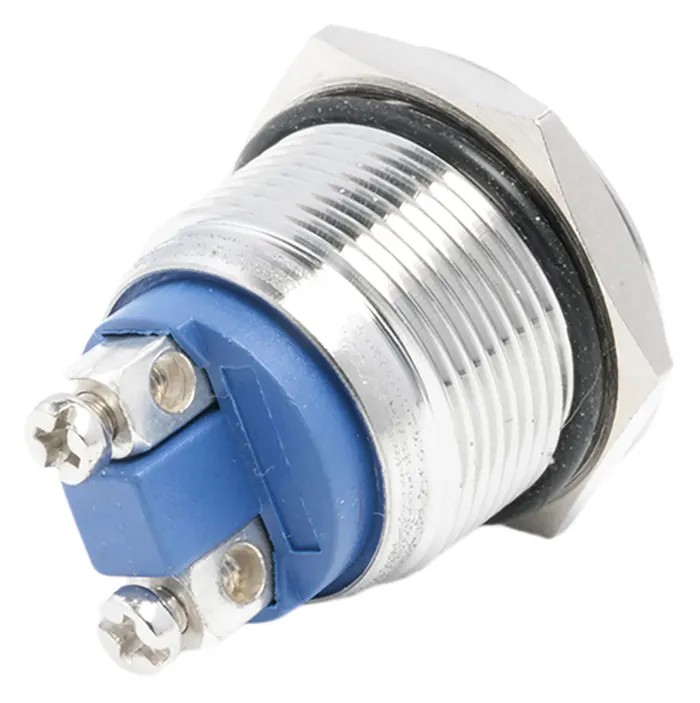

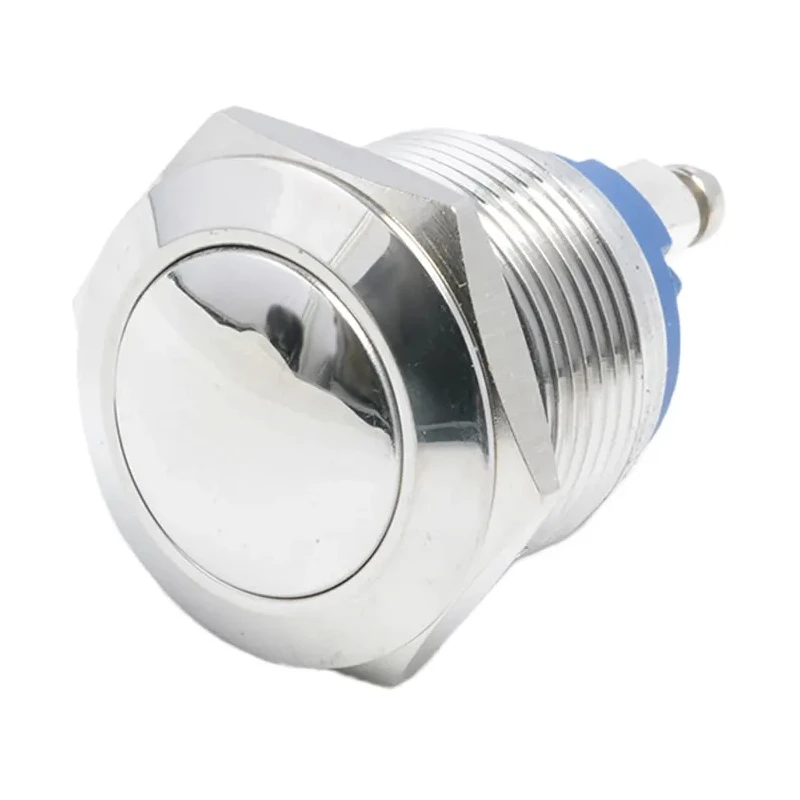

EOZ R Series Push Button Switch Momentary Panel Mount Silver Actuator 19.2 mm Cutout SPST IP65 48 V dc R19DFSSTAG

The EOZ R19DFSSTAG is a high-quality R Series push button switch designed for industrial and public applications where reliability and durability are critical. This push button switch features a rugged stainless steel actuator with a silver domed button style for easy operation and enhanced vandal resistance. It is designed as a momentary panel mount switch that operates only while the button is pressed and instantly returns to the off position upon release.

Constructed to meet IP65 ingress protection standards, it provides complete protection against dust and resistance to low-pressure water jets from all directions, making it ideal for harsh environments. The switch offers a Single Pole Single Throw (SPST) contact configuration with a 48 V dc contact voltage and a 2A contact current rating, suitable for control circuits in industrial machinery and automation systems.

With operating temperature limits ranging from -20°C to 55°C, the push button maintains stable performance across a wide temperature range. Its screw terminal connection ensures secure wiring. Additionally, the switch meets RoHS compliance and is shock resistant to IK09 (impact equivalent to 5 kg dropped from 200 mm), providing enhanced protection in public spaces such as ticket machines, kiosks, and vending machines where vandal resistance is critical.

This EOZ R Series push button switch is widely suitable for industrial, manufacturing, commercial, and security applications requiring reliable momentary switching with durability. Its stainless steel construction also offers excellent resistance to corrosion, heat, and chemicals, extending the service life in aggressive environments.

The actuator color is silver with a domed button style. The switch operates momentarily and is non-illuminated. It features screw terminal type and is built for panel mounting. Rated IP65 for complete dust protection and water jets protection.

Contact configuration is Single Pole Single Throw (SPST) with 2A contact current. Operating temperature range from -20°C to 55°C ensures reliability in various environments. This switch is shock resistant with IK09 impact rating suitable for vandal resistance.

Constructed from stainless steel, it resists corrosion, heat, and chemical damage. Ideal for use in access control systems, machinery, factory equipment, and exposed public areas. Explore the wide range of Push Button Switches available on EnvMart for your specific industrial and commercial control applications.
