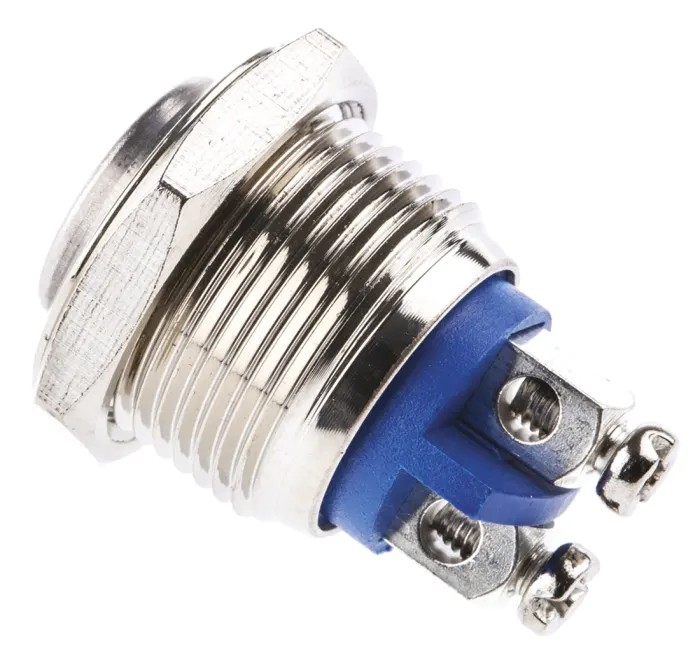

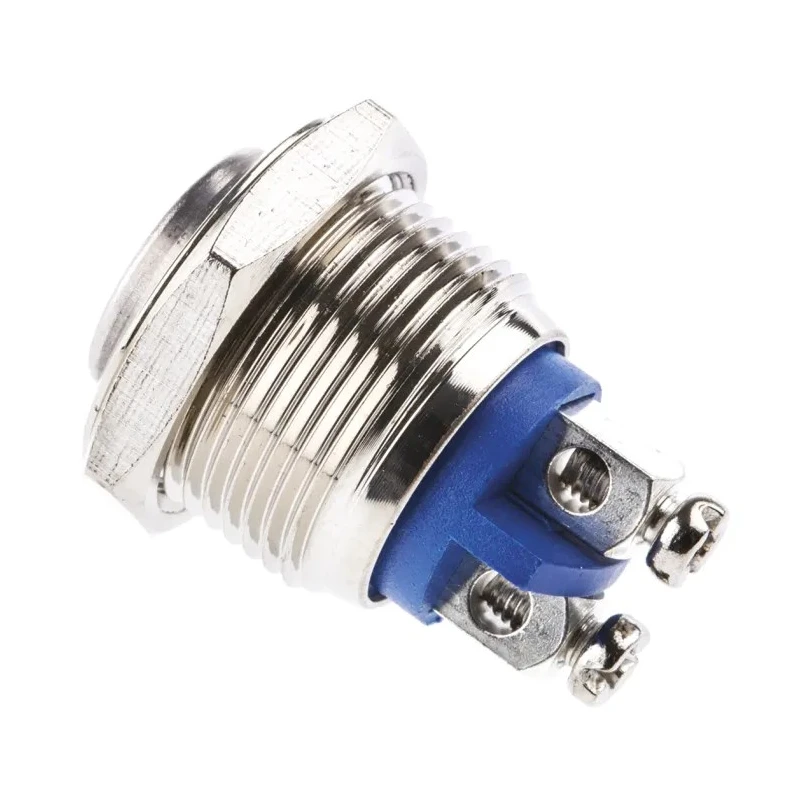

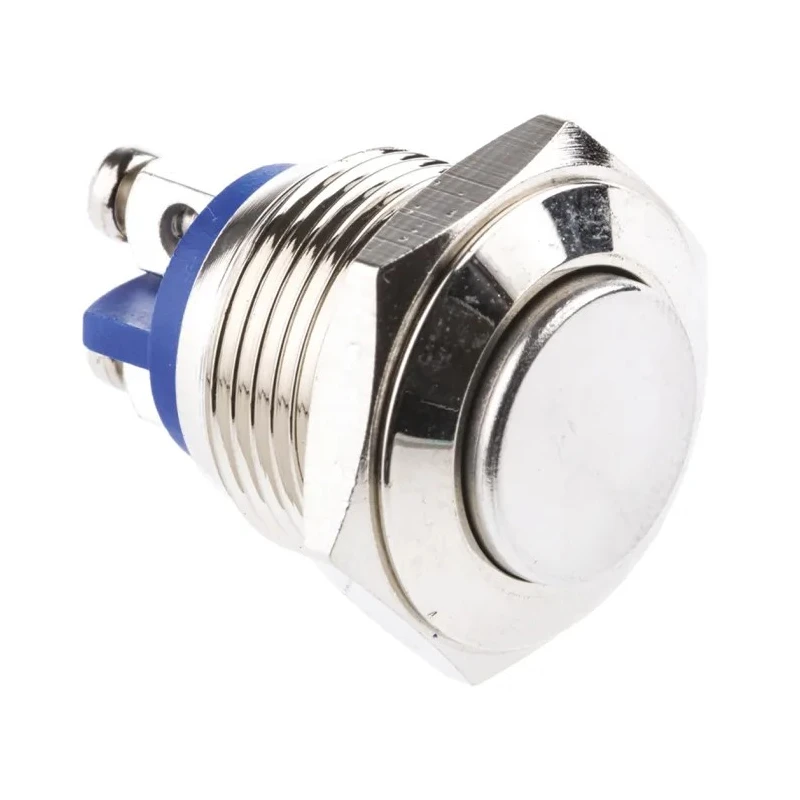

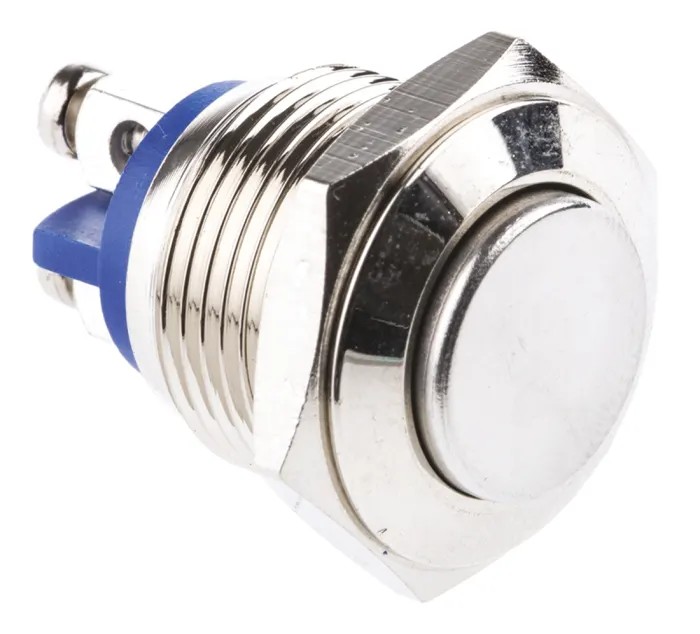

EOZ R Series Push Button Switch Momentary Panel 16.2 mm Cutout SPST IP65 48 V dc 250 V ac R16FRNSTAG

EOZ R16FRNSTAG is a high-quality push button switch from the R series, designed for momentary operation and panel mounting with a 16.2 mm cutout. It features a silver-colored button actuator made of nickel-plated brass, offering excellent corrosion resistance in harsh environments.

This SPST momentary switch is rated for 48 V dc and 250 V ac voltages, making it ideal for controlling circuits in industrial, manufacturing, and automation settings. Its screw terminal connection ensures secure and reliable electrical contact.

The switch is IP65 rated, providing total protection against dust ingress and resistance to low-pressure water jets from any direction. Its robust build includes IK08 shock resistance rating, able to endure impacts equivalent to 5 joules, which is critical for vandal-resistant and public-facing equipment.

Typical applications encompass access control systems, factory and machinery equipment, and kiosks or vending machines exposed to public use. Its non-illuminated design suits environments where illumination is not required or preferred.

Operating temperature range from -20°C to +55°C ensures suitability across a wide variety of indoor and outdoor industrial conditions. The R16FRNSTAG push button delivers long service life and reliable mechanical and electrical performance for demanding installations.

The push button acts momentarily, closing the circuit only while pressed. Featuring a vandal-resistant design suited for public and industrial applications. Constructed with nickel-plated brass for corrosion protection. Rated for 48 V dc and 250 V ac electrical operations.

SPST contact configuration with screw terminals for secure connections. Sealed to IP65 standard protecting against dust and low pressure water jets. Shock resistant with IK08 rating, withstands impact from a 1.7 kg mass dropped from 300 mm height.

Suitable for machinery, access control systems, kiosks, vending machines, and exposed public areas. Non-illuminated actuator with silver color button style. Operates reliably within -20°C to 55°C temperature range. Explore more reliable EOZ Push Button Switches in the Electronics & Electricals category on EnvMart for industrial and commercial automation needs.
