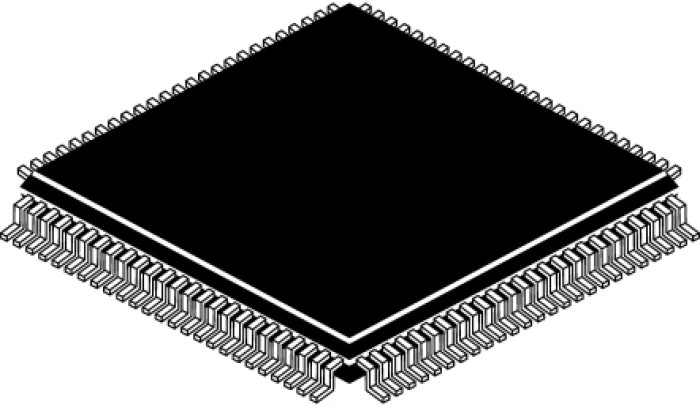

Microchip 32 bit PIC32MX Microcontroller, 80 MHz, 12kB RAM, 256kB FLASH, 100-Pin TQFP PIC32MX575F256L-80I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | PIC32MX575F256L-80I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | PIC32MX |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Ram size | 64kB |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 12, 256kB |
| Maximum Clock Frequency | 80MHz |
| Number of Programmable I/Os | 83 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
| High-performance 32-bit microcontrollers designed for | High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio |
Key Features
- The microcontroller features a powerful 32-bit MIPS M4K core optimized for performance.
- It supports USB 2.0 full-speed OTG, Ethernet, and CAN connectivity for versatile applications.
- Contains 16 10-bit ADC channels for precise analog inputs.
- Operates with low power consumption and multiple power management modes.
- Features external graphics interface for driving LCD displays directly.
- Supports various timers, watchdog timer and real-time clock/calendar module.
- Operates reliably from -40°C to 85°C temperature range.
- Packaged in a surface mount 100-pin TQFP housing with 12 mm by 12 mm dimensions.
Product Description
Microchip PIC32MX575F256L-80I/PT is a high-performance 32-bit microcontroller from the PIC32MX5 series, based on the MIPS M4K core architecture running up to 80 MHz. It features an integrated 12kB RAM and 256kB flash program memory, ideal for demanding embedded applications.
This microcontroller includes advanced on-board peripherals such as USB 2.0 full-speed OTG controller, CAN 2.0B module, and 10/100 Ethernet MAC with MII/RMII interface, making it suitable for communication-intensive industrial, automotive, and consumer electronics applications.
The device supports 16 channels of 10-bit ADC for accurate analog signal processing and has two analog comparators. It comes with multiple UART, SPI, and I2C interfaces to provide extensive connectivity options and supports SMBus protocol.
Low-power management modes, programmable PLLs and clock sources, a fail-safe clock monitor, and an independent watchdog timer enhance system reliability and power efficiency. The external graphics interface with 34 Parallel Master Port pins makes it capable of directly driving LCD displays for high-impact graphic user interfaces.
Designed to operate across a wide temperature range from -40°C up to 85°C, the microcontroller is mounted on a 100-pin TQFP package with compact 12 mm by 12 mm dimensions and a 1.05 mm height, making it suitable for surface mount PCB assembly in various industrial and embedded sectors.
The microcontroller features a powerful 32-bit MIPS M4K core optimized for performance. It supports USB 2.0 full-speed OTG, Ethernet, and CAN connectivity for versatile applications. Contains 16 10-bit ADC channels for precise analog inputs.
Operates with low power consumption and multiple power management modes. Features external graphics interface for driving LCD displays directly. Includes multiple communication interfaces: UART, SPI, I2C with SMBus support.
Supports various timers, watchdog timer and real-time clock/calendar module. Operates reliably from -40°C to 85°C temperature range. Packaged in a surface mount 100-pin TQFP housing with 12 mm by 12 mm dimensions.
This microcontroller is widely used in embedded control systems, automotive electronics, industrial automation, communication devices, and multimedia applications requiring high processing speed and multifunctional integration.
Explore more advanced Microcontrollers in the Microchip PIC32MX series and other semiconductor components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this microcontroller is 85°C.
This model operates at a maximum clock frequency of 80 MHz.
It features 12kB of RAM.
The microcontroller is packaged in a 100-pin TQFP (Thin Quad Flat Package).
This microcontroller includes 16 channels of 10-bit ADC for precise analog inputs.
The minimum supply voltage is 2.3V, while the maximum supply voltage is 3.6V.
It supports USB 2.0 full-speed OTG, Ethernet, and CAN connectivity.
The height of this model is 1.05 mm.
It has 83 programmable I/Os available.
It operates reliably within a temperature range of -40°C to 85°C.
It includes multiple interfaces such as UART, SPI, and I2C, along with support for SMBus protocol.
The program memory size is 256kB of FLASH.
