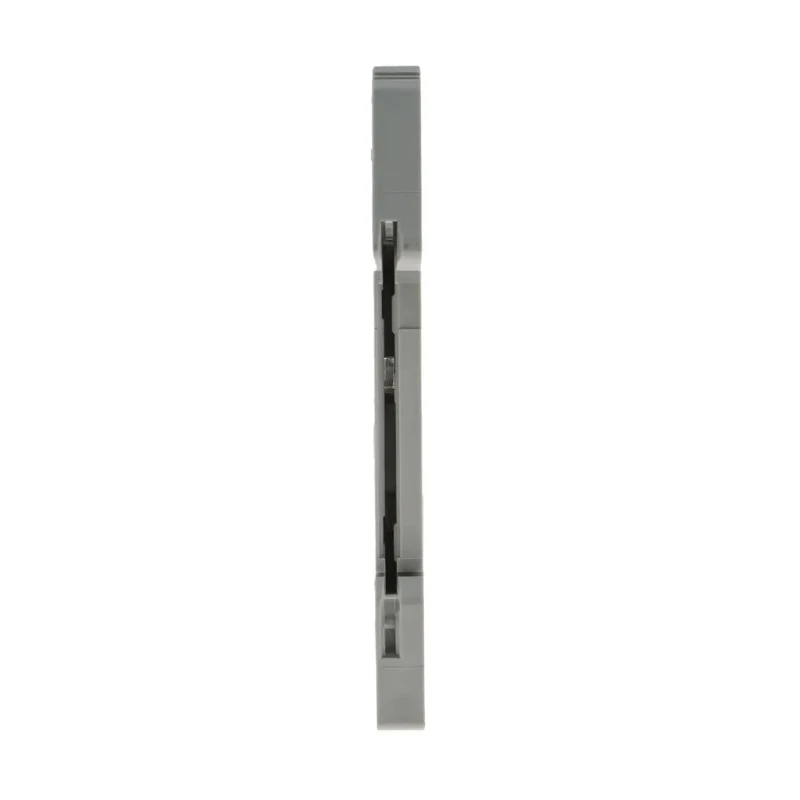

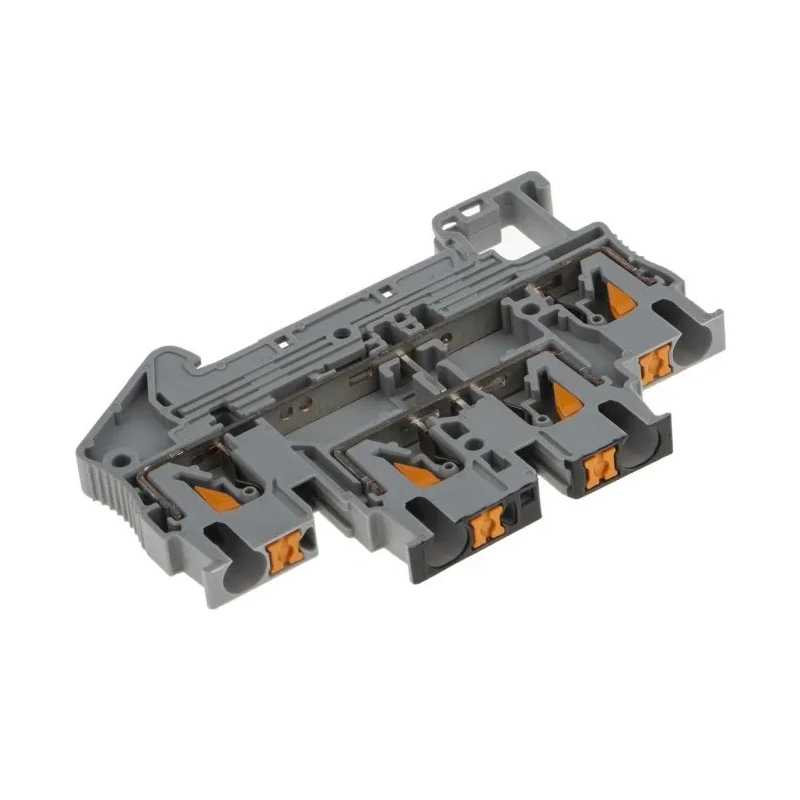

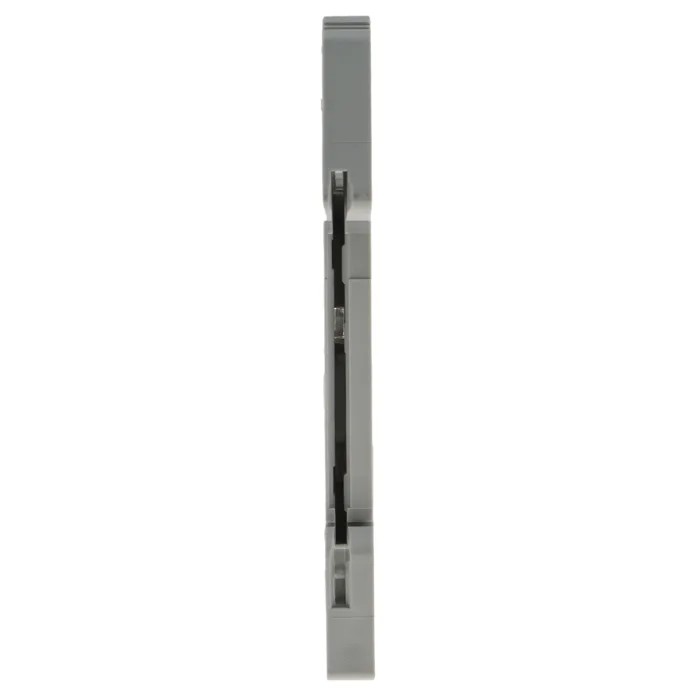

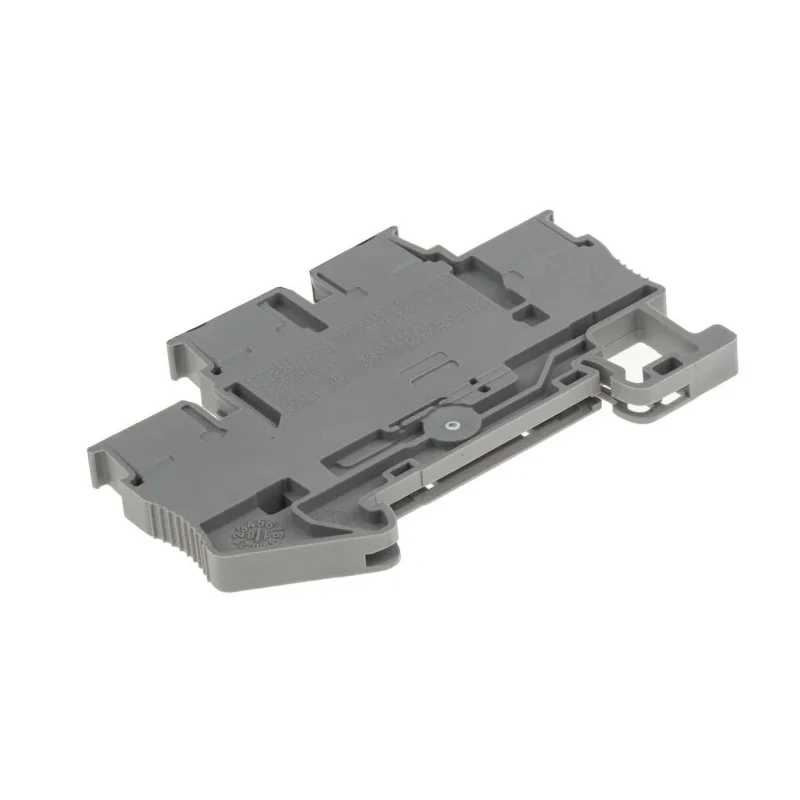

Phoenix Contact Double Level Terminal Block 500V 22A Push-in 0.14 - 4 mm² Grey PTTB 2.5-PV 3210583
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3210583 |
| Series | PTTB 2.5-PV |
| Termination Type | Push-in |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 2 |
| Sub Type | Multi-Level |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | ABS, ATEX, Bureau Veritas, CSA, cUL Recognised, cULus Recognised, DNV GL, EAC, EAC Ex, IEC 60947-7-1, IECEE CB Scheme, IECEX, LR, NK, UL Recognised, VDE |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 0.14, 4mm² |
| Terminal Block Current | 22A |
Key Features
- Designed for safe electrical connection and grounding in power, control, and automation applications.
- Features tool-free push-in connection for solid and stranded conductors from 0.14 mm² to 4 mm².
- Compact dimensions of 5.2 mm width and 68 mm height allow installation in tight spaces.
- Equipped with ATEX certification, suitable for hazardous and explosive environments.
- Supports wire sizes from 26 AWG to 12 AWG with a current rating up to 22A.
- Robust plastic housing ensures insulation and prevents direct contact with live parts for enhanced safety.
- CLIPLINE complete system enables quick bridging of terminal blocks without tools.
- Wide operating temperature range from -60°C to 105°C ensures durability in extreme conditions.
Product Description
Phoenix Contact 3210583 Double Level Terminal Block PTTB 2.5-PV is designed for electrical systems requiring safe and reliable wiring termination up to 500 volts and 22 amperes. This grey terminal block features innovative push-in technology allowing tool-free connection of solid and stranded wires from 0.14 mm² to 4 mm², suitable for wire sizes 26 AWG to 12 AWG.
The terminal block’s compact design at 5.2 mm width and 68 mm height enables installation in restricted spaces typical in control cabinets and industrial automation equipment. Its robust insulating plastic housing prevents accidental contact with live parts, providing enhanced operator safety.
Certified for ATEX hazardous environments, it complies with strict safety requirements for explosive and flammable atmospheres, making it versatile in industrial, railway, power distribution, and HVAC applications. The terminal block is part of the CLIPLINE complete system, facilitating easy bridging and modular connections without additional tooling.
The unit operates reliably within a temperature range of -60°C to 105°C and holds multiple global approvals including ABS, Bureau Veritas, CSA, cUL, DNV GL, IECEX, and UL among others, signifying global compliance and quality assurance.
Tool-free push-in termination for efficient wiring installation. Compact size supports high-density wiring applications. ATEX certification for safe use in explosive environments. Wide operating temperature range ensures longevity.
Complies with international safety and quality standards. Robust plastic housing insulates and protects wires. Supports bridging for complex wiring arrangements. Suitable for power, control, automation, and railway sectors.
This Phoenix Contact 3210583 terminal block is expertly engineered to deliver dependable electrical connections in demanding industrial settings. Explore related DIN Rail Terminal Blocks in EnvMart’s Electronics Components category to find compatible accessories and expand your system configurations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this terminal block is 500V.
This model has a current rating of up to 22A.
It supports wire sizes from 0.14 mm² to 4 mm², which corresponds to 26 AWG to 12 AWG.
The operating temperature range is from -60°C to 105°C.
Yes, it is certified for ATEX hazardous environments, suitable for explosive and flammable atmospheres.
This model features a push-in termination type, allowing for tool-free connection of wires.
This terminal block has two levels, making it a double level terminal block.
It has a compact width of 5.2 mm and a height of 68 mm, suitable for tight spaces.
The terminal block features a robust plastic housing that provides insulation and prevents direct contact with live parts.
It complies with multiple standards including ABS, ATEX, CSA, cUL, DNV GL, IECEX, and UL, ensuring global quality assurance.
Yes, it is suitable for various applications including industrial, railway, power distribution, and HVAC.
The country of origin for this terminal block is China.
