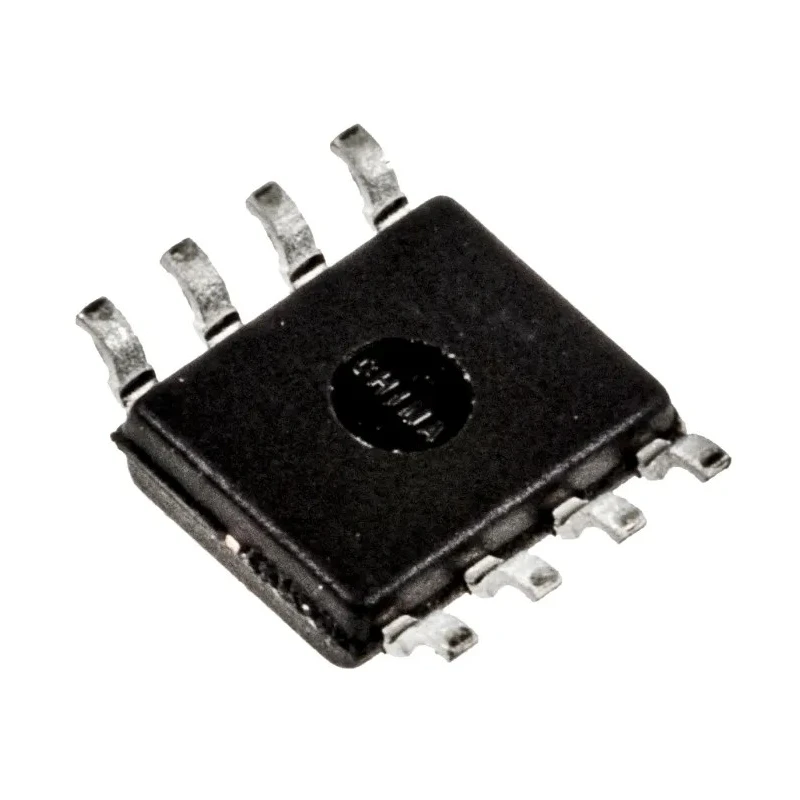

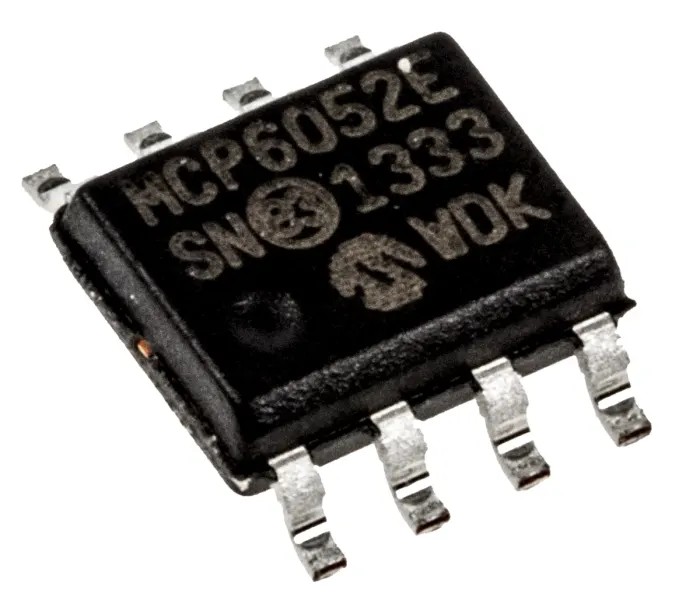

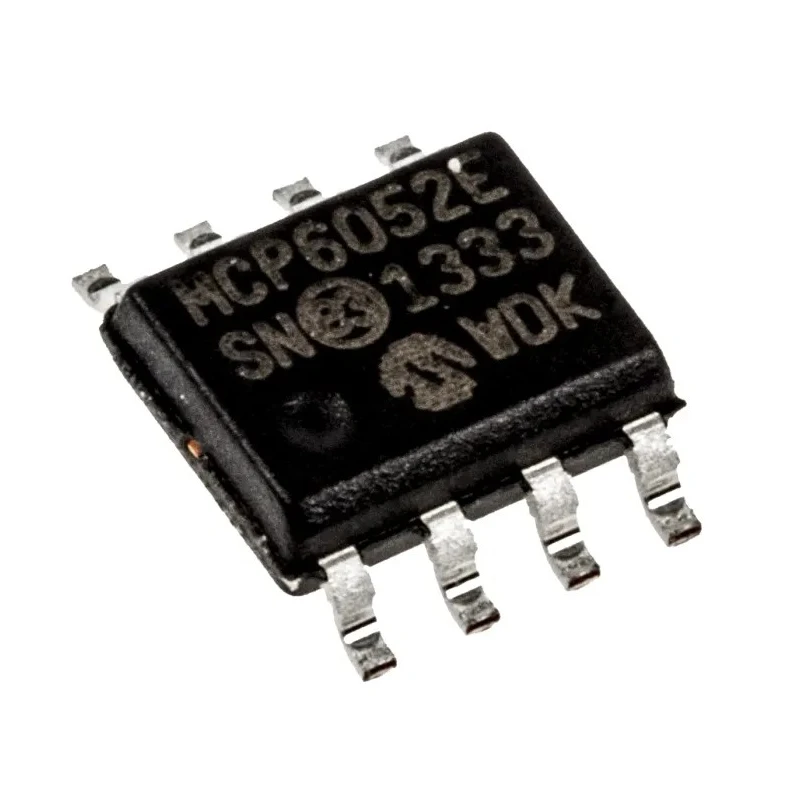

Microchip Operational Amplifier MCP6052-E/SN 380 kHz Gain Bandwidth Product, 8-Pin SOIC, 6V Mount Surface MCP6052-E/SN

Free Delivery in India | Lowest Global Shipping Charges

Microchip Operational Amplifier MCP6052-E/SN 380 kHz Gain Bandwidth Product, 8-Pin SOIC, 6V Mount Surface MCP6052-E/SN

Name: Microchip Operational Amplifier MCP6052-E/SN 380 kHz Gain Bandwidth Product, 8-Pin SOIC, 6V Mount Surface MCP6052-E/SN
Brand: Microchip
SKU: 212134
Price: 1.65 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.25mm
Length	4.9mm
Model	MCP6052-E/SN
Width	3.9mm
Mount Type	Surface
Series	MCP6052
Output Current	26mA
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	6V
Minimum Supply Voltage	3V
GBP - Gain Bandwidth Product	380kHz
Input Bias Current	100 pA
Slew Rate	0.15V/μs
Input Offset Current	1 pA

Key Features

Supports supply voltage range from 3V to 6V suitable for low voltage applications.
Extremely low input bias current of 100 pA and input offset current of 1 pA for precise amplification.
Wide operating temperature range from -40°C to 125°C for industrial and automotive use.
Slew rate of 0.15 V/μs and output current up to 26 mA for stable signal output.
Meets RoHS compliance and Automotive AEC-Q100 standard for quality assurance.
Compact 8-pin SOIC package with dimensions 4.9 mm length, 3.9 mm width, 1.25 mm height.
Dual-channel operational amplifier enabling multiplexed signal processing.
Low power consumption for efficient battery-operated device integration.

Product Description

Microchip MCP6052-E/SN operational amplifier is a dual-channel surface mount device designed for precision analog signal amplification in a compact 8-pin SOIC package. Its gain bandwidth product of 380 kHz and supply voltage range between 3V and 6V make it adaptable for various electronic circuit designs in industrial, automotive, and consumer electronics sectors.

This operational amplifier offers extremely low input bias currents and offset currents (100 pA and 1 pA respectively), ensuring high accuracy signal conditioning. It can operate robustly in harsh temperature environments from -40°C to 125°C, making it suitable for demanding applications requiring reliable performance.

The device features a slew rate of 0.15 V/μs and can deliver output current up to 26 mA, supporting stable and precise output signals. Its compact size with dimensions of 4.9 mm length, 3.9 mm width, and 1.25 mm height allows space-efficient PCB designs.

The MCP6052-E/SN is RoHS compliant and meets Automotive standard AEC-Q100, validating its quality and reliability for automotive electronics and critical industrial control systems.

The amplifier’s dual-channel capability enables multiplexed analog signals processing, enhancing design flexibility. Low power consumption aids in energy-efficient circuit integration in battery-operated devices. Industry-standard SOIC packaging supports easy mounting on printed circuit boards for mass production.

Extensive technical documentation and certificate of conformity are available from Microchip for compliance and design assurance.

This Operational Amplifier is ideal for use in analog signal conditioning, sensor interfaces, filtering circuits, and precision instrumentation across industrial, automotive, laboratory, and manufacturing applications. Explore more Microchip semiconductor components on EnvMart for your electronics design needs.
