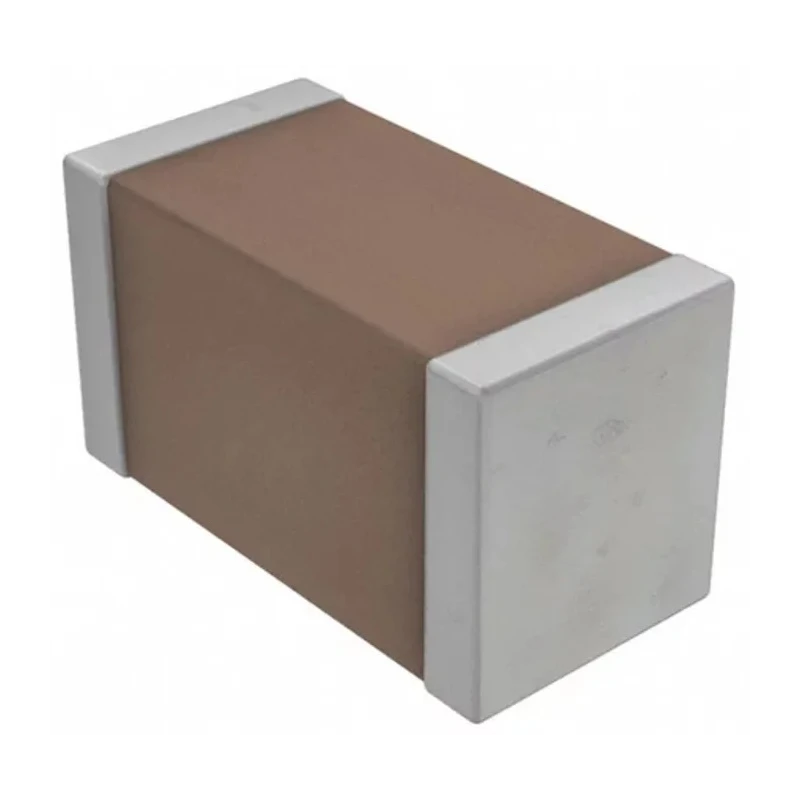

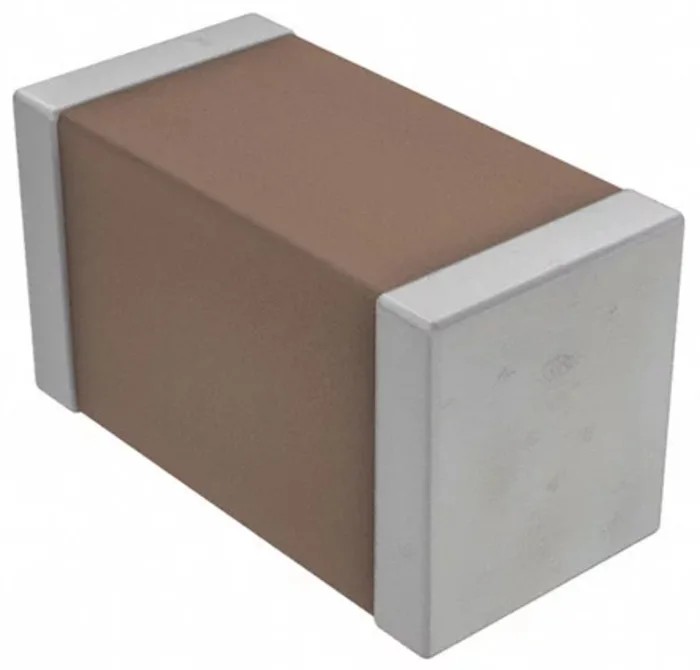

TDK 470 nF Multilayer Ceramic Capacitor, 16V dc, ±10%, Surface Mount, Tape & Reel Packaging CGA3E2X5R1C474K080AA

TDK CGA3E2X5R1C474K080AA is a high-quality multilayer ceramic capacitor (MLCC) with capacitance of 470 nF and a voltage rating of 16V dc. It features an X5R dielectric material that provides excellent stability and reliability over a wide temperature range from -55°C to 85°C. This capacitor is surface mount type in a compact 0603 package, which measures 1.6mm in length, 0.8mm in width, and 0.8mm in height, making it ideal for densely packed electronic assemblies.

Designed per AEC-Q200 automotive standards, this component is suitable for automotive battery line smoothing, sensor modules, engine control units, anti-lock brake systems, infotainment systems, and other automotive applications requiring robust and stable capacitor performance. The capacitor is supplied in tape and reel packaging optimized for automated manufacturing processes.

TDK’s CGA series capacitors are engineered with precision multilayer construction, resulting in low equivalent series resistance (ESR) and low equivalent series inductance (ESL). These characteristics ensure reduced self-heating and superior frequency performance, making this capacitor suitable for various industrial and consumer electronics applications including smart meters, solar inverters, and AC-DC battery chargers.

Capacitance of 470 nF ensures adequate charge storage and filtering capabilities. X5R dielectric offers favorable temperature and voltage characteristics for consistent operation. Compliant with automotive-grade AEC-Q200 for extended reliability.

Compact 0603 surface mount package allows miniaturized circuit designs. Wide temperature range from -55°C to 85°C suits harsh environments. Tape and reel packaging supports efficient surface mount technology assembly. Low ESL and ESR minimize signal distortion at high frequencies.

Dimensions of 1.6 x 0.8 x 0.8 mm facilitate space-saving layouts.

This TDK multilayer ceramic capacitor is a highly reliable and efficient component widely used in automotive, industrial, and commercial electronic systems. Explore the full range of Multilayer Ceramic Capacitors in the capacitors category of EnvMart for your precise engineering needs.
