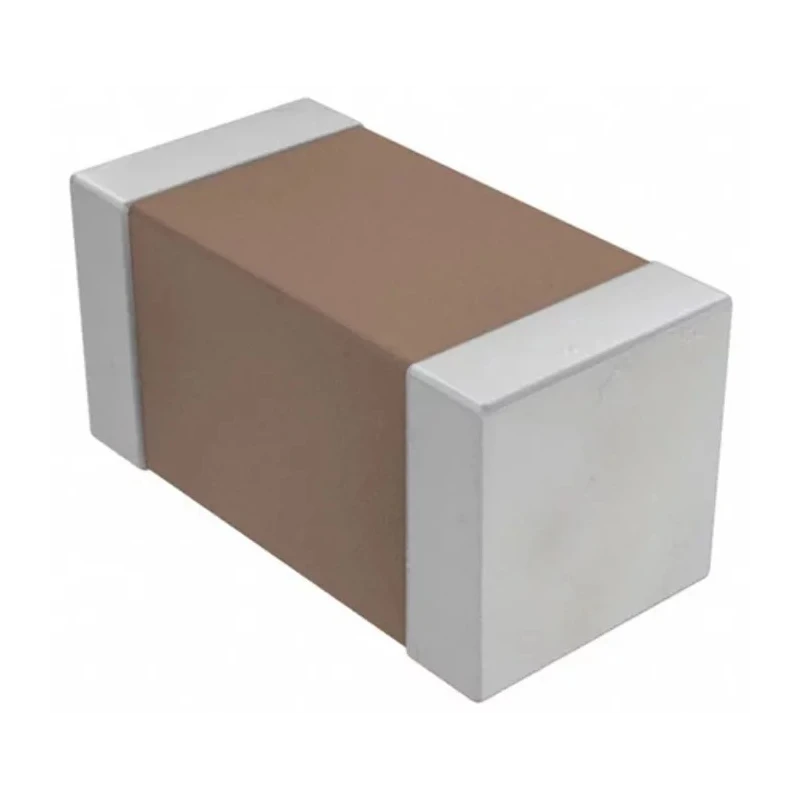

TDK 27 pF 50V dc ±5 % Tolerance Multilayer Ceramic Surface Mount Capacitor CGA1A2C0G1H270J030BA

Free Delivery in India | Lowest Global Shipping Charges

TDK 27 pF 50V dc ±5 % Tolerance Multilayer Ceramic Surface Mount Capacitor CGA1A2C0G1H270J030BA



Category Multilayer Ceramic Capacitors Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.3mm
Length	0.6mm
Model	CGA1A2C0G1H270J030BA
Packaging	Tape & Reel
Width	0.3mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	27pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

Features C0G dielectric material ensuring high stability and low loss.
Package size 0603 offers compact surface mount design.
Qualified to AEC-Q200 automotive standard for high reliability.
Operating temperature range from -55°C to 125°C for broad environmental tolerance.
Low equivalent series resistance (ESR) for minimal signal distortion.
Utilizes solder termination suitable for automatic mounting.
Ideal for automotive battery line smoothing, sensor modules, and engine control units.
Suitable for smart meters, solar inverters, AC-DC chargers, and transportation applications.

Product Description

TDK CGA1A2C0G1H270J030BA is a multilayer ceramic capacitor designed with 27 pF capacitance, operating voltage of 50V DC, and a tolerance of ±5 %. It uses the stable C0G dielectric material and comes in a compact 0603 package for surface mounting on electronic circuits.

This capacitor is built to meet the AEC-Q200 automotive standards ensuring excellent reliability and performance under tough operating conditions. Its operating temperature ranges from -55°C to 125°C, making it suitable for automotive and other industrial applications.

The CGA series capacitors feature low equivalent series resistance (ESR), ensuring low self-heating and superior frequency characteristics, which contribute to their high mechanical strength and heat resistance.

Typical applications include smoothing automotive battery lines, sensor modules, engine control units, anti-lock braking systems, and automotive infotainment. They are also widely used in smart meters, smart grids, solar inverters, AC-DC battery chargers, transportation, and agricultural electronic systems.

The product is supplied in tape and reel packaging with solder terminations optimized for automated assembly processes. High stability and low loss with C0G dielectric. Compact 0603 surface mount package. Automotive-grade reliability certified to AEC-Q200.

Wide temperature range operation from -55°C to 125°C. Low equivalent series resistance for reduced signal loss. Suitable for various industrial and automotive electronic applications. Reliable solder termination for automated mounting.

This TDK multilayer ceramic capacitor offers guaranteed performance owing to a mature manufacturing process and is widely regarded in electronics manufacturing industries. Explore more capacitors and electronic components in the Electronics Components category at EnvMart.
