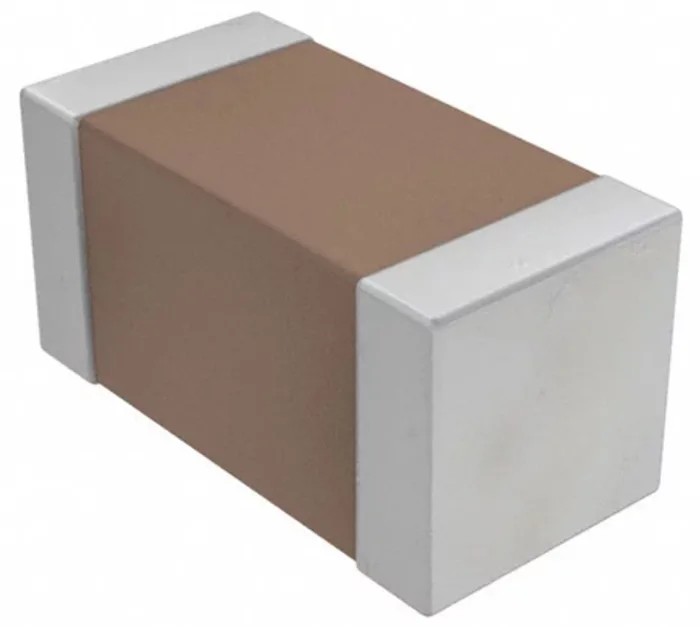

TDK 15 pF 50V DC ±5 % Multilayer Ceramic Capacitor Surface Mount 0603 Package CGA1A2C0G1H150J030BA

Free Delivery in India | Lowest Global Shipping Charges

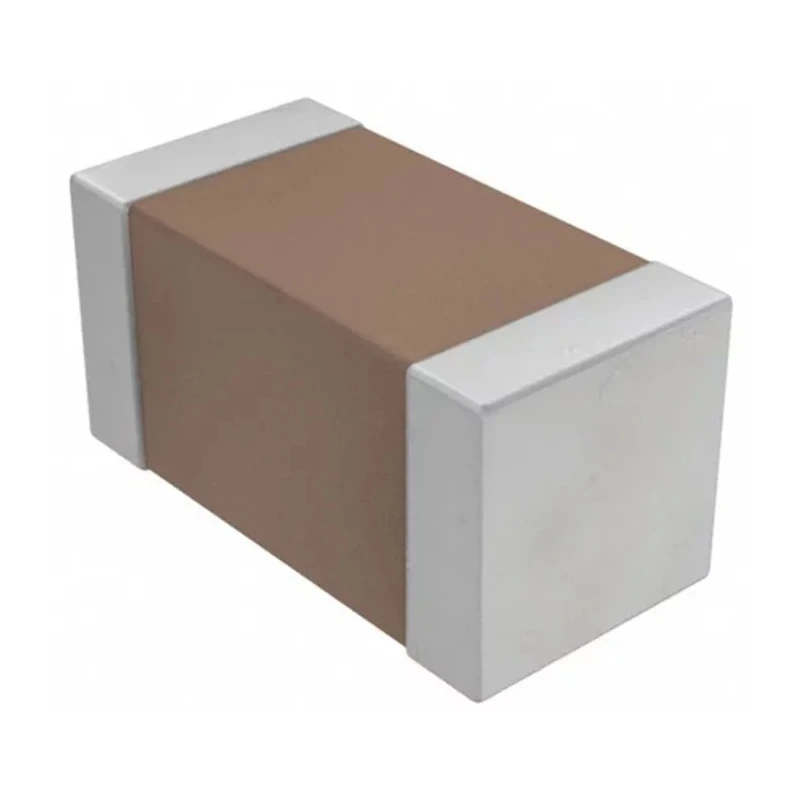

TDK 15 pF 50V DC ±5 % Multilayer Ceramic Capacitor Surface Mount 0603 Package CGA1A2C0G1H150J030BA



Category Multilayer Ceramic Capacitors Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.3mm
Length	0.6mm
Model	CGA1A2C0G1H150J030BA
Packaging	Tape & Reel
Width	0.3mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	15pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

Compact 0603 package size ideal for surface mounting applications.
Utilizes C0G dielectric offering excellent thermal stability and low losses.
Capacitors rated for a maximum operating temperature of 125°C and minimum of -55°C.
Manufactured to automotive standard AEC-Q200 ensuring high reliability for critical applications.
Tape and reel packaging supports automated assembly processes.
Features solder termination type and nickel barrier with plated tin coating.
Class I suppression with low ESR and ESL for superior frequency characteristics.
Applications include automotive battery line smoothing, sensor modules, and engine control units.

Product Description

TDK CGA1A2C0G1H150J030BA is a 15 pF multilayer ceramic capacitor designed for surface mount technology (SMT) applications, rated at 50 volts DC with a tolerance of ±5 %.

These capacitors employ C0G (NP0) class I dielectric, known for excellent thermal stability and minimal capacitance change over temperature. Housed in a 0603 package, they have dimensions of 0.6 mm length, 0.3 mm width, and 0.3 mm height, making them suitable for high-density circuit boards.

Designed to meet automotive industry AEC-Q200 qualification, this capacitor assures superior reliability and performance under harsh environments, including wide operating temperature ranges from -55°C up to 125°C. The termination type is solder, utilizing nickel barrier terminations plated with tin for optimal solderability.

Features include low equivalent series resistance (ESR), low equivalent series inductance (ESL), and excellent frequency characteristics, making this capacitor ideal for smoothing automotive battery lines, sensor circuits, engine control units, and high-frequency applications. These capacitors offer excellent heat resistance, mechanical strength, and stable capacitance for critical industrial and automotive electronic applications.

Tape and reel packaging facilitates automated assembly and mass production. These capacitors are manufactured in Japan, maintaining high standards of quality and consistency. Compact and reliable multilayer ceramic capacitor for SMT.

Rated for 50V DC with ±5 % capacitance tolerance. C0G dielectric for stable performance and low losses. Automotive-grade AEC-Q200 certification for critical applications. Wide operating temperature range from -55°C to 125°C.

Class I suppression suitable for high-frequency circuits. Tape and reel packaging for automated processing. Nickel barrier solder terminations plated with tin. Made in Japan ensuring premium manufacturing quality.

This capacitor is well suited for automotive, industrial, electronics manufacturing, and high-reliability laboratory applications requiring stable and precise capacitance performance. Browse the Multilayer Ceramic Capacitors category at EnvMart for more solutions from TDK and other leading manufacturers.
