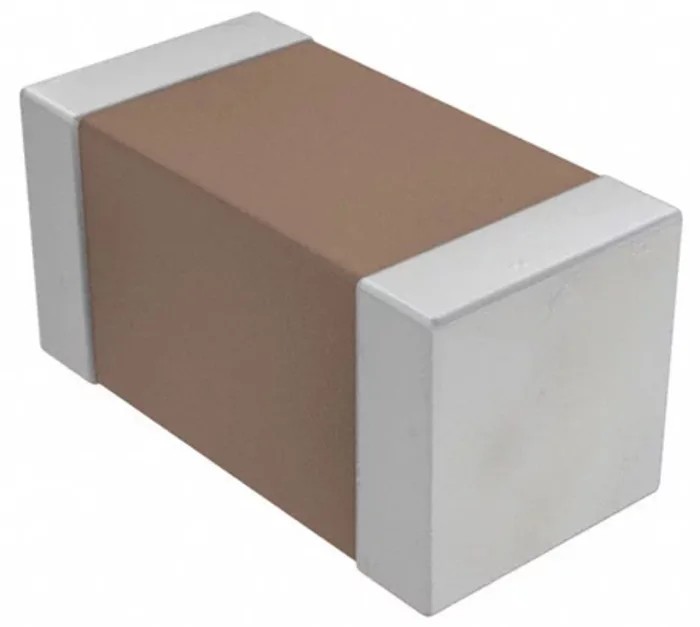

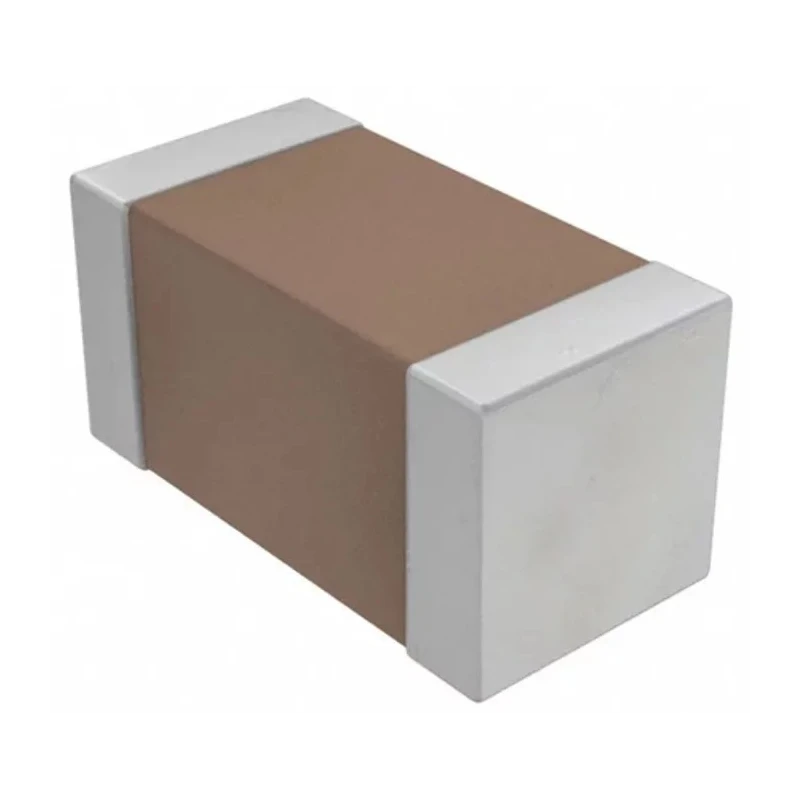

TDK 9 pF Multilayer Ceramic Capacitor, 50V dc, 0.5 pF Tolerance, Surface Mount, Package 0603 CGA1A2C0G1H090D030BA

TDK CGA1A2C0G1H090D030BA is a Multilayer Ceramic Capacitor (MLCC) featuring 9 pF nominal capacitance and 0.5 pF tolerance, rated at 50V dc for surface mount applications. Utilizing premium C0G dielectric material, it delivers superior heat resistance, low equivalent series resistance (ESR), and excellent frequency characteristics for demanding circuits.

This capacitor is housed in a 0603 package with dimensions of 0.6 mm length, 0.3 mm width, and 0.3 mm height, making it suitable for compact PCB designs. It complies with the AEC-Q200 automotive standard, offering enhanced mechanical strength and reliability, suitable for use in automotive battery line smoothing, sensor modules, and engine control units.

The termination is a solder type optimized for automated mounting processes, ensuring robust electrical connections and mechanical endurance. Operating temperature ranges from -55°C to a maximum of 125°C, allowing deployment in harsh industrial and automotive environments.

The CGA series capacitors by TDK are recognized for their precision and stable performance under temperature variations, making them ideal for applications such as smart meters, solar inverters, infotainment systems, and transportation electronics.

Excellent thermal and mechanical reliability with strict quality assurance. Low ESR and ESL supporting high-frequency applications with minimal signal distortion. Compact surface mount design enhances PCB space utilization.

Robust against environmental stress due to automotive qualification. Employs tape and reel packaging supporting efficient mass production assembly.

This product is manufactured in Japan and is suitable for use in industrial, automotive, telecommunications, and consumer electronics sectors. Browse EnvMart’s collection of Multilayer Ceramic Capacitors for additional options and specifications from leading brands including TDK.
