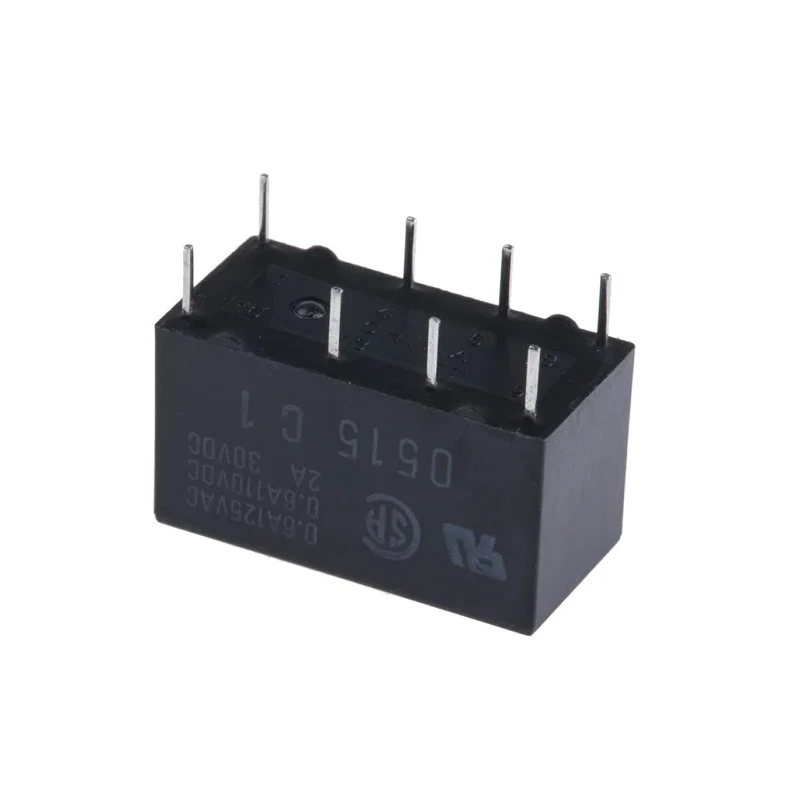

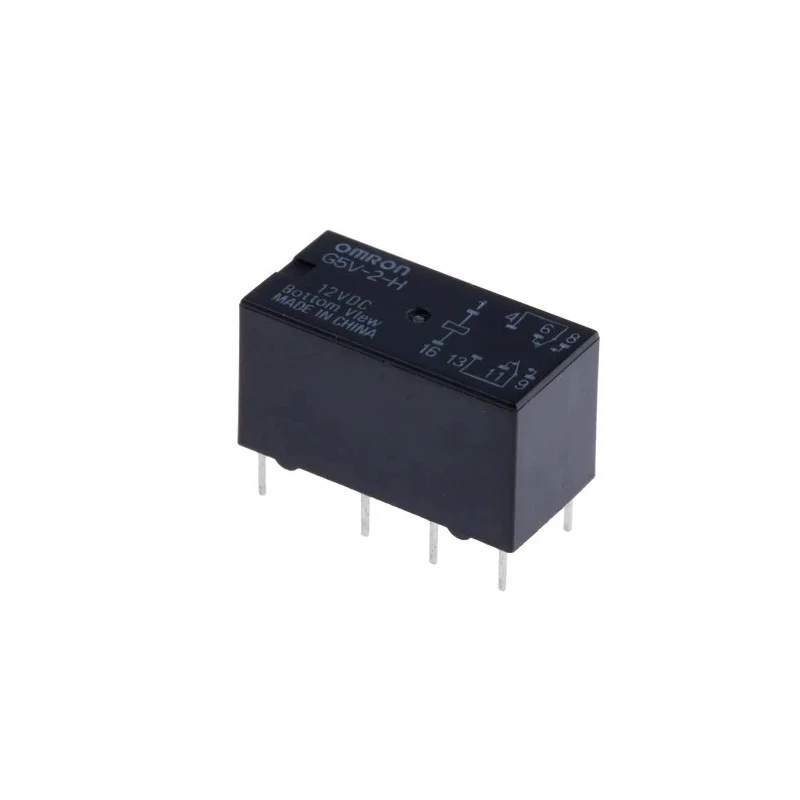

Omron PCB Signal Relay 12V DC Coil 1A DPDT Contact Configuration G5V-2-H 12DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11.2mm |
| Length | 20.5mm |
| Model | G5V-2-H 12DC |
| Width | 10.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G5V |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 960Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
Key Features
- High sensitivity coil suitable for signal circuits.
- Double Pole Double Throw (DPDT) contact configuration enhances switching versatility.

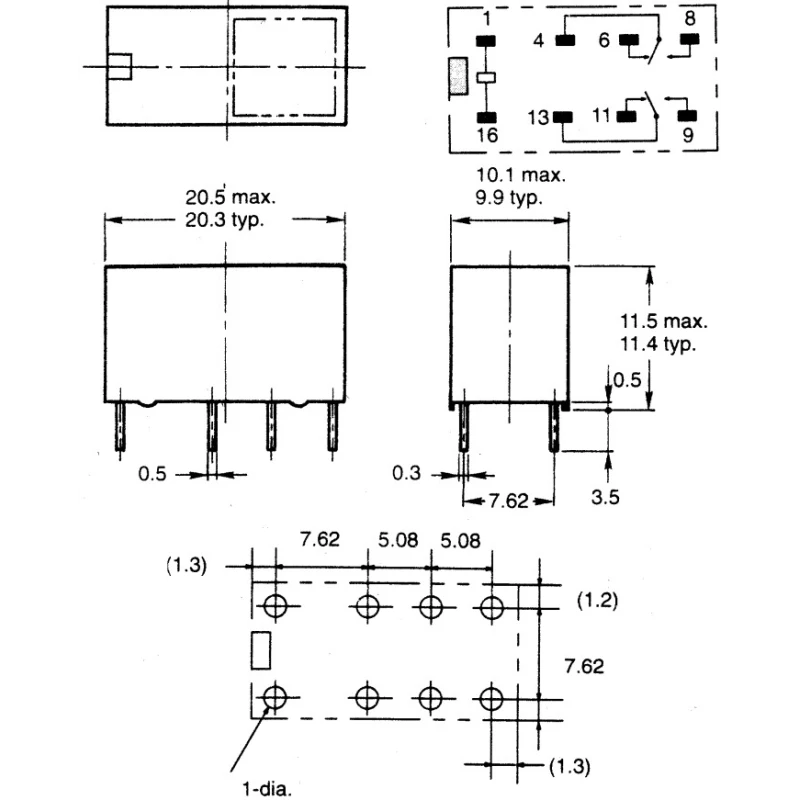

- Compact miniature size with dimensions 20.5mm length, 11.2mm height, and 10.4mm width.
- Gold plated contact material ensures reliable electrical conduction and long service life.
- Operating temperature range from -25°C to 70°C for robust industrial performance.
- Fully sealed design compliant with RoHS standards.
- PCB mount type with solder terminals for secure installation.
- Switching voltages up to 125V AC/DC with switching power of 62.5 VA.
Product Description
Omron G5V-2-H 12DC PCB Signal Relay features a 12V DC coil voltage, 1A switching current, and a DPDT (Double Pole Double Throw) contact configuration, making it ideal for precise signal switching applications in electronic circuits.
This model belongs to the G5V series known for miniature PCB relays with high-sensitivity coils suited for signal circuits. The relay is fully sealed, meeting RoHS environmental standards, and conforms with FCC Part 68 requirements. It is UL and CSA approved, ensuring quality and safety for industrial use.
With dimensions of 20.5mm length, 11.2mm height, and 10.4mm width, this compact relay fits efficiently on printed circuit boards using solder terminals for firm connection.
The relay offers switching capabilities up to 125V AC or DC and a switching power of 62.5 VA. Gold plated contacts guarantee reliable electrical performance and prevent oxidation, extending relay lifespan.
Operating temperature ranges from -25°C to 70°C, making it suitable for diverse industrial and laboratory environments requiring robust electronic control components. Applications include automation systems, signal conditioning, electronic measurement devices, and industrial control circuits in electrical and electronics manufacturing.
This relay is manufactured in China, ensuring consistent quality control and industry compliance. High sensitivity coil for signal circuit applications. DPDT contact configuration for versatile switching. Compact miniature size for PCB mounting.
Gold plated contacts for durable electrical performance. Wide operating temperature range of -25°C to 70°C. Fully sealed and RoHS compliant design. Switching capacity up to 125V AC/DC, 62.5 VA power. Low coil power consumption of 150mW.
Solder terminal type for secure PCB installation. UL and CSA approvals for industrial safety standards. Explore more electronic components and high-quality relays at EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage of 12V DC.
It features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching applications.
The dimensions of the relay are 20.5mm in length, 11.2mm in height, and 10.4mm in width.
This relay can switch voltages up to 125V AC or DC.
The maximum switching current is 1A.
The operating temperature range is from -25°C to 70°C.
It uses solder terminals for secure PCB installation.
The coil power consumption is 150mW.
Yes, it is fully sealed and compliant with RoHS standards.
The contacts are made of gold plated material, ensuring reliable electrical conduction.
It is manufactured in China, ensuring consistent quality control.
This relay is suitable for applications in automation systems, signal conditioning, electronic measurement devices, and industrial control circuits.
