Omron Signal Relay PCB Mount DPDT 12V DC Coil 1A 30W G6KU-2P-Y DC12

Omron G6KU-2P-Y DC12 signal relay is a high-quality PCB mount relay featuring a double pole double throw (DPDT) contact configuration and a stable 12V DC coil voltage. With a coil power consumption of approximately 100mW, it offers low power operation suitable for a variety of electrical and automation applications.

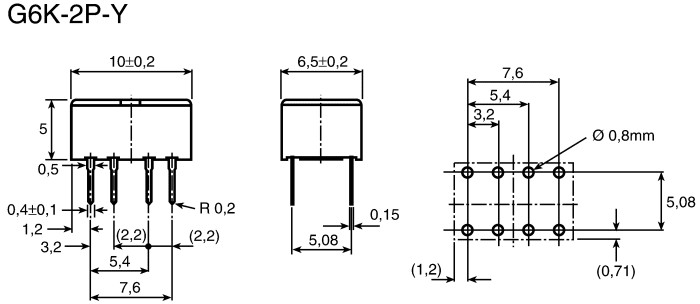

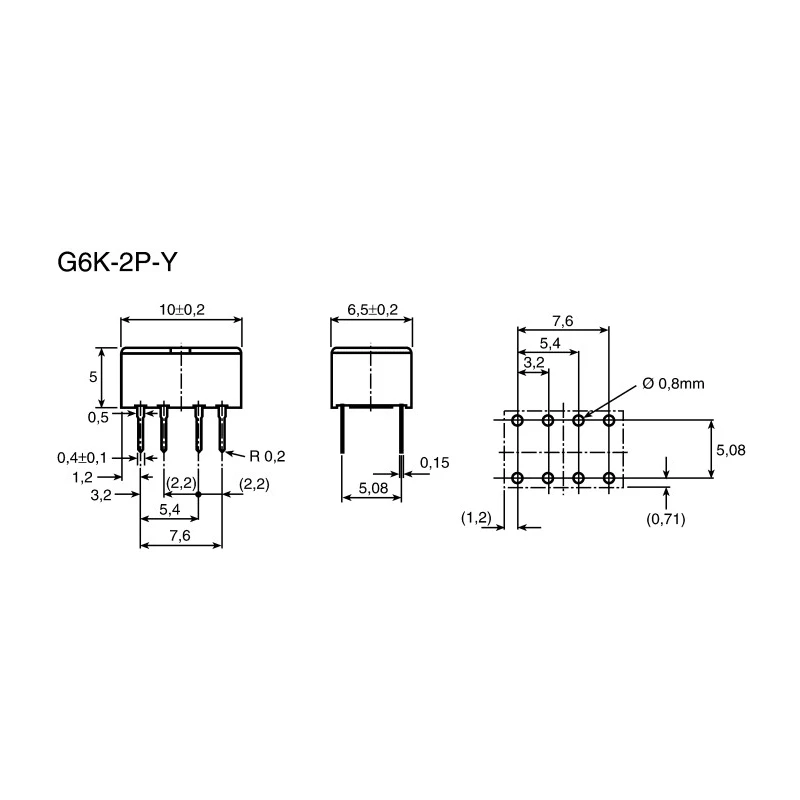

The relay can safely switch a current of 1A and supports switching voltages up to 125V AC and 60V DC, providing flexibility for different circuit requirements. The compact sub-miniature dimensions of 10mm length, 6.5mm width, and 5mm height allow for efficient use of PCB space.

It features gold plated contacts which ensure minimal contact resistance of 100mΩ and reliable electrical connections. The coil resistance of 1315Ω contributes to stable coil performance. Designed for solder terminal mounting, it offers secure and reliable mechanical and electrical connection to printed circuit boards.

The relay has a fully sealed construction, enhancing its durability and protecting it against environmental contaminants. Its broad operating temperature range from -40°C to 70°C makes it suitable for various industrial and commercial environments.

The G6KU-2P-Y DC12 model conforms to RoHS standards and holds UL and CSA approvals, ensuring compliance with industry safety and environmental standards. This signal relay is ideal for use in industrial control systems, automation equipment, and other PCB signal relay applications.

Features a double pole double throw (DPDT) contact configuration for versatile switching. Operates at a coil voltage of 12V DC with a coil power consumption of approximately 100mW. Supports switching current of 1A, switching AC voltage of 125V AC, and DC voltage up to 60V DC.

Compact sub-miniature design with dimensions 10mm x 6.5mm x 5mm. Constructed with gold plated contacts ensuring low contact resistance and reliable performance. Rated switching power of 30W suitable for PCB signal relay applications.

Operating temperature range from -40°C to 70°C for a wide range of conditions. Terminals designed for solder mounting on PCB for secure connections. Fully sealed construction enhances durability and stability. Meets RoHS, UL, and CSA standards for safety and environmental compliance.
