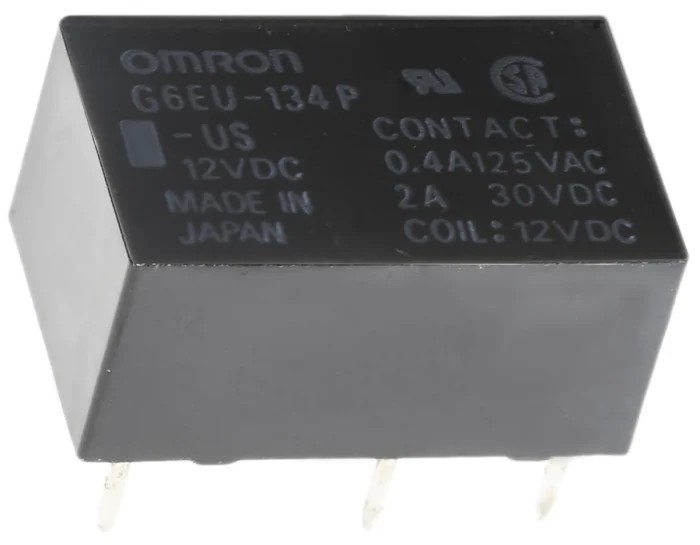

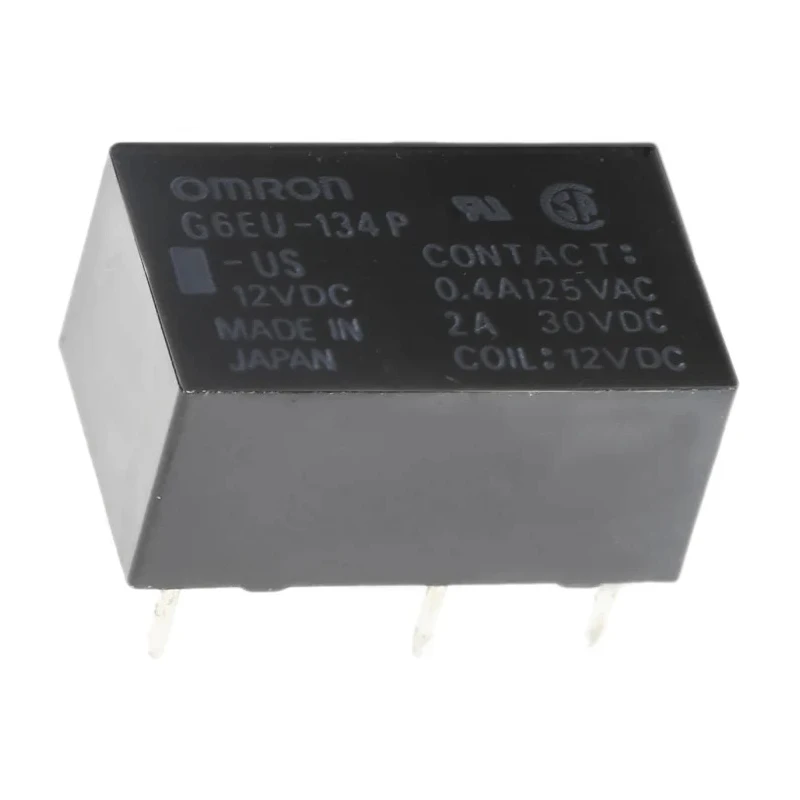

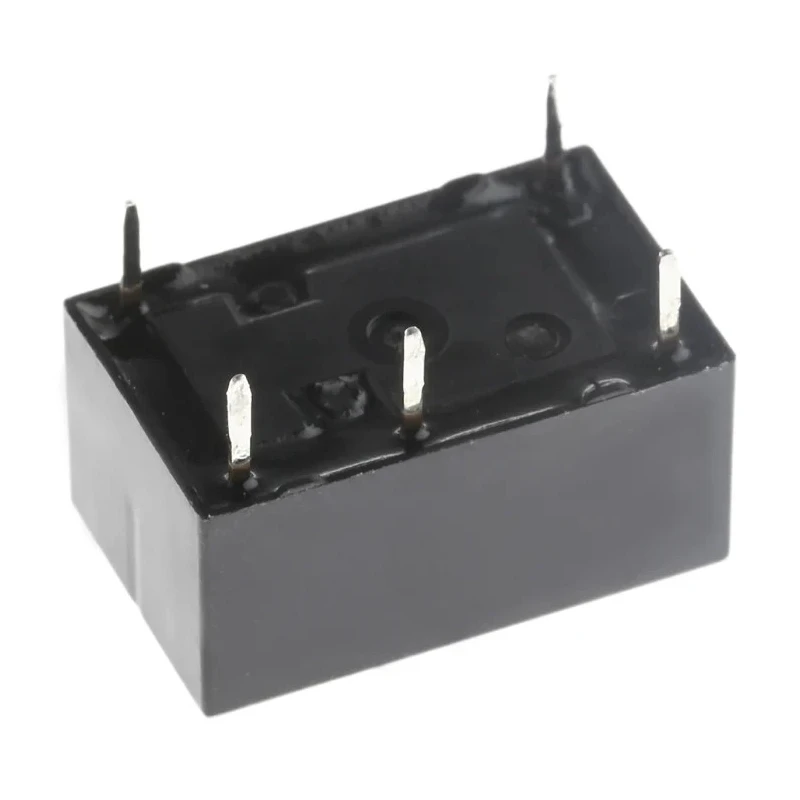

Omron Signal Relay 12V DC Coil 3A SPDT PCB Mount G6EU-134P-US 12DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 8mm |
| Length | 16mm |
| Model | G6EU-134P-US 12DC |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Switching Power | 60W |
Key Features
- Operates with a coil voltage of 12V DC for precise switching.
- Single Pole Double Throw (SPDT) contact configuration suitable for signal switching.
- Supports a maximum switching current of 3 amperes.
- Designed for PCB mounting with compact dimensions of 16mm length, 10mm width, and 8mm height.
- Capable of switching up to 250V AC and 220V DC voltages.
- Gold-plated contacts ensure reliable conductivity and low contact resistance of 50 milliohms.
- Coil resistance of 720 ohms with a power consumption of 200 milliwatts.
- Operating temperature range from -40°C to 70°C, suitable for diverse environments.
Product Description
Omron G6EU-134P-US 12DC Signal Relay is a high-sensitivity subminiature relay featuring a 12V DC coil designed for PCB mounting applications. It provides a Single Pole Double Throw (SPDT) contact configuration, allowing versatile signal switching in industrial electronic circuits.
This relay supports a switching current of 3 amperes and can handle switching voltages up to 250V AC and 220V DC, making it suitable for a wide range of electronics and automation systems. The relay has compact dimensions of 16mm in length, 10mm in width, and 8mm in height.
The gold-plated contacts reduce contact resistance to 50 milliohms, ensuring reliable operation and minimal signal loss. Coil resistance is rated at 720 ohms with a coil power consumption of only 200 milliwatts, enabling efficient power management.
Designed to operate reliably within a temperature range of -40°C to 70°C, this relay offers durability for industrial, electrical, and automation environments. Its fully sealed construction permits immersion cleaning of PCBs, enhancing maintenance and longevity.
Compliant with RoHS standards and made in Japan, the G6EU Series relay meets stringent quality and environmental requirements. This product is ideal for use in industrial control, signal conditioning, and PCB-based electronic assemblies.
Operates at 12V DC coil voltage. SPDT contact configuration for flexible switching. Rated switching current of 3A. Compact size fits PCB mounting designs. Gold plated contacts for low resistance and reliability. Wide operating temperature range from -40°C to 70°C.
RoHS compliant environmental standards. Fully sealed for immersion cleaning capabilities. Manufactured in Japan ensuring high quality. Explore more products like this in the Signal Relay category at EnvMart for your electronics and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 3 amperes.
This relay has compact dimensions of 16mm in length, 10mm in width, and 8mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration suitable for versatile signal switching.
The relay can switch voltages up to 250V AC and 220V DC.
The contact resistance is rated at 50 milliohms, ensuring reliable conductivity.
It has a coil resistance of 720 ohms and a power consumption of 200 milliwatts.
The relay operates reliably within a temperature range of -40°C to 70°C.
Yes, this relay is compliant with RoHS standards.
It is designed for PCB mounting.
This relay is manufactured in Japan.
The contacts are made of gold-plated material, which helps reduce contact resistance.
