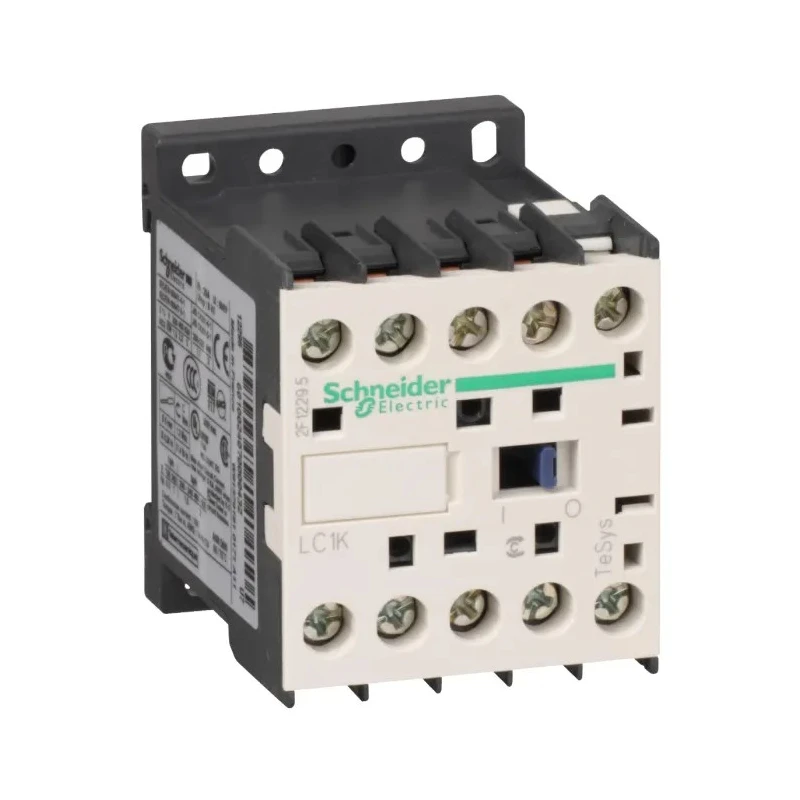

Schneider Electric Motor Control Contactor 3-Pole 16A 690V AC 24V AC Coil LC1K1610B7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 58mm |
| Model | LC1K1610B7 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1K |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 16A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 16A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates with a 24V AC coil voltage for control circuits.
- Designed with 3 poles and 3 normally open contacts for motor control applications.
- Supports a contact voltage rating of 690V AC and current of 16A.
- Mounts easily on DIN rails using a screw terminal type connection.
- Works reliably within a temperature range of -25°C to 50°C.
- Includes 1 auxiliary contact with 1 normally open configuration for added control options.
- Complies with UL and CSA standards ensuring safety and quality.
- Compact dimensions include length 58mm, width 45mm, and depth 57mm.
Product Description
Schneider Electric LC1K1610B7 is a high-quality motor control contactor designed for reliable switching of electrical loads in industrial and commercial environments. Featuring a 3-pole configuration and a coil voltage of 24V AC, this contactor can safely operate motor circuits with contact ratings of 16A at 690V AC.
The device is engineered for DIN rail mounting and utilizes screw terminal connections to facilitate easy installation and maintenance. Operating temperature ranges from -25°C to 50°C make it suitable for demanding environments.
This contactor includes one auxiliary contact configured normally open, providing additional control functionality. It meets UL and CSA safety standards, supporting robust industrial applications such as conveyor systems, lifts, compressors, pumps, mixers, and various squirrel cage motor controls.
With compact dimensions of 58mm length, 45mm width, and 57mm depth, it is space-efficient and designed for integration into automated control panels. As part of Schneider Electric's LC1K series, it assures durability and excellent electrical performance.
The contactor supports AC1 and AC3 utilization categories, suitable for resistive loads as well as motor switching while running, ensuring versatile application in industrial automation and motor control systems.
Operates on 24V AC coil voltage for precise control. 3 poles with 3 normally open contacts ensure effective switching. Rated for 16A current at 690V AC contact voltage. DIN rail mount with screw terminals for secure installation.
Wide operating temperature range from -25°C to 50°C. Includes 1 auxiliary normally open contact for additional control. Complies with UL and CSA certifications for quality assurance. Compact size optimized for panel mounting.
Designed for motor control applications including squirrel cage motors and resistive loads. Part of LC1K series designed by Schneider Electric for industrial automation. Explore a wide range of Contactors and automation solutions at EnvMart to meet diverse industrial electrical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor operates with a coil voltage of 24V AC, suitable for control circuits.
It has a current rating of 16A, making it suitable for various motor control applications.
The maximum contact voltage for this contactor is 690V AC.
This model features a 3-pole configuration, allowing for effective motor control.
It is designed for DIN rail mounting, utilizing screw terminal connections for secure installation.
The contactor operates reliably within a temperature range of -25°C to 50°C.
Yes, it includes one auxiliary contact configured as normally open (1 NO) for additional control options.
It complies with UL and CSA standards, ensuring safety and quality in its applications.
This contactor is designed for motor control applications, including squirrel cage motors and various industrial automation tasks.
The dimensions of this model are 58mm in length, 45mm in width, and 57mm in depth.
It supports AC-1 and AC-3 utilization categories, suitable for resistive loads and motor switching applications.
The model number of this contactor is LC1K1610B7, part of Schneider Electric's LC1K series.
