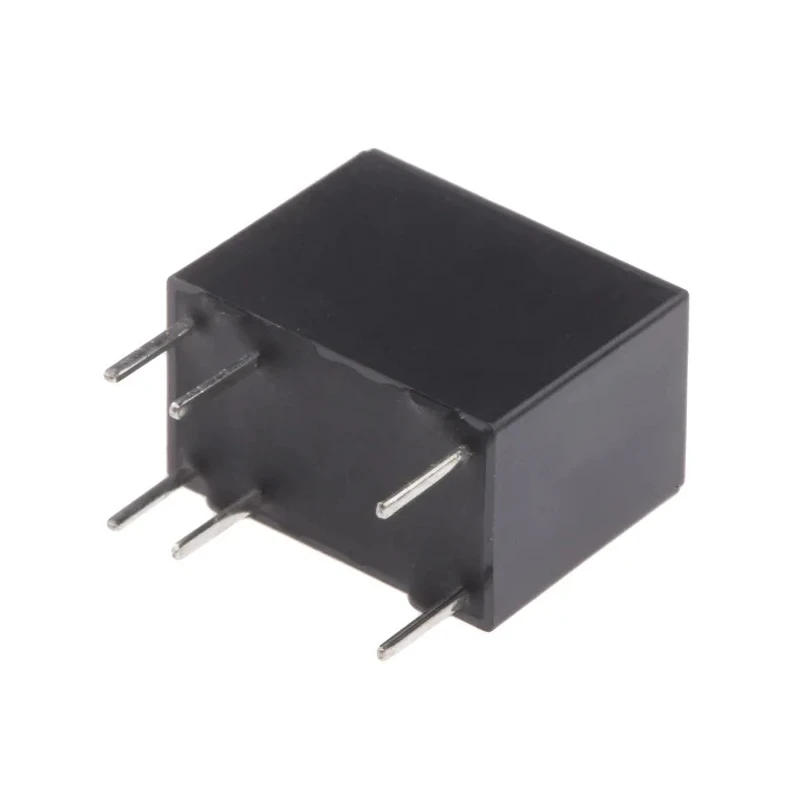

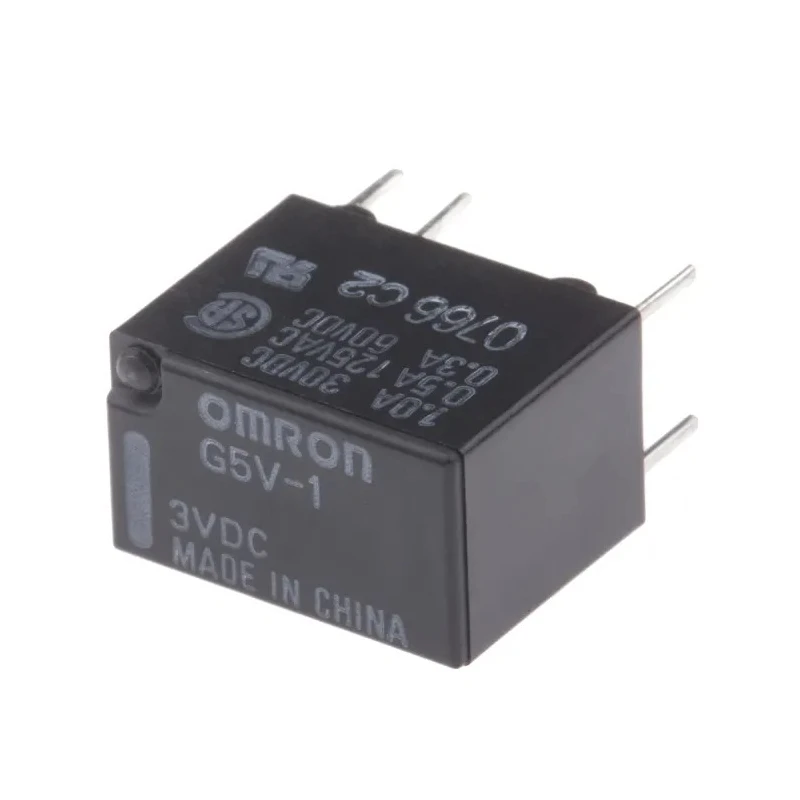

Omron PCB Signal Relay, 3V dc Coil, 1A Switching Current, DPDT Contact Configuration G5V-1 3DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 10mm |
| Model | G5V-1 3DC |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 60Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
Key Features
- Compact ultra-miniature design measuring 12.5 x 7.5 x 10 mm.
- Fully sealed construction ensures reliability in various environments.
- Nominal coil power consumption of 150mW for energy efficiency.
- Gold plated contacts provide enhanced conductivity and corrosion resistance.
- Operational temperature range from -40°C to 70°C suitable for diverse applications.
- Supports switching AC voltage up to 125V and DC voltage up to 60V.
- Mount type is PCB with solder terminal connections for easy assembly.
- Coil resistance of 60 Ohms and coil power of 150mW optimizes performance.
Product Description
Omron G5V-1 3DC PCB Signal Relay is a high-sensitivity, ultra-miniature relay designed for precise switching in industrial, automation, laboratory, and electronics applications. It operates with a 3V dc coil voltage and uses a DPDT contact configuration capable of switching currents up to 1A. The compact dimensions of 12.5 x 7.5 x 10 mm (LxWxH) enable integration into tightly constrained circuit boards.
This relay features a fully sealed construction which provides enhanced durability and protection against environmental factors. The coil power consumption is nominal at 150mW, ensuring energy-efficient operation. Contacts are gold plated to enhance conductivity and resist corrosion, expanding the relay’s reliability and lifespan in various operational conditions.
Designed for a broad operational temperature range from -40°C to 70°C, this signal relay is suitable for a variety of industrial and commercial environments including automation control systems, electronic devices, and HVAC controls. It supports switching AC voltages up to 125V and DC voltages up to 60V, providing flexible usage scenarios.
Mounting is intended for PCBs with solder terminal types to allow straightforward assembly in electronic manufacturing. Coil resistance measures 60 Ohms, optimized for dependable coil performance at the rated voltage. This product complies with RoHS standards, reinforcing its environmentally responsible design and manufacture.
Typical industrial applications include electrical control panels, machinery automation, signal switching, and electronic instrumentation where compact size and reliability are critical.
Compact ultra-miniature design measuring 12.5 x 7.5 x 10 mm. Fully sealed construction prevents contamination and enhances durability. Gold plated contacts reduce contact resistance and improve signal integrity. Energy efficient 150mW coil power with 60 Ohm coil resistance.
Wide operating temperature range: -40°C to 70°C for harsh environments. Supports switching currents of 1A at up to 125V AC or 60V DC. PCB mount with solder terminals provides easy installation. Compliant with RoHS environmental standards.
Explore a wide range of Signal Relays and industrial electronic components at EnvMart for dependable industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 1A.
The coil voltage for this relay is 3V dc.
The relay measures 12.5 mm in length, 7.5 mm in width, and 10 mm in height.
It uses a DPDT (Double Pole Double Throw) contact configuration.
The operational temperature range is from -40°C to 70°C.
The coil resistance is 60 Ohms.
It supports switching AC voltages up to 125V and DC voltages up to 60V.
This relay is designed for PCB mounting with solder terminal connections.
The nominal coil power consumption is 150mW.
The contacts are gold plated to enhance conductivity and corrosion resistance.
Yes, this relay complies with RoHS standards.
It is suitable for industrial, automation, laboratory, and electronics applications.
