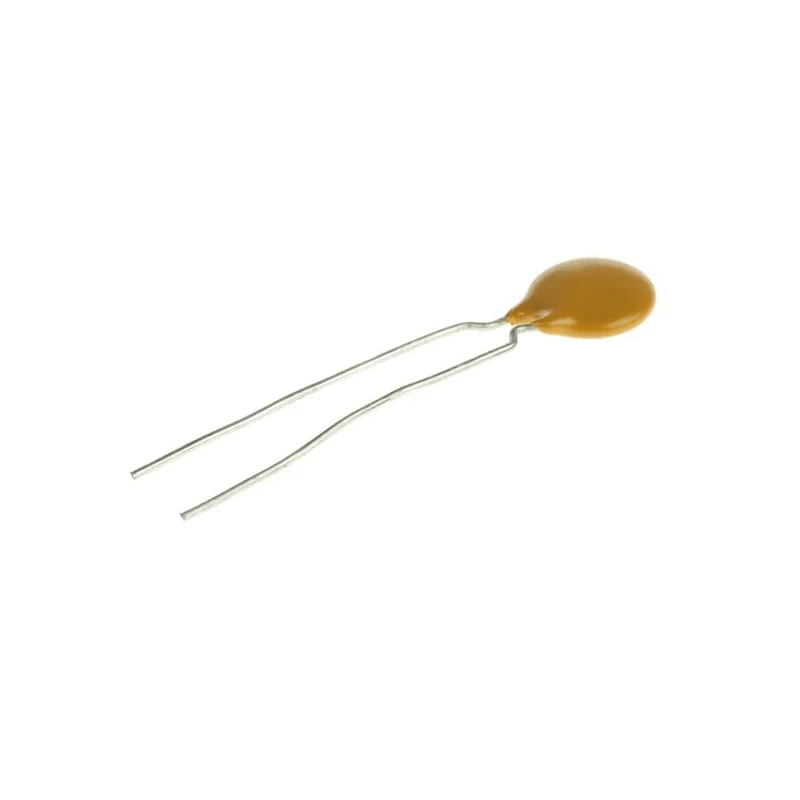

Vishay Single Layer Ceramic Capacitor 1 nF 1kV DC ±10% Y5R Dielectric, Radial Through Hole, 125°C Max Op. F102K39Y5RN6UK5R

Vishay F102K39Y5RN6UK5R single layer ceramic capacitor is engineered to meet demanding electronic circuit requirements with a capacitance of 1 nF and DC voltage rating of 1kV. The capacitor features a Y5R dielectric material, providing class II performance with ±10% tolerance and a maximum operating temperature of 125°C. Its radial terminal through-hole mount design offers ease of PCB assembly with kinked leads for secure fixing.

This capacitor is particularly suitable for industrial and electronic applications such as switched-mode power supplies (SMPS), high frequency ballasts, snubber circuits, and other high voltage environments. It delivers excellent reliability with low losses while maintaining high capacitance per volume in a compact disc package.

Key design attributes include a dissipation factor of 0.2% that optimizes energy efficiency, compliance with EC and RoHS standards assuring environmental and safety regulations, and dimensions that include a length of 10 mm, diameter of 10 mm, width of 4.5 mm, and height of 40 mm facilitating versatile mounting options.

Though not suited for mains suppression, it serves critical roles in power and signal conditioning in both commercial and industrial electronic circuits. Its robust temperature range from -30°C to 125°C ensures stable operation in diverse conditions.

High reliability with low losses and high capacitance in a small disc size. Dielectric type Y5R suitable for class II applications. Radial terminal type for through hole mounting. Operating temperature range from -30°C to 125°C.

Capacitance tolerance of ±10% ensuring stable performance. Disc package with dimensions: 10mm length, 10mm diameter, 4.5mm width, and 40mm height. Compliance with EC and RoHS standards. Dissipation factor of 0.2% optimizing energy efficiency.

Kinked lead design facilitates reliable PCB insertion. Ideal for use in switched-mode power supplies, high frequency ballasts, snubber, and high voltage circuits. Explore the Vishay range of capacitors and electronic components at EnvMart for industrial, electronics manufacturing, and prototyping needs.
