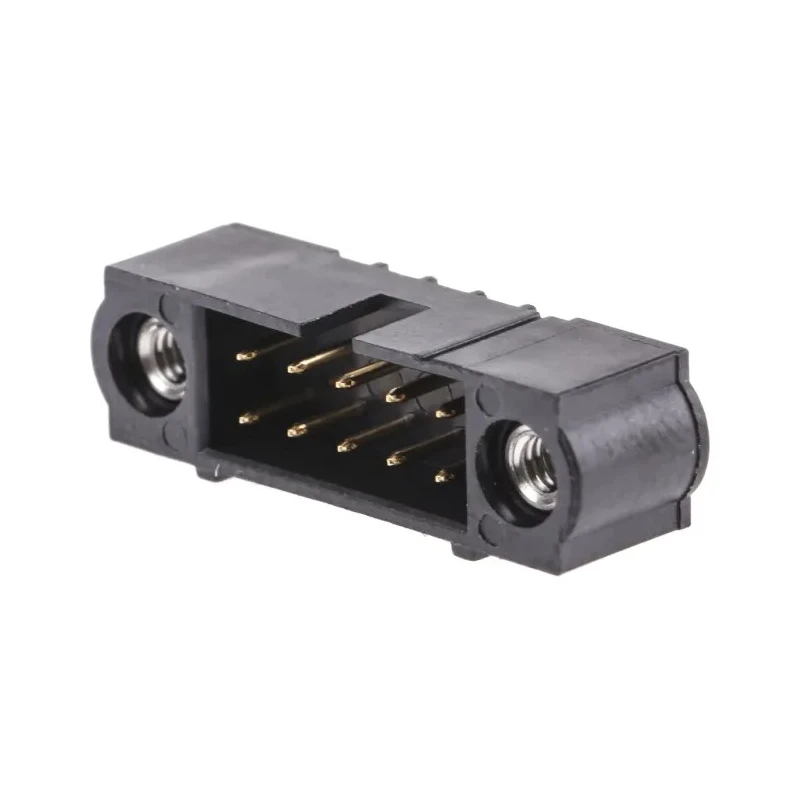

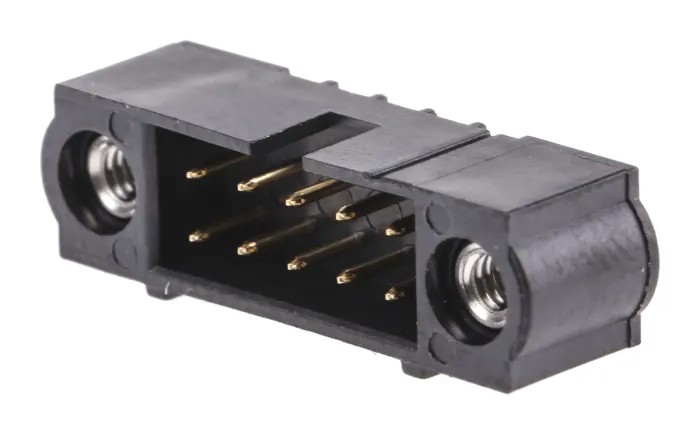

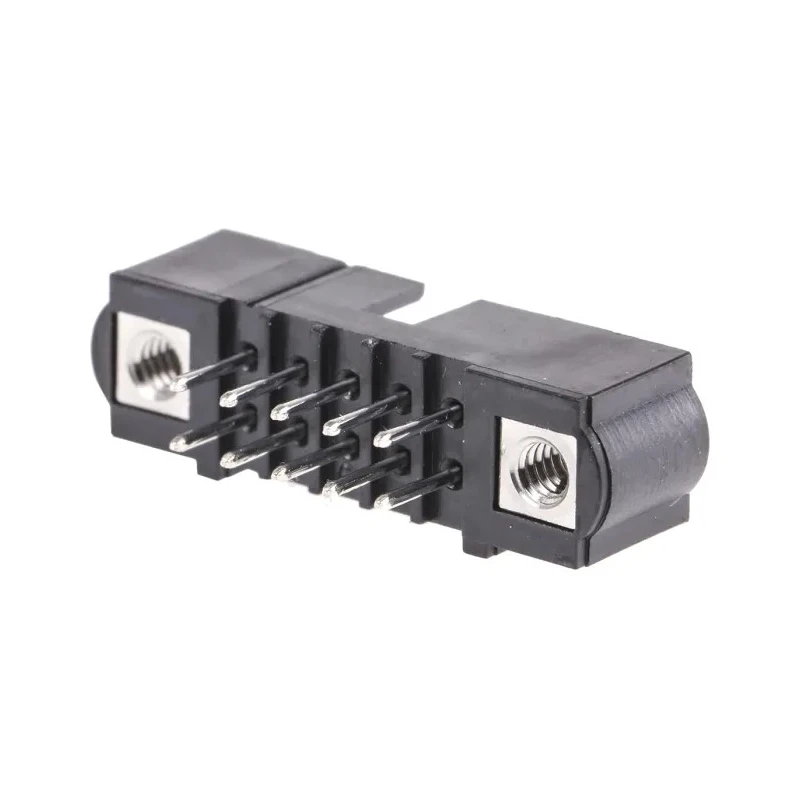

HARWIN Datamate J-Tek Series Straight Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 2 Row, Shrouded M80-5001042

HARWIN M80-5001042 Datamate J-Tek Series Straight Through Hole PCB Header features 10 male contacts arranged in 2 rows with a 2 mm pitch. The connector is shrouded, enhancing safety and preventing misalignment during installation. It is designed for board-to-board and wire-to-board applications, with a rated current of 3A and voltage of 120V, suitable for low voltage electronic assemblies.

The housing is made from Polyphenylene Sulphide, providing excellent chemical and thermal resistance, while the contacts are constructed from Phosphor Bronze with gold plating to ensure low resistance and high durability. The tail pins are 3 mm long, designed for solder termination through the PCB.

This connector operates reliably within a wide temperature range from -55°C to 125°C, making it suitable for challenging industrial and electronic environments subject to vibration, shock, and harsh conditions.

HARWIN's high reliability four finger Beryllium Copper contacts provide a secure 4-finger clip connection, preserving electrical integrity over many mating cycles. The polarised moulding design facilitates error-free assembly and the connector mates compatibly with recognized industry equivalents, making it ideal for commercial off-the-shelf (COTS) electronic applications.

Current rating 3A for low power electronic use. Durable Polyphenylene Sulphide housing. Gold plated Phosphor Bronze contacts for corrosion resistance. Shrouded 2-row 10 contact, 2 mm pitch design. Temperature range -55°C to 125°C for harsh environments.

Straight orientation with through-hole mounting. Compatible with board-to-board and wire-to-board configurations. Polarised to prevent mis-mating. Reliable connection over multiple mating cycles. Manufactured in the United Kingdom.

This M80-5001042 PCB header from HARWIN is widely used in industrial electronics, laboratory equipment, telecommunications, and automotive electrical systems requiring robust, reliable connectors capable of withstanding mechanical stress and environmental extremes. It supports engineers and designers in creating safe, durable, and high-quality electronic assemblies.
