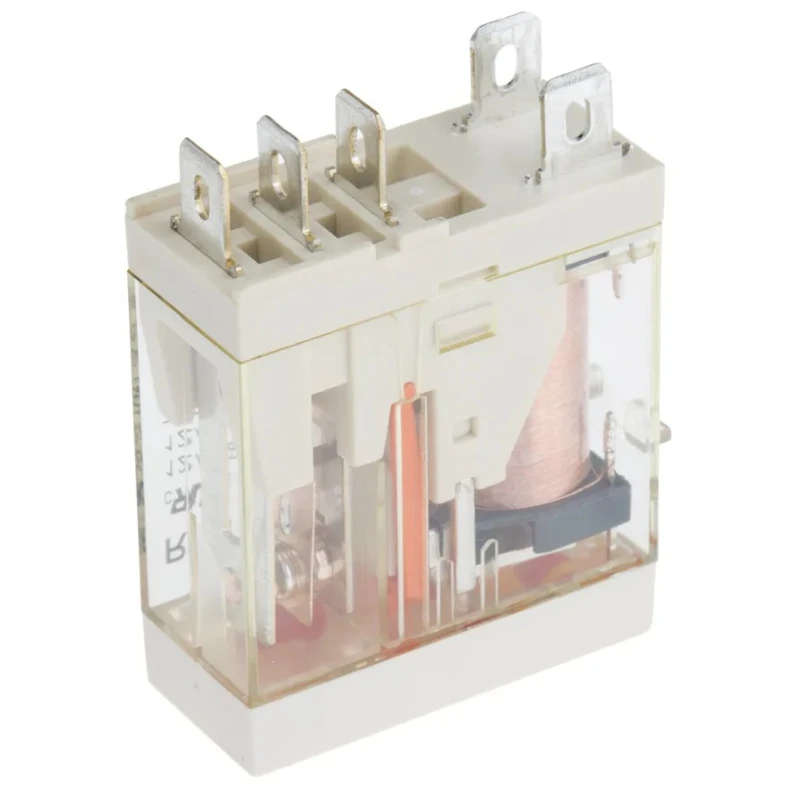

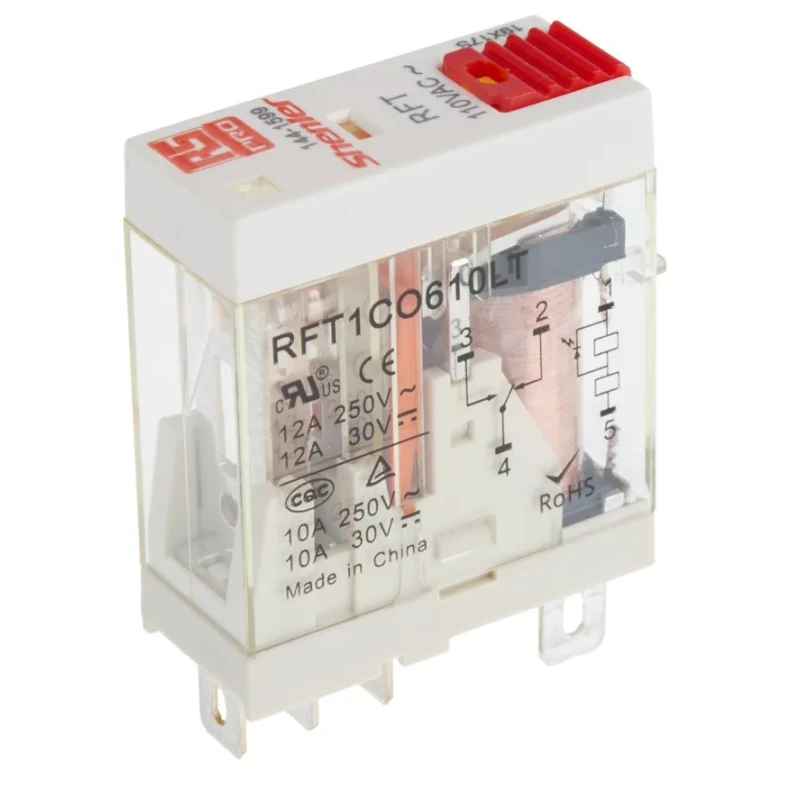

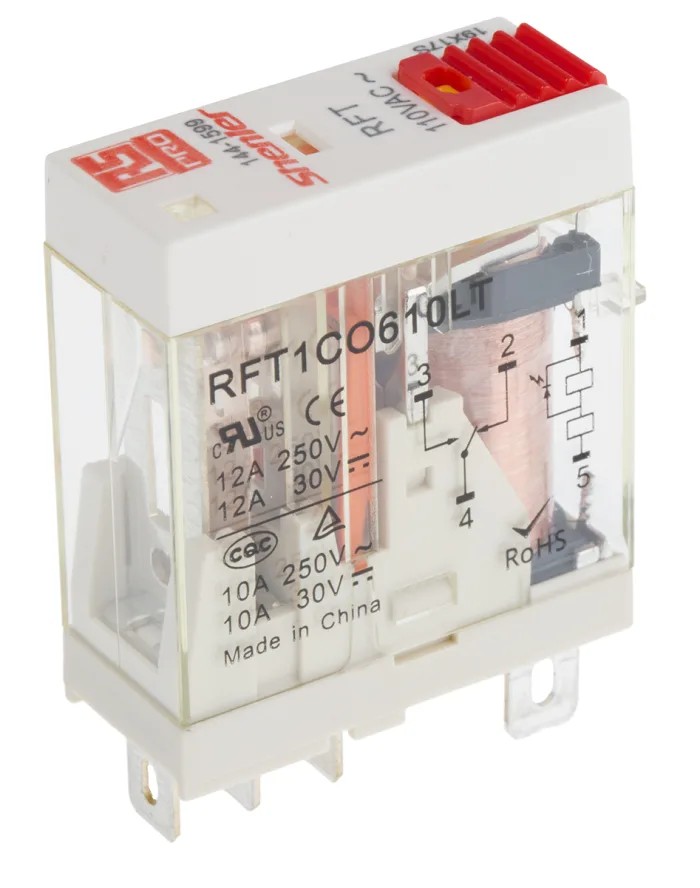

RS PRO Power Relay 110V AC Coil 12A Switching Current SPDT 3kVA Switching Power 144-1599
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 28mm |
| Length | 29mm |
| Model | 144-1599 |
| Width | 12.6mm |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 5.5kΩ |
| Coil Voltage | 110V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- Single pole double throw (SPDT) contact configuration provides versatile switching.
- Handles a maximum switching current of 12 Amps.
- Coil operates at 110V AC with 5.5kΩ resistance.
- Coil power consumption is 530mW ensuring energy efficiency.
- Silver alloy contact material reduces resistance to 50mΩ.
- Minimum and maximum operating temperatures range from -40°C to 55°C.
- Suitable for industrial applications, machine building, HVAC, and electrical enclosures.
- Designed in compliance with RoHS standards.
Product Description
RS PRO 144-1599 Power Relay features a 110V AC coil with a 12A switching current capacity and SPDT contact configuration designed for reliable performance in various industrial environments.
This relay’s compact size, with dimensions of 29mm length, 12.6mm width, and 28mm height, allows for easy integration into control panels and electrical enclosures. The coil resistance is 5.5kΩ with a coil power consumption of 530mW, optimizing power usage while maintaining strong electromagnetic performance.
Its silver alloy contacts ensure low contact resistance of 50mΩ, enhancing conductivity and longevity under heavy electrical loads.
Operable within a temperature range of -40°C to 55°C, it is suited for harsh industrial conditions, including manufacturing, HVAC systems, machine building, and automation control.
Single pole double throw (SPDT) contact configuration permits flexible switching options. 12A switching current enables operation of substantial electrical loads. Compliant with RoHS standards ensuring environmental and safety requirements.
Slim and compact footprint ideal for space-constrained installations. Designed for use in electrical, industrial, and automation applications requiring reliable switching. Country of origin is China, guaranteeing manufacturing to applicable industrial standards.
This power relay is part of the RS PRO range, widely recognized for high reliability and industrial-grade quality, ideal for professionals seeking dependable and efficient relay components.
Explore more power relays in the Electronics & Electricals > Relays & Contactors > Power Relay category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this power relay is 12 Amps.
This model operates with a coil voltage of 110V AC.
The relay features a single pole double throw (SPDT) contact configuration.
The dimensions of this relay are 29mm in length, 12.6mm in width, and 28mm in height.
The contact material of this relay is silver alloy, which helps reduce contact resistance.
The coil resistance is 5.5kΩ.
It can operate within a temperature range of -40°C to 55°C.
The coil power consumption is 530mW.
The contact resistance is 50mΩ.
It is suitable for industrial applications, machine building, HVAC systems, and electrical enclosures.
The relay can switch AC voltages up to 250V and DC voltages up to 30V.
Yes, it is designed in compliance with RoHS standards.
