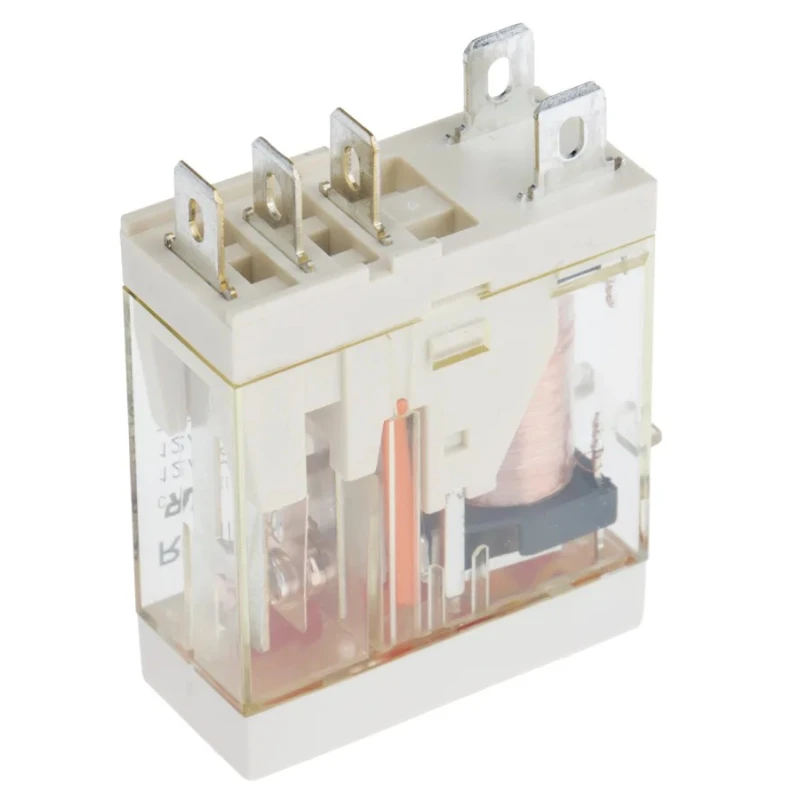

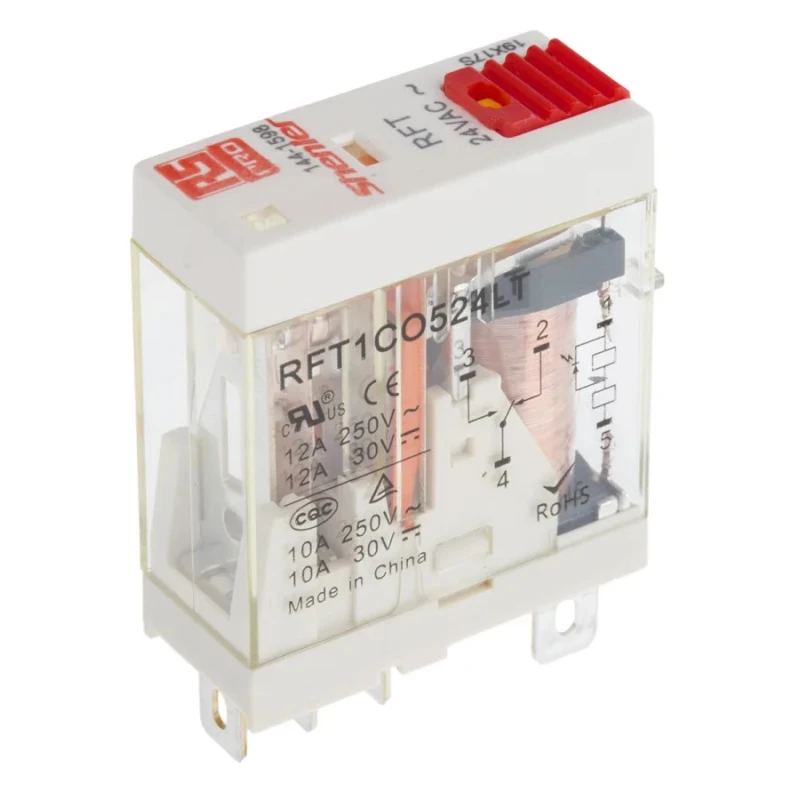

RS PRO Power Relay, 24V AC Coil, 12A Switching Current, SPDT Contact Configuration 144-1598
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 28mm |
| Length | 29mm |
| Model | 144-1598 |
| Width | 12.6mm |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 240Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- Operates with a coil voltage of 24V AC.
- Features Silver Alloy contacts for durability.
- Switching current rated at 12A for high capacity loads.
- Coil resistance of 240Ω ensuring consistent coil performance.
- Contact resistance as low as 50mΩ for efficient switching.
- Suitable operating temperature range from -40°C to 55°C.
- Compliant with RoHS standards for environmental safety.
- PCB pin terminal type for easy integration on circuit boards.
Product Description
RS PRO 144-1598 Power Relay features a 24V AC coil and supports a switching current of 12A with a SPDT contact configuration, suitable for diverse electrical and industrial control applications. Its compact size and reliable contact system ensure efficient operation in harsh environments.
This relay includes Silver Alloy contacts that provide excellent conductivity and long service life, with a contact resistance of 50mΩ to maintain minimal power loss. The coil resistance is 240Ω and coil power consumption is 530mW, contributing to stable activation performance.
Dimensions of 29mm length, 12.6mm width, and 28mm height make it ideal for tight PCB layouts with PCB pin terminals that facilitate secure mounting. It has an operating temperature range of -40°C to 55°C, allowing usage in both cold and moderately warm conditions.
RS PRO 144-1598 relay switches AC voltages up to 250V and DC voltages up to 30V, making it versatile for switching high and low voltage loads. Its RoHS compliance confirms adherence to environmental standards.
Operates with a coil voltage of 24V AC. Features Silver Alloy contacts for durability. Switching current rated at 12A for high capacity loads. Compact dimensions: 29mm length, 12.6mm width, and 28mm height. Coil resistance of 240Ω ensuring consistent coil performance.
Contact resistance as low as 50mΩ for efficient switching. Suitable operating temperature range from -40°C to 55°C. Compliant with RoHS standards for environmental safety. PCB pin terminal type for easy integration on circuit boards.
Designed for switching AC voltage up to 250V and DC voltage up to 30V.
This power relay is well suited for industrial automation, HVAC systems, electrical enclosures, machine building, and other demanding applications requiring reliable switching performance.
For comprehensive options in Power Relays, explore the RS PRO range and other related products available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V AC.
It is rated for a maximum switching current of 12A.
The dimensions are 29mm in length, 12.6mm in width, and 28mm in height.
This model features a Single Pole Double Throw (SPDT) contact configuration.
The contact resistance is as low as 50mΩ, which helps in efficient switching.
The coil resistance is 240Ω, ensuring consistent coil performance.
It can operate within a temperature range of -40°C to 55°C.
It can switch AC voltages up to 250V and DC voltages up to 30V.
The contacts are made of Silver Alloy, which enhances durability and conductivity.
The coil power consumption is 530mW.
Yes, it is compliant with RoHS standards for environmental safety.
It features PCB pin terminals for easy integration onto circuit boards.
