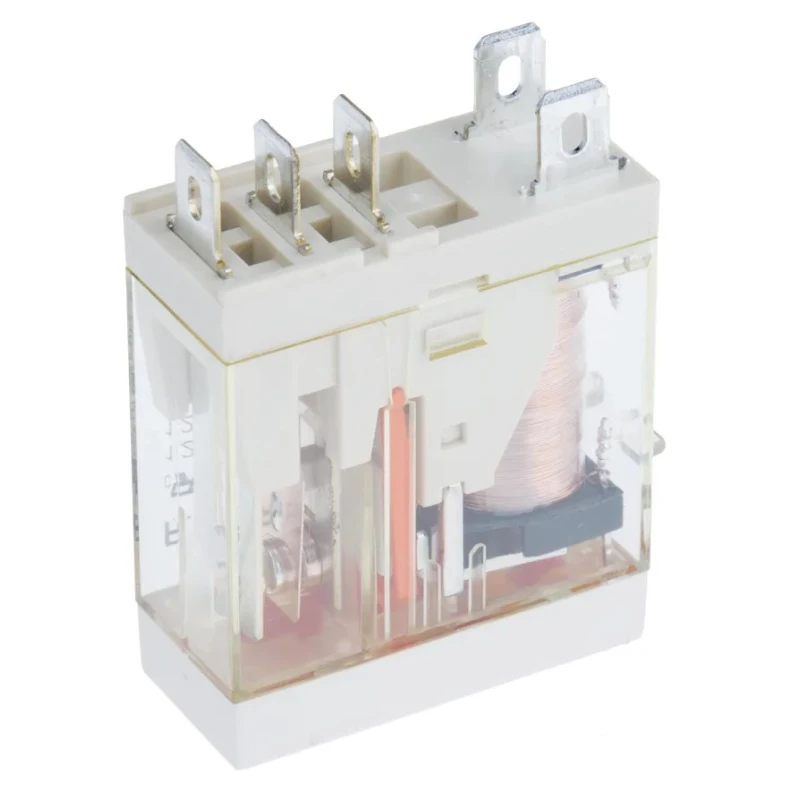

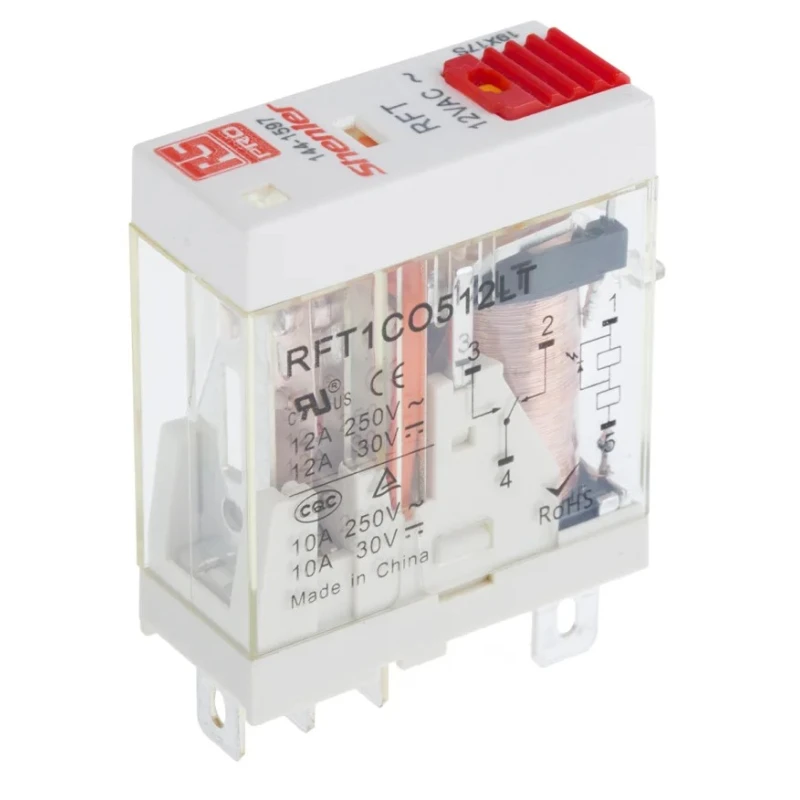

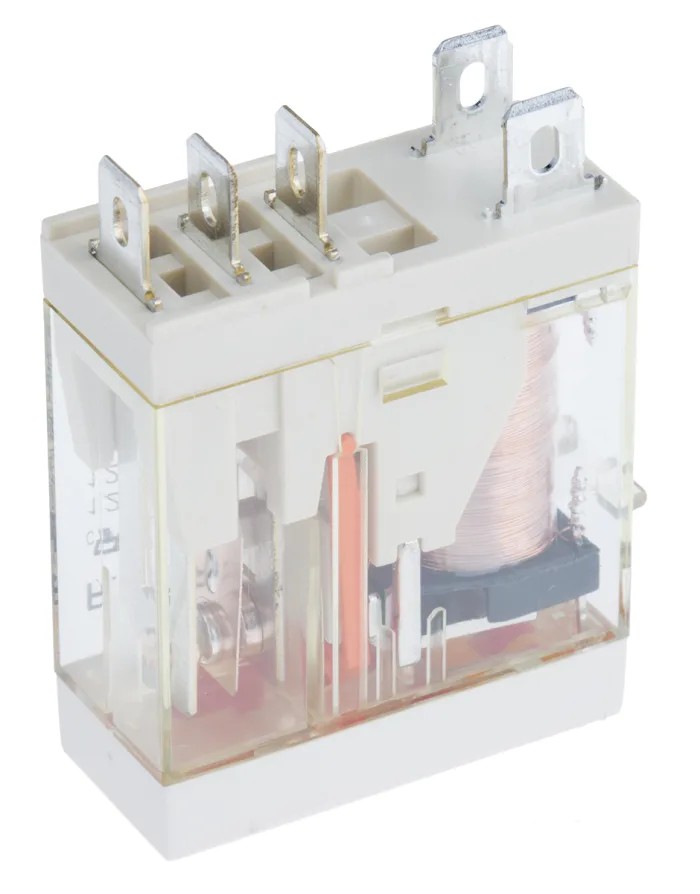

RS PRO Power Relay 12V ac Coil 12A Switching Current SPDT 144-1597
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 28mm |
| Length | 29mm |
| Model | 144-1597 |
| Width | 12.6mm |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 63Ω |
| Coil Voltage | 12V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- The relay features a Single Pole Double Throw (SPDT) contact configuration.
- It operates efficiently with a coil resistance of 63 ohms and coil power of 530mW.
- Designed to withstand temperatures from -40°C to 55°C for versatile environments.
- Compact size with dimensions of 29mm length, 28mm height, and 12.6mm width.
- Constructed with silver alloy contacts ensuring low contact resistance of 50 milliohms for optimal performance.
- Switching voltage capacity of up to 250V AC and 30V DC.
- PCB pin terminals enable easy mounting and integration.
- The product is RoHS compliant, supporting environmental safety standards.
Product Description
RS PRO 144-1597 Power Relay is a high-capacity, single-pole double throw (SPDT) relay designed for industrial, automation, and HVAC applications requiring reliable switching performance.
It features a 12V AC coil voltage and supports a switching current of up to 12A, making it suitable for controlling various electrical loads. The relay is engineered to operate over a temperature range of -40°C to 55°C, ensuring durability and stable operation in diverse environmental conditions.
Its compact design with dimensions 29mm in length, 28mm in height, and 12.6mm in width allows easy installation in tight spaces within electrical enclosures.
Equipped with PCB pin terminals for secure and straightforward board mounting, it also features silver alloy contacts that provide excellent electrical conductivity and mechanical robustness with a low contact resistance of 50 milliohms.
This RS PRO relay handles switching voltages up to 250V AC and 30V DC with a coil power of 530 milliwatts and coil resistance of 63 ohms, ensuring energy-efficient operation. The product complies with RoHS standards, supporting environmentally friendly manufacturing and use.
Widely used in industrial controls, manufacturing automation, HVAC systems, and machine building, this Power Relay provides dependable performance for critical switching needs. The relay’s SPDT contact configuration allows switching between two circuits.
Designed for high reliability with silver alloy contacts. Compact form factor suits integration in control panels and automation systems. Compliant with RoHS to ensure safety and regulatory adherence. Operates efficiently within a wide temperature range.
PCB pin terminals facilitate easy installation. Capable of handling up to 12A switching current. Explore a wide range of electrical relays and components in the Electronics & Electricals category at EnvMart for industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay can handle a switching current of up to 12A.
The coil voltage for this relay is 12V AC.
The relay has dimensions of 29mm in length, 28mm in height, and 12.6mm in width.
It features a Single Pole Double Throw (SPDT) contact configuration.
The maximum switching voltage is 250V AC and 30V DC.
The coil resistance is 63 ohms.
It is equipped with PCB pin terminals for easy mounting.
The relay is constructed with silver alloy contacts, ensuring low contact resistance.
The relay operates efficiently within a temperature range of -40°C to 55°C.
Yes, this relay is RoHS compliant, supporting environmental safety standards.
The coil power rating is 530 milliwatts.
This relay is suitable for industrial controls, manufacturing automation, HVAC systems, and machine building.
