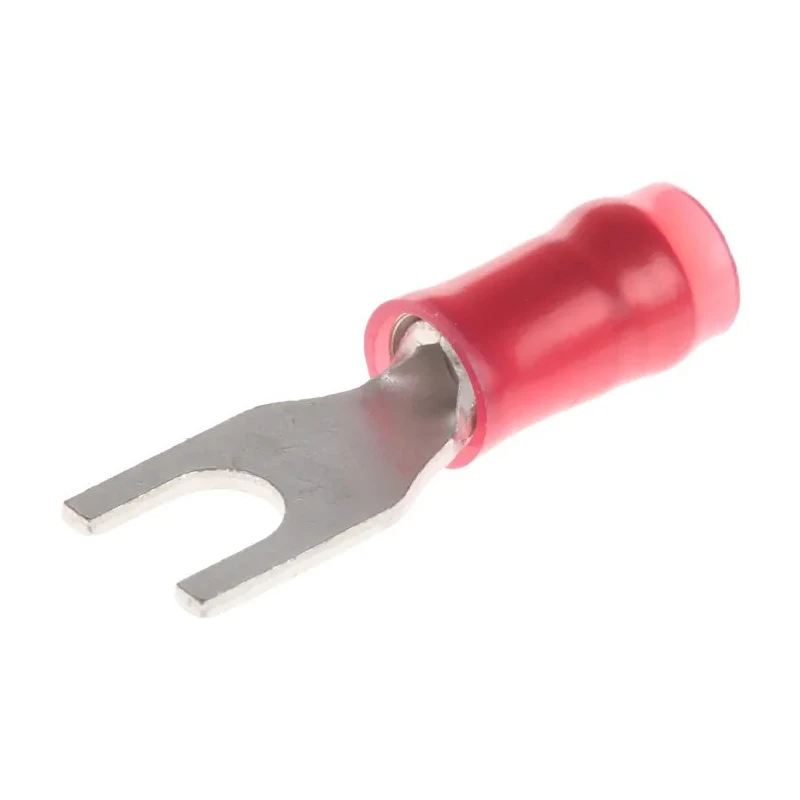

TE Connectivity PIDG Insulated Fork Terminal, 22 AWG to 16 AWG, M3.5 Stud Size Nylon Red 34541

TE Connectivity 34541 PIDG Insulated Fork Terminal is a high-quality insulated fork terminal with nylon insulation, designed for wire sizes ranging from 22 AWG to 16 AWG and featuring an M3.5 stud size. This fork terminal has a length of 21.49 mm and a width of 6.35 mm with a thickness of 0.79 mm. The red nylon sleeve provides colour coding for quick wire size identification and insulation protection.

The terminal features a precision-formed, high conductivity copper body with a tin-plated contact surface to provide reliable electrical conduction and corrosion resistance. Its copper sleeve around the wire barrel enhances wire insulation support, reducing the risk of fraying or conductor breakage after crimping. Serrations inside the wire barrel offer maximum contact and tensile strength, ensuring durable, secure connections.

The design includes a funnelled wire entry that prevents back wires and facilitates fast wire insertion, making this terminal suitable for high-speed production environments. It is compatible with specialized tool dies that maintain uniform insulation thickness and crimp pressure, leading to consistent and reliable crimps.

This PIDG spade terminal fulfills and exceeds many applications requirements such as instrumentation, lighting, power supplies, control and panel boxes, transportation equipment, lifting equipment, motors, aerospace, and appliance wiring systems. Although it does not carry specific standards or approvals, it meets rigorous performance expectations for demanding circuit environments.

High conductivity copper body ensures excellent electrical performance. Copper sleeve enhances wire insulation support and durability. Serrated wire barrel provides strong contact and tensile strength. Colour coded nylon sleeve assists in easy wire size and tooling identification.

Funnelled wire entry allows fast, reliable wire insertion and prevents strand damage. Designed for uniform and reliable crimping under pressure. Applicable in a broad range of industrial and electrical wiring applications.

Package includes one TE Connectivity PIDG Insulated Fork Terminal 34541. This terminal is made in the United States and supplied in new condition. For more components and technical products, explore the Wire Terminals & Splices category of EnvMart.
