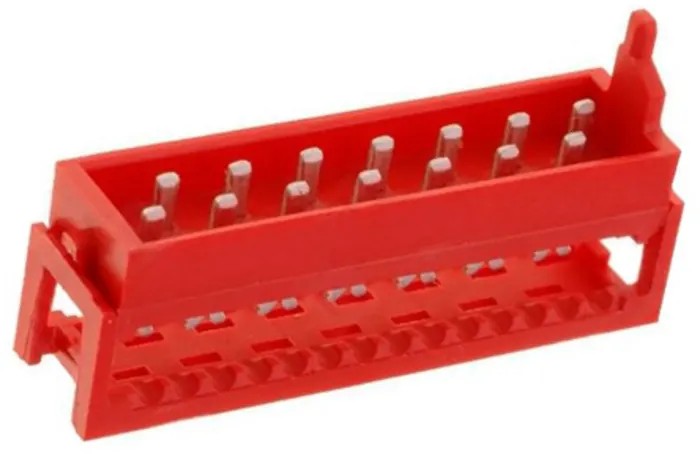

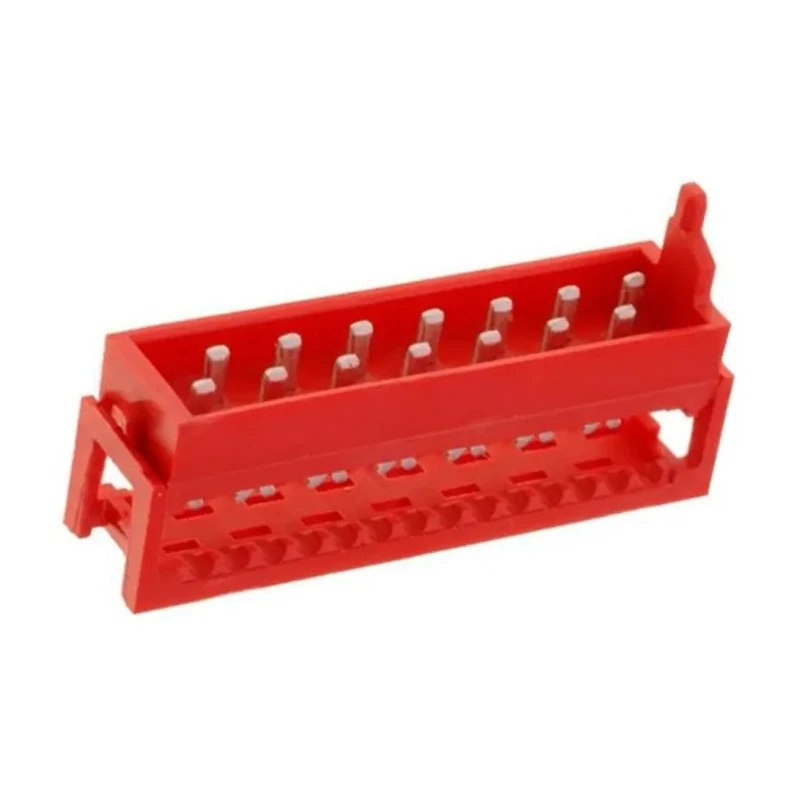

TE Connectivity 14-Way IDC Male-On-Wire Connector with 1.27mm Pitch, 1.5A, 230V AC, Micro-MaTch Series 1-215083-4

TE Connectivity 1-215083-4 14-Way IDC Male-On-Wire Connector is a Micro-MaTch series connector designed for efficient wire to board interconnections. The 14-way, 2-row design with a 1.27mm pitch makes it suitable for applications requiring compact and precise cable connections. It supports a current of 1.5A and an operating voltage of 230V AC.

The connector features phosphor bronze contacts with tin over nickel plating to prevent fretting corrosion and ensure a gas-tight connection, thereby improving the reliability of signal transmission. The connector housing is made from polyethylene terephthalate, providing robust insulation and mechanical stability.

The operating temperature range from -40°C to 105°C allows this connector to perform in diverse industrial environments. It is designed with a straight cable mount type and unshrouded male connector to facilitate easy installation in electronic assemblies.

A key design element is the preassembled cover that positions the ribbon cable correctly during the insulation displacement contact process. Polarization features incorporated into the connector prevent incorrect mating, safeguarding connection integrity.

Compact and space-saving Micro-MaTch IDC connector design. 14 contacts arranged in 2 rows with 1.27mm pitch. Rated for 1.5A current and 230V AC voltage. Phosphor bronze contact material with tin over nickel plating. Polyethylene terephthalate housing for durable insulation.

Operating temperature range from -40°C to 105°C. Straight orientation and cable mount type for installation flexibility. Preassembled cover ensures accurate ribbon cable positioning. Polarization features prevent mismatching during assembly.

Manufactured in Germany under high-quality standards.

This connector is widely used in industrial, laboratory, manufacturing, and commercial applications, including production equipment, robotics, control systems, automotive electronics, and audio devices. Its reliable mechanical and electrical characteristics make it suitable for harsh environments involving vibration and thermal variations.

For professionals requiring dependable and compact IDC connectors, the TE Connectivity 1-215083-4 offers a trusted solution compliant with multiple industrial demands. Explore more Connectors and electronic components at EnvMart for optimized electrical assemblies.
