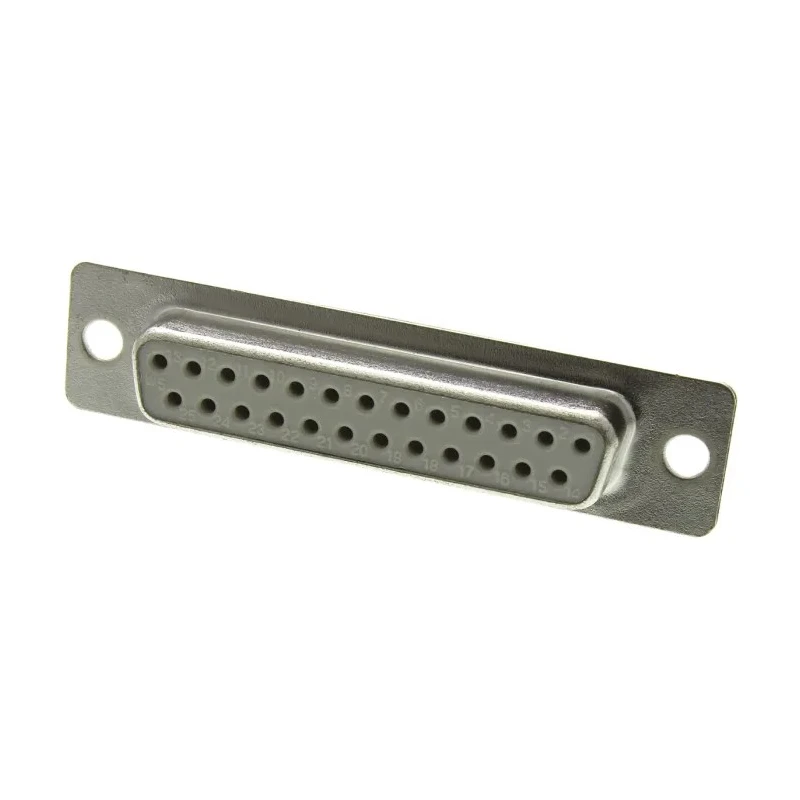

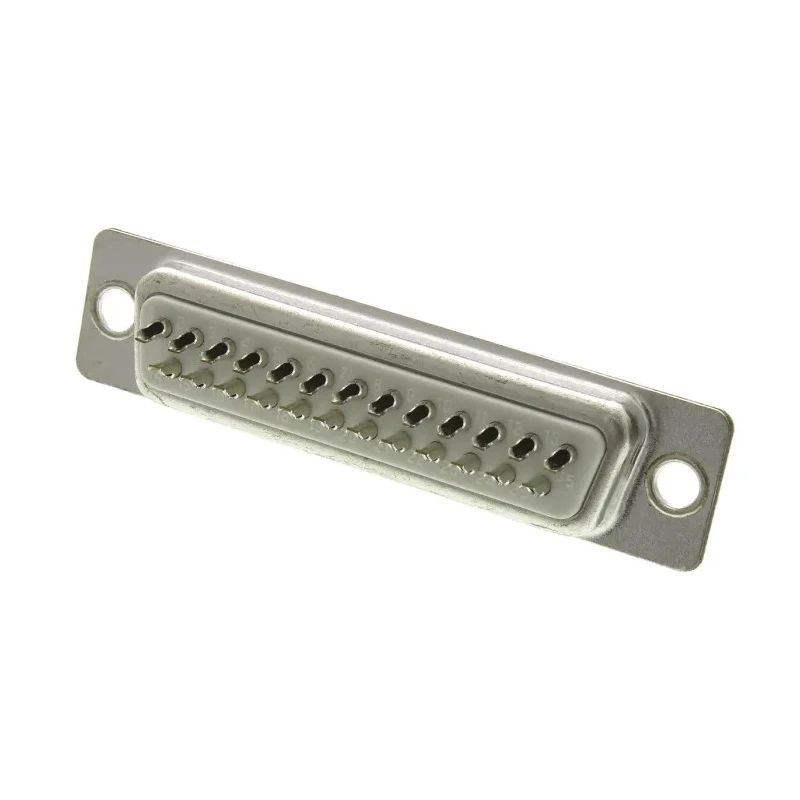

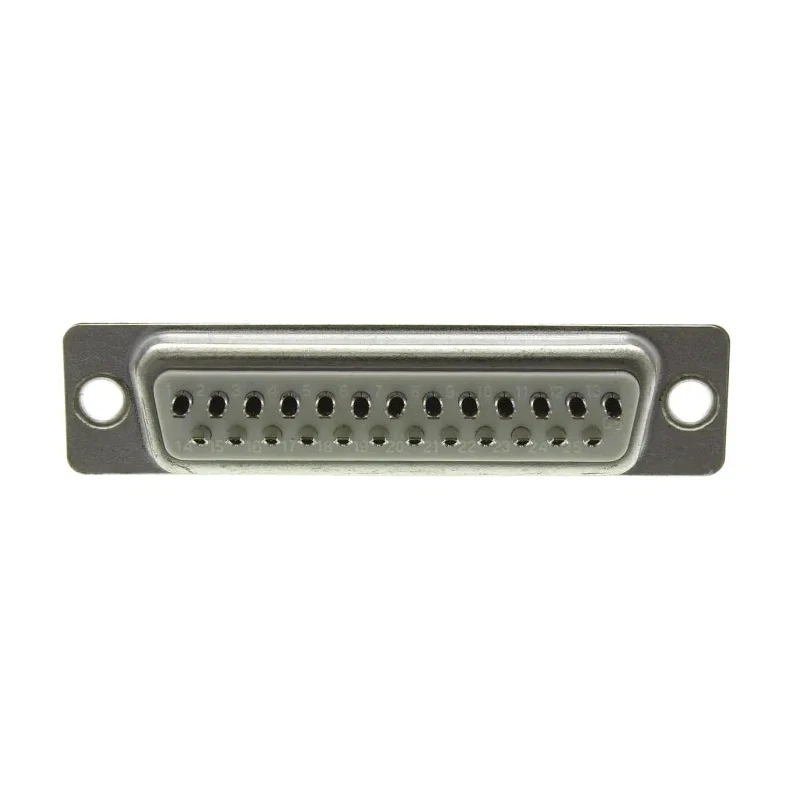

Amphenol Communications Solutions 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector A-DF 25 LL/Z

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector A-DF 25 LL/Z

Name: Amphenol Communications Solutions 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector A-DF 25 LL/Z
Brand: Amphenol Communications Solutions
SKU: 208243
Price: 1.2 USD
Availability: InStock



Category D-Sub Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	China
Voltage	500V
Brand	Amphenol Communications Solutions
Orientation	Straight
Current	3A
Model	A-DF 25 LL/Z
Mount Type	Panel Mount
Housing Material	Metal
Contact Material	Phosphor Bronze
Series	A-DF
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.77mm
Contact Plating	Gold
Number of Contacts	25
Contact Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	B

Key Features

The connector features 25 contacts with a 2.77 mm pitch for precise connectivity.
It is a straight orientation, panel mount type connector suitable for various installations.
Rated for 3A current and 500V voltage, providing robust electrical performance.
Housing is made of metal ensuring durability in harsh environments.
Termination is by solder, offering secure and stable connections.
The contacts are gold-plated phosphor bronze to ensure corrosion resistance and reliable conductivity.
Operates in extreme temperatures from -55°C to 105°C.
D-Sub shell size B with a female contact gender in a D-Sub connector type.

Product Description

ASSMANN WSW A-DF 25 LL/Z is a 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector designed for industrial and electronic applications requiring reliable and precise connectivity. It supports a current rating of 3A and voltage rating of 500V, suitable for many power and signal transmission needs.

This connector features a metal housing that provides excellent mechanical strength and protection against environmental factors. The contact pins are made from phosphor bronze and plated with gold, ensuring superior conductivity and resistance to corrosion. The connector is built with a solder termination type and includes mounting flanges with 3.05 mm holes to facilitate secure panel mounting.

Engineered to withstand a broad operating temperature range from -55°C to 105°C, this connector ensures stable performance in demanding industrial, laboratory, manufacturing, and electronic equipment scenarios such as instrumentation and data communication systems.

The D-Sub shell size B and female contact gender suit diverse setups where panel mount D-Sub connectors are mandated. These connectors are extensively used in electronics assembly, control panels, test equipment, and interface hardware.

The connector offers 25 contacts with 2.77 mm pitch ensuring reliable data and signal transmission. Robust metal housing provides mechanical durability. Gold-plated phosphor bronze contacts improve corrosion resistance and conductivity.

Supports current rating of 3A and voltage rating of 500V, suitable for mid-power applications. Solder termination type for consistent and secure electrical connections. Wide operating temperature range from -55°C to 105°C enables use in varied environments.

Panel mount design with mounting flanges for easy installation on equipment panels. D-Sub shell size B and female contact gender compliant with industry standards. Manufactured in China, ensuring quality control and reliability.

This connector is ideal for industrial automation, telecommunications, laboratory instrumentation, and other commercial electronic devices requiring dependable connector solutions. Browse the EnvMart Electronics & Electricals catalog for comprehensive D-Sub Connector offerings and related components.
