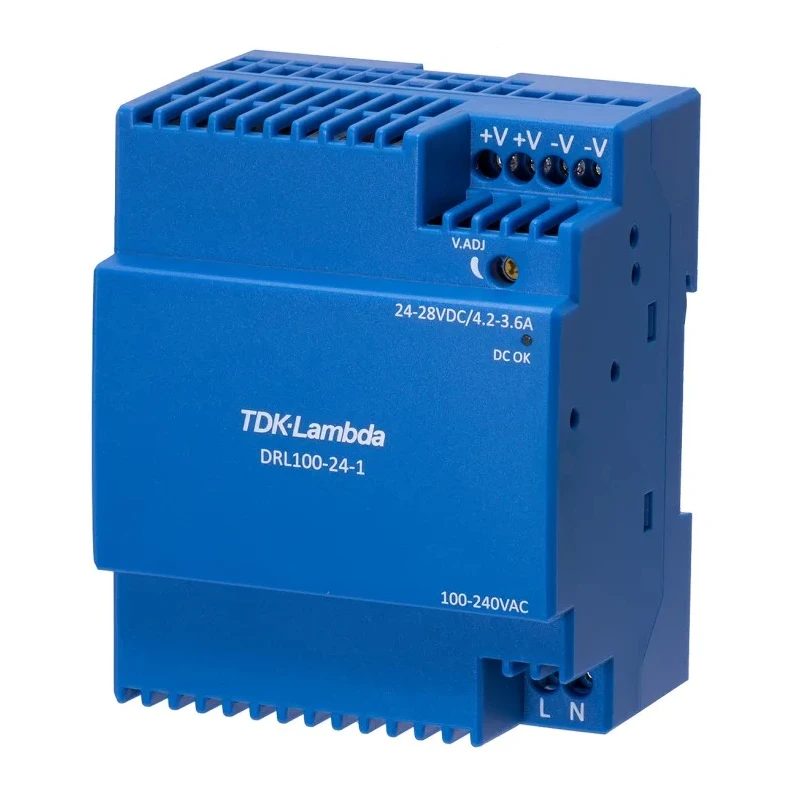

TDK-Lambda DRL-100-24-1 Switched Mode DIN Rail Power Supply 264V AC Input 24V DC 4.2A Output 100W

TDK-Lambda DRL-100-24-1 is a switched mode DIN Rail power supply designed to provide reliable 24V DC output with a 4.2A current capacity and 100W power rating. It accepts a wide universal AC input voltage range from 85V to 264V AC and operates within a temperature range of -20°C up to +71°C, making it suitable for various challenging industrial environments.

The low profile and compact dimensions (91mm height, 72mm width, 55.6mm depth) allow easy and space-saving DIN Rail mounting in electrical panels and automation systems. It features double insulation and Class II safety rating, eliminating the need for an earth connection. The NEC Class 2 compliant output conforms to UL 1310 standards, ensuring safe operation by limiting output currents during fault conditions.

This power supply is compliant with multiple recognized certifications including IEC 60068-2-27, IEC 60068-2-6, UL 508, and UL 60950-1, supporting standards for temperature shock, vibration, and electrical safety.

Designed specifically for industrial and building automation applications, it supports use cases such as building control systems, security and surveillance setups, climate control instrumentation, smart home automation, and renewable energy systems. The high efficiency (~90%) provides energy savings and reduces heat generation, improving system reliability and lifespan.

Provides a low profile DIN Rail form factor suitable for industrial applications. Supports universal AC input voltage range from 85V to 264V AC for versatile installation. Features a single 24V DC output delivering up to 4.2A output current.

High efficiency of approximately 90% ensures reduced energy waste and heat generation. Operating temperature range from -20°C to +71°C supports varied environmental conditions. Includes double insulation with Class II input safety rating eliminating earth connection requirement.

Conforms to IEC 60068-2-27, IEC 60068-2-6, UL 508, UL 60950-1, and UL 1310 safety standards. Compact dimensions of 91mm height, 72mm width, and 55.6mm depth optimize installation space. The NEC Class 2 compliant output limits output currents under fault conditions for safety.

Designed for building control, security and surveillance, climate controls, smart home, and renewable energy applications. Explore the full range of power supplies and DIN Rail power solutions on EnvMart for industrial, commercial, and laboratory electrical power distribution needs.
