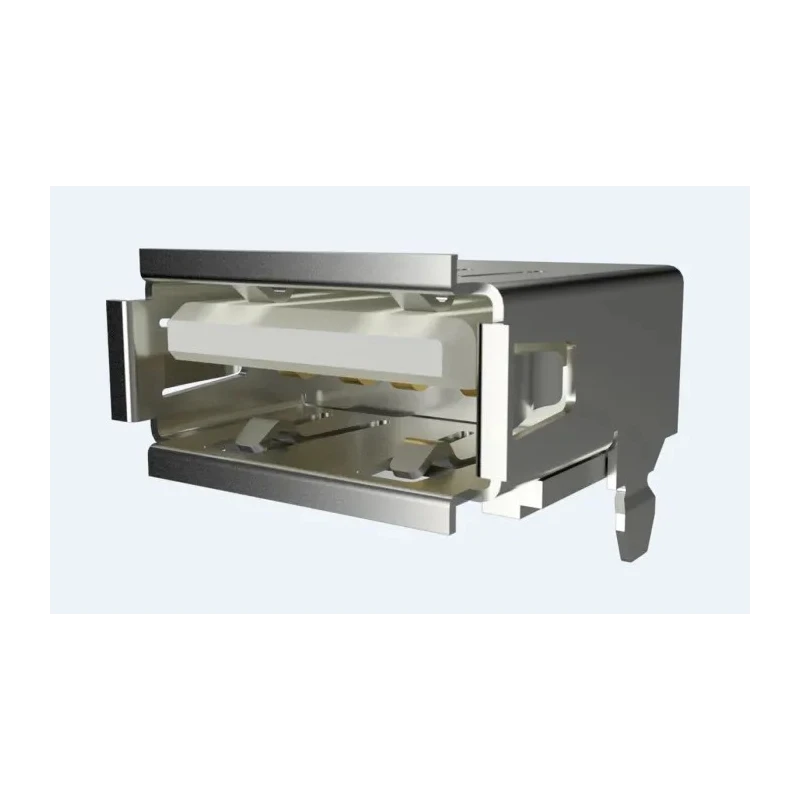

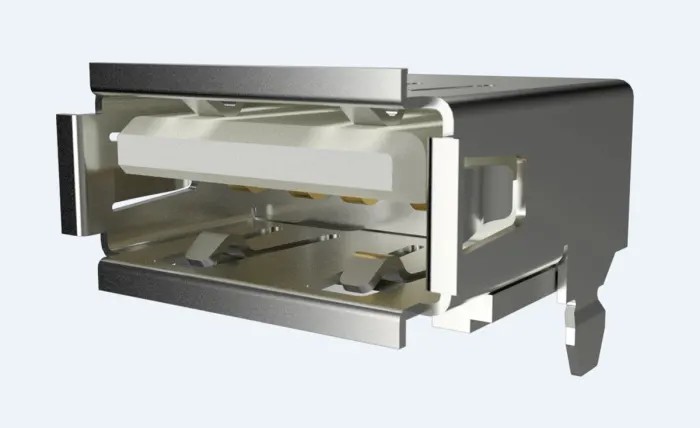

Amphenol Communications Solutions Straight Surface Mount Female USB Type A Connector USB 2.0 87583-2010RLF

Amphenol Communications Solutions model 87583-2010RLF is a surface mount female USB Type A connector designed for USB 2.0 applications. It offers a high-speed data transfer rate of 480 Mbps and supports a high current rating of up to 2.9A, making it ideal for high-power electronic applications. The straight orientation and surface mount design facilitate easy integration onto PCBs.

This USB connector is constructed with copper alloy contacts that ensure excellent electrical conductivity and durability. Its housing is made from high temperature thermoplastic material to withstand challenging operating environments with temperatures ranging from -55°C to 85°C. The design also includes PCB boardlocks that ensure secure retention during the soldering process.

The connector is engineered for durability, withstanding up to 12,000 mating cycles, suitable for repeated connection and disconnection in industrial and consumer electronics environments. EMI/ESD shielded versions may be available for enhanced electromagnetic compatibility.

Applications of this connector span consumer products such as digital cameras, MP3 players, mobile phones, notebooks, tablets, business equipment, automotive, and medical devices. It is compliant with the USB 2.0 specification but does not hold hazardous area certification.

The product series is 87583-xxxxRLF, with no additional standards or approvals explicitly stated. It is intended for use in both industrial and instrumentation markets, offering design flexibility due to the availability of different mounting and orientation configurations.

Supports USB 2.0 protocol with high-speed data rates. Current rating of up to 2.9A ensures suitability for power-intensive devices. Robust design with high mating cycle durability. Temperature resilience from -55°C to +85°C.

High temperature thermoplastic housing maximizes reliability. PCB boardlocks for mechanical stability during soldering. Surface mount and straight orientation ease PCB layout design. Copper alloy contact material ensures excellent conductivity.
