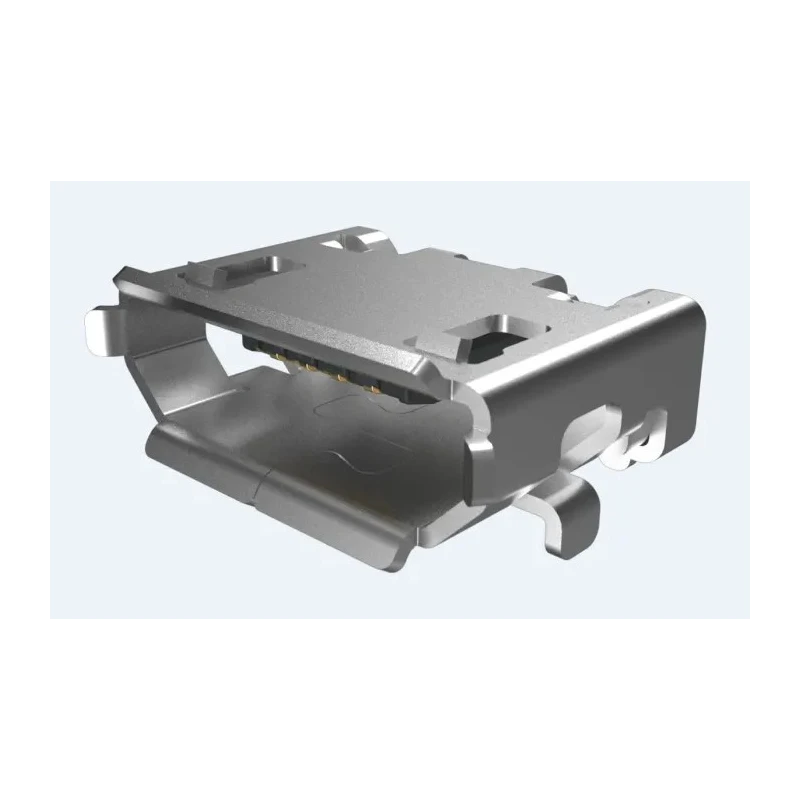

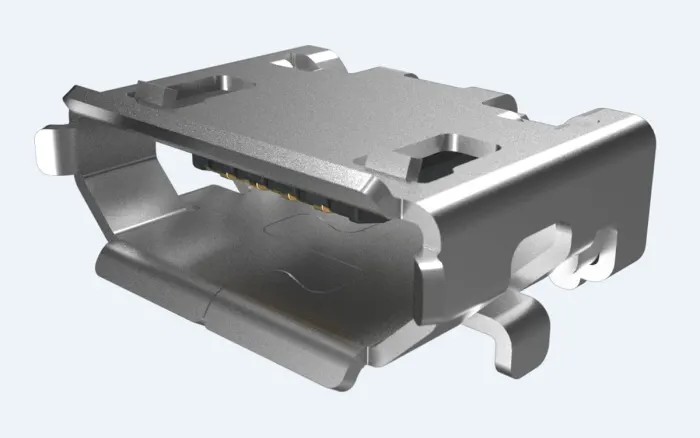

Amphenol Communications Solutions Right Angle Surface Mount Female 1 Port Micro USB Type B Connector USB 2.0 10118194-0001LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 1A |
| Model | 10118194-0001LF |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 101xxxxx-0001LF |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| USB Type | Micro USB Type B |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Supports USB 2.0 specification for high-speed data transfer.
- Right angle orientation provides space-saving PCB layout.
- Surface mount type ensures strong soldering and ease of assembly.
- Constructed with high temperature UL94V-0 thermoplastic housing for durability.
- EMI and ESD shielding provided by metal shield for signal integrity.
- Rated for 1A current and 100V voltage for reliable electrical performance.
- Durable copper alloy contacts withstand up to 10,000 insertion cycles.
- Operates reliably between -55°C and 85°C temperature range.
Product Description
Amphenol Communications Solutions 10118194-0001LF is a right angle, surface mount female USB connector designed to provide robust and compact connection for various electronic devices. It supports USB 2.0 standard ensuring fast and reliable data communication and charging capabilities.
The Micro USB Type B connector features a metal shield for full EMI and ESD protection, enhancing signal reliability. The housing is made from high temperature, flame-retardant UL94V-0 thermoplastic material, which ensures long-term durability and safety in various operating environments.
Rated for a current of 1 ampere and voltage of 100 volts, this connector suits a wide range of industrial and consumer electronic applications. Contacts are made from copper alloy, engineered to withstand up to 10,000 insertion cycles while maintaining strong receptacle to PCB retention.
Operating temperature range from -55°C to 85°C makes it suitable for use in varied climatic conditions. The right angle orientation aids in conserving PCB space and easing device assembly.
This Micro USB 2.0 receptacle supports OTG (On-The-Go), facilitating device-to-device communication without the need for a PC host, ideal for smartphones, MP3 players, smart watches, tablets, GPS devices, and other portable electronics.
Supports USB 2.0 specification for high-speed data transfer. Right angle orientation for space-saving design. Surface mount to PCB with solder termination. High temperature UL94V-0 thermoplastic housing for durability. Integrated EMI and ESD shielding for signal integrity.
Copper alloy contacts rated for 1A current. 10,000 insertion cycles for longevity. Wide operating temperature range from -55°C to 85°C. OTG support for mobile and industrial communications. Applicable in consumer electronics and industrial devices.
The product's design flexibility suits diverse mounting and termination requirements, suitable for electronics manufacturing, industrial automation, consumer gadgets, and communication devices.
Browse more USB Connectors and related components on EnvMart for optimized selections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a voltage of 100 volts, ensuring reliable electrical performance.
This connector is rated for a current of 1 ampere.
It supports the USB 2.0 specification, enabling high-speed data transfer.
It operates reliably between -55°C and 85°C, making it suitable for various climatic conditions.
This model features a right angle orientation, which aids in conserving PCB space during assembly.
The contacts are made from copper alloy, designed to withstand up to 10,000 insertion cycles.
It is a surface mount type, designed for solder termination to the PCB.
Yes, it includes a metal shield for EMI and ESD protection, enhancing signal reliability.
This connector is a female type, designed for receiving a male USB plug.
It is applicable in various consumer electronics and industrial devices, supporting OTG for device-to-device communication.
The country of origin for this product is India.
The model number is 10118194-0001LF, which identifies this specific USB connector.
