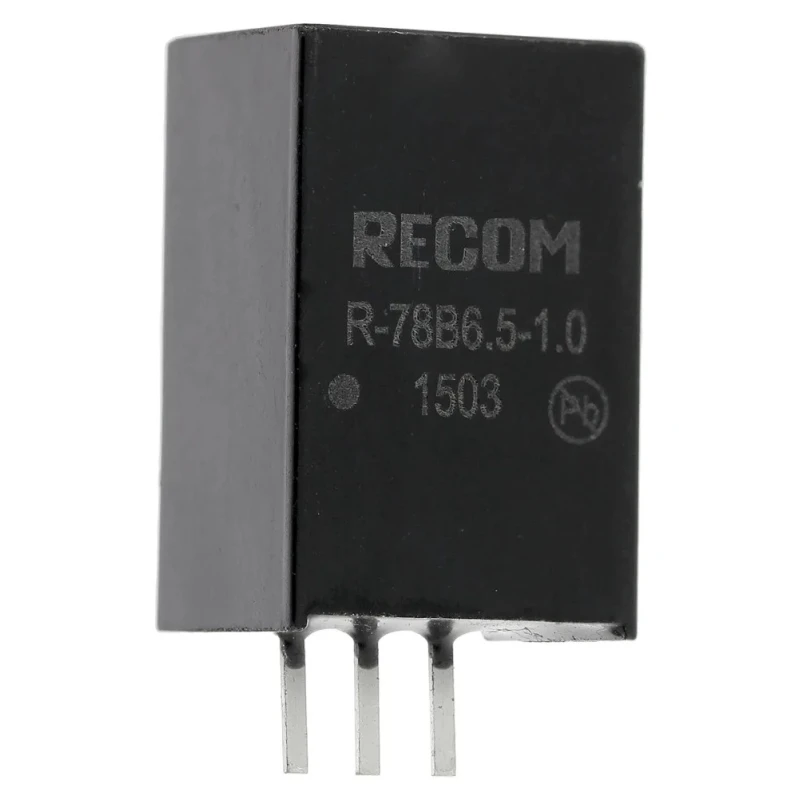

Recom Switching Regulator Through Hole, 6.5V DC Output Voltage, 1 A Output Current, 6.5W Power R-78B6.5-1.0

Free Delivery in India | Lowest Global Shipping Charges

Recom Switching Regulator Through Hole, 6.5V DC Output Voltage, 1 A Output Current, 6.5W Power R-78B6.5-1.0

Name: Recom Switching Regulator Through Hole, 6.5V DC Output Voltage, 1 A Output Current, 6.5W Power R-78B6.5-1.0
Brand: Recom
SKU: 208039
Price: 18.53 USD
Availability: InStock



Category Switching Regulator Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Brand	Recom
Power	6.5W
Efficiency	0.94%
Length	11.5mm
Model	R-78B6.5-1.0
Depth	17.5mm
Gross Weight	4g
Width	8.5mm
Mount Type	Through Hole

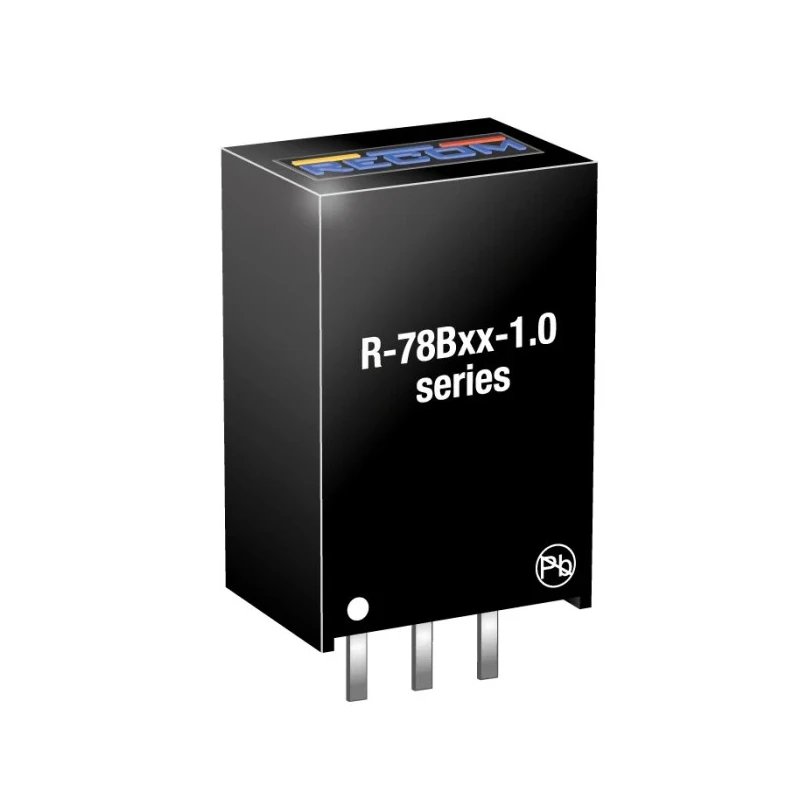

Series	R-78B-1.0
Output Current	1A
Maximum Operating Temperature	85°C
Package Type	SIP
Load Regulation	0.004 %
Minimum Operating Temperature	-40°C
MTBF	6584000h
Number of outputs	1
Ripple and Noise	15mV Pk-Pk
Maximum Input Voltage	1.8V dc
Line Regulation	0.002
Standards/Approvals	RoHS
Minimum Input Voltage	32V dc
Number of Pins	3
Output Voltage 1	6.5V dc

Key Features

Through hole mount type suitable for stable PCB installation.
Delivers 6.5W power with high efficiency up to 94%.

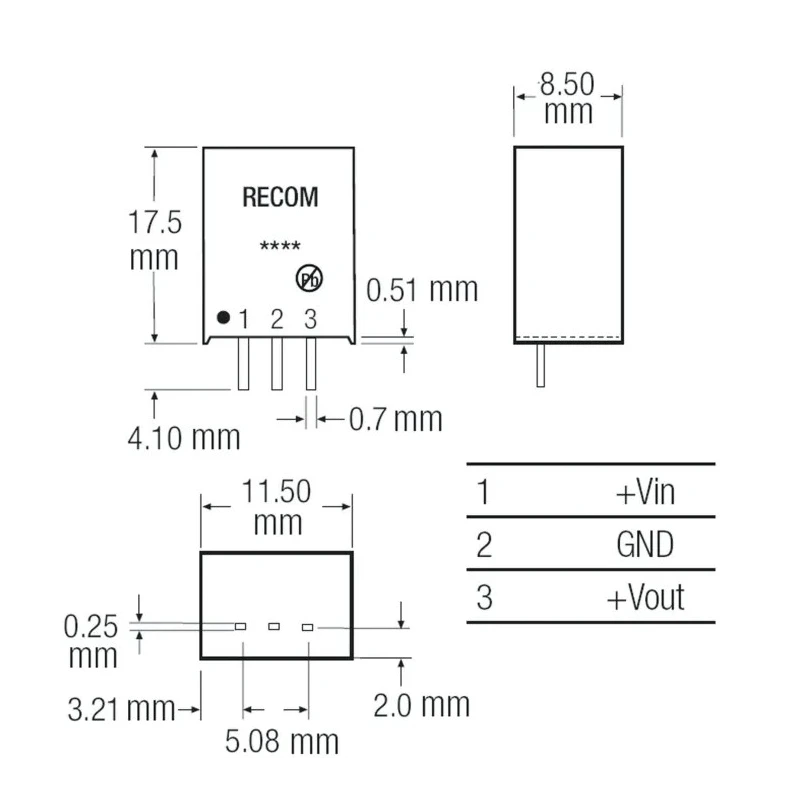

Compact SIP package with dimensions 11.5mm (L) x 8.5mm (W) x 17.5mm (H).
Operates within a wide temperature range from -40°C to 85°C.
Continuous short-circuit protection ensures device safety during electrical faults.
Low ripple and noise of 15mV peak-to-peak for stable output.
Supports input voltage from 9V DC to 32V DC.
Mean Time Between Failures (MTBF) exceeding 6.5 million hours enhances reliability.

Product Description

Recom R-78B6.5-1.0 Switching Regulator is a high-performance DC/DC converter designed for precise power supply needs. This through hole type regulator offers a stable 6.5V DC output voltage at 1 A output current with a power rating of 6.5W, making it ideal for electronic circuits requiring efficient voltage conversion.

The device features a compact SIP package measuring 11.5mm in length, 8.5mm in width, and 17.5mm in depth suitable for compact circuit designs. It operates reliably in harsh industrial environments with operating temperatures from -40°C up to 85°C and supports input voltages from 9V to 32V DC, providing wide adaptability.

Its high efficiency of 94% contributes to energy saving while the ripple and noise remain low at 15mV peak-to-peak, ensuring clean output power for sensitive electronics. The built-in continuous short-circuit protection enhances operational safety by preventing damage during fault conditions.

The switching regulator has a Mean Time Between Failures (MTBF) of over 6.5 million hours, offering dependable long-term performance. Weighing just 4 grams, it reduces mechanical stress on the mounting surface.

Applications include IoT components, wearable devices, and household appliances where stable power supply and reliability are critical. Through hole mount type suitable for stable PCB installation. Delivers 6.5W power with high efficiency up to 94%.

Compact SIP package with dimensions 11.5mm (L) x 8.5mm (W) x 17.5mm (H). Operates within a wide temperature range from -40°C to 85°C. Continuous short-circuit protection ensures device safety during electrical faults. Low ripple and noise of 15mV peak-to-peak for stable output.

Supports input voltage from 9V DC to 32V DC. Mean Time Between Failures (MTBF) exceeding 6.5 million hours enhances reliability. Lightweight design at 4 grams minimizes mechanical stress on mounting. For specialized voltage regulator and power conversion needs, explore Recom products and Switching Regulators at EnvMart.
