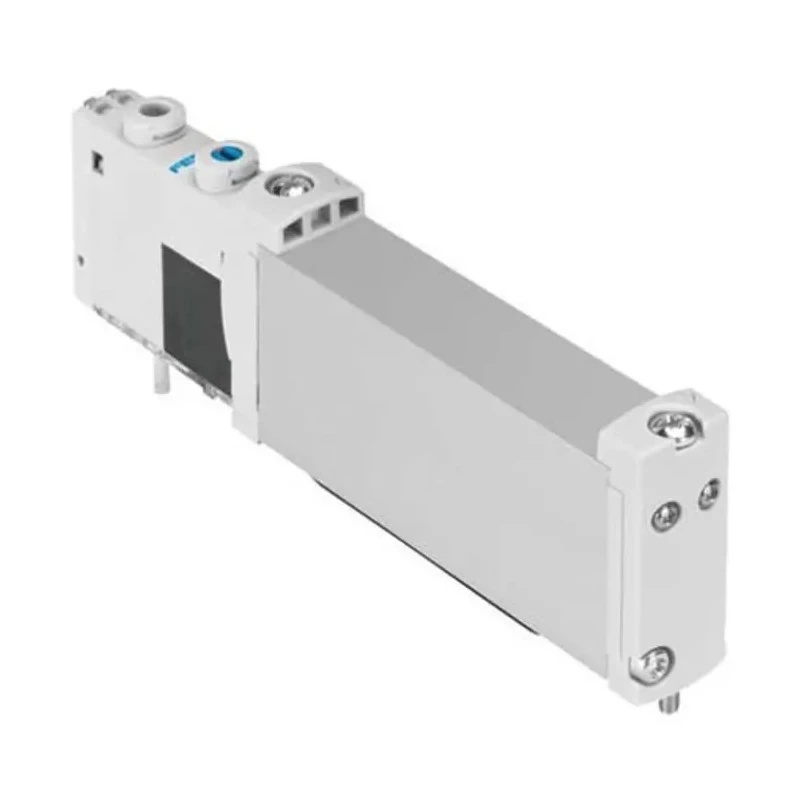

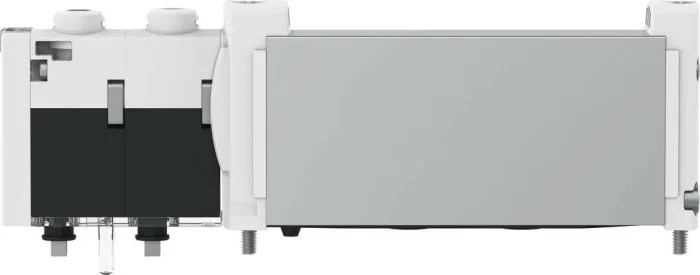

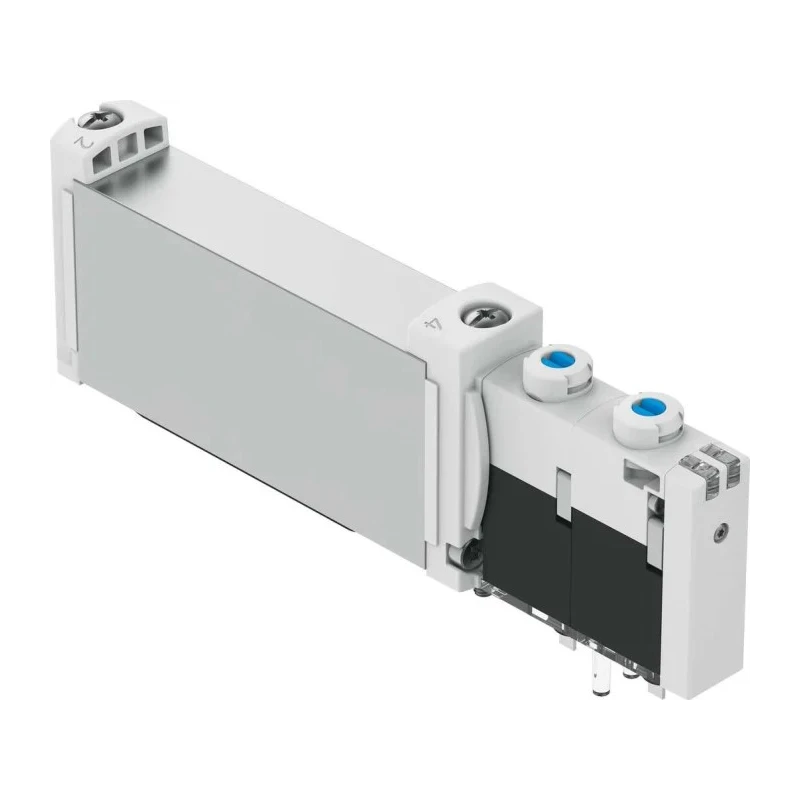

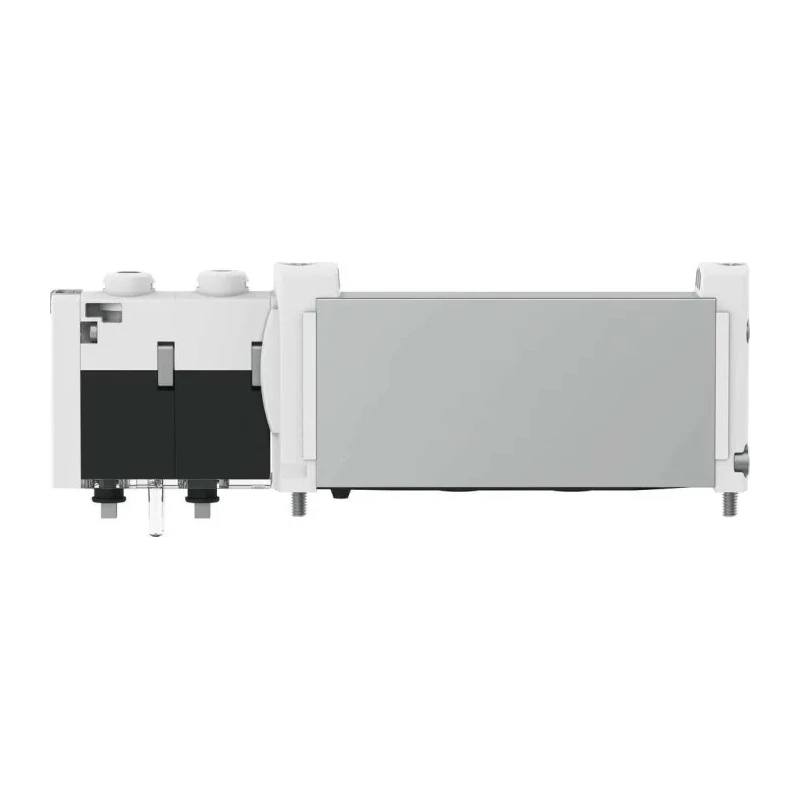

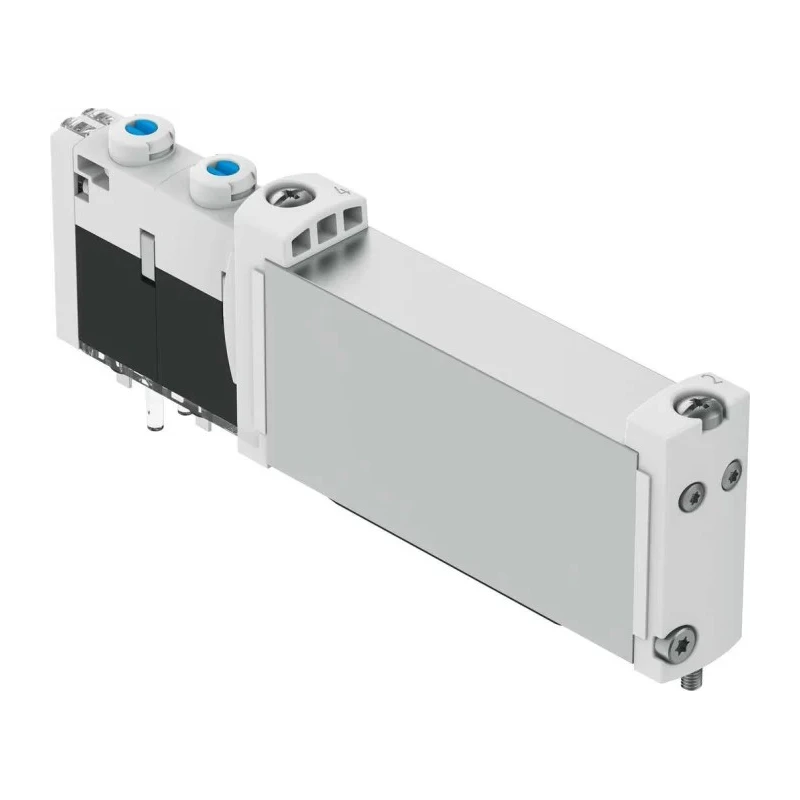

Festo 3/2 NC Electric Solenoid Valve VUVG Series 24V dc VUVG-B14-T32C-AZT-F-1T1L
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 10 (External) bar, 8 (Internal) bar |
| Length | 74.3mm |
| Model | VUVG-B14-T32C-AZT-F-1T1L |
| Width | 14mm |
| Mount Type | Manifold |
| Series | VUVG |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 60°C |
| Port Type | M3, Silencer, Push-in |
| Number of Positions | 2 |
| Port Size | M3 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Electric |
| Maximum Flow Rate | 530L/min |
| Standards/Approvals | cULus, RoHS |
| Minimum Pilot Pressure | 1.5bar |
| Valve Function | 3/2 NC |
| Electrical Connection Type | Manifold Block |
| Maximum Pilot Pressure | 8bar |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 1W |
Key Features
- Compact aluminium alloy body offers durability and corrosion resistance.
- Operates reliably with a maximum operating pressure of 10 bar external and 8 bar internal.
- Nitrile Rubber (NBR) seals provide chemical resistance and longevity.
- Manifold mounting type supports flexible installation in various orientations.
- Maximum flow rate of 530 L/min ensures efficient fluid control.
- IP67 rating guarantees dust-tight protection and water immersion resistance.
- Energy-efficient operation consumes only 1W of power.
- Operating temperature range from -5°C to 60°C supports diverse industrial environments.
Product Description
Festo VUVG-B14-T32C-AZT-F-1T1L 3/2 NC Electric Solenoid Valve from the VUVG Series is designed for precise pneumatic control and reliable operation in demanding industrial applications such as pharmaceutical manufacturing, medical facilities, and the textile industry.
This solenoid valve features a compact aluminium alloy body that provides excellent mechanical strength, abrasion resistance, and corrosion protection. Sealed with nitrile rubber (NBR), it ensures resistance against corrosive chemicals commonly encountered in factory environments.
With a 3/2 normally closed (NC) valve function, it efficiently controls compressed air flow for single-acting valves. The valve is actuated electrically via a 24V dc supply, compatible with low-power systems, and is easily mounted to manifolds in any orientation for versatile installation.
Its maximum external operating pressure is 10 bar, with internal pressure capped at 8 bar, supporting robust pneumatic system demands. The valve allows a maximum flow rate of 530 liters per minute, enabling effective fluid power management.
Designed for durability, the valve operates reliably within a temperature range from -5°C up to 60°C. The IP67 ingress protection rating certifies the product is dust-tight and withstands temporary immersion in water up to 1 meter deep, ideal for harsh industrial environments.
This valve operates on a minimal 1W power consumption, making it an energy-efficient component with fast switching capabilities, reversing the cycle in just 16 milliseconds for responsive control.
Compact and corrosion-resistant aluminium alloy body. NBR seals resist chemical corrosion. Manifold mountable for flexible installation options. Suitable for use in pharmaceutical, medical, and textile industries. IP67 rated for dust and water protection.
Operates from -5°C to 60°C temperature range. Efficient 1W power consumption. Supports maximum operating pressure of 10 bar external. Fast 16 ms switching cycle reversal time. Explore the wide range of Festo Pneumatic Solenoid Valves and related industrial components on EnvMart for reliable fluid control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this solenoid valve is 10 bar external and 8 bar internal.
This model has a maximum flow rate of 530 liters per minute, allowing for efficient fluid control.
The operating temperature range for this valve is from -5°C to 60°C, making it suitable for various industrial environments.
It uses nitrile rubber (NBR) seals, which provide chemical resistance and longevity.
This valve is actuated electrically via a 24V dc supply, which is compatible with low-power systems.
The body of this solenoid valve is made from a compact aluminium alloy, offering durability and corrosion resistance.
This model supports manifold mounting, allowing for flexible installation in various orientations.
The dimensions of this valve are 74.3mm in length and 14mm in width.
It operates with a power consumption of only 1W, making it energy-efficient.
This valve functions as a 3/2 normally closed (NC) valve, controlling compressed air flow for single-acting valves.
This model complies with cULus and RoHS standards, ensuring it meets safety and environmental regulations.
The minimum pilot pressure required for this solenoid valve is 1.5 bar.
