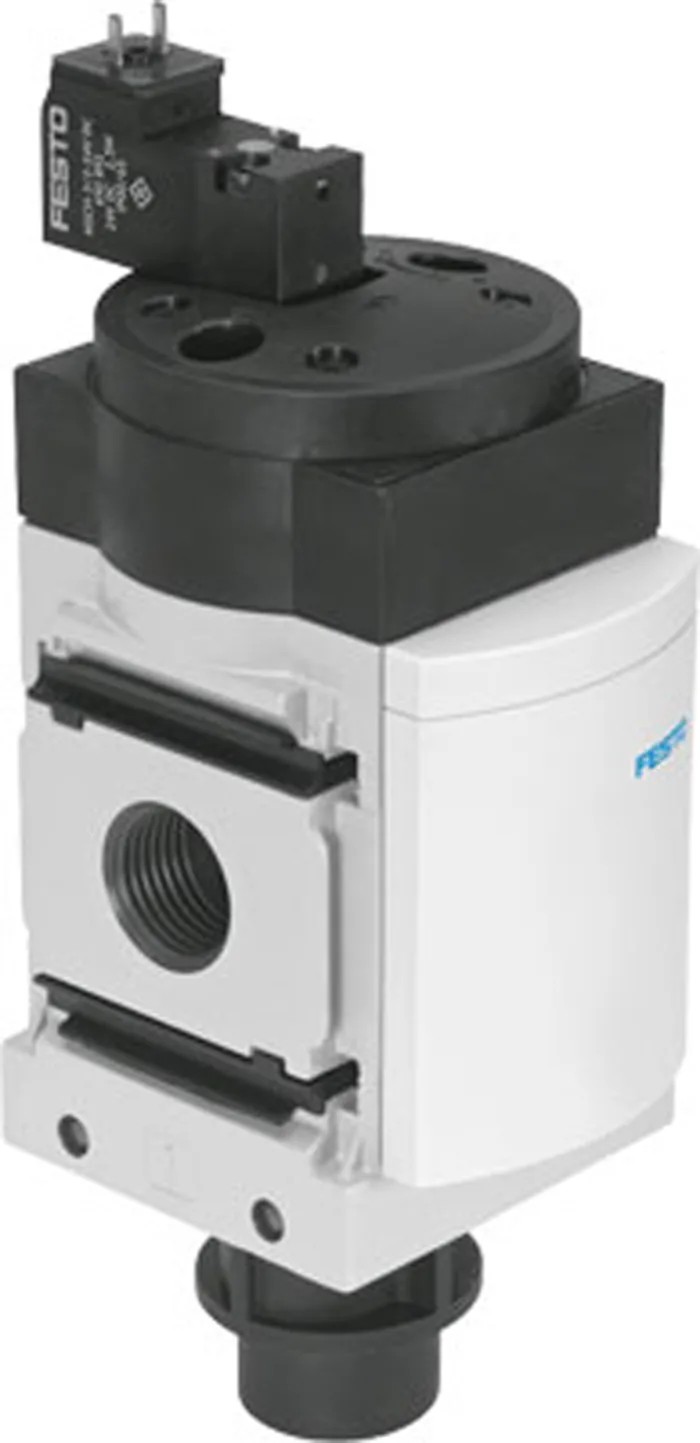

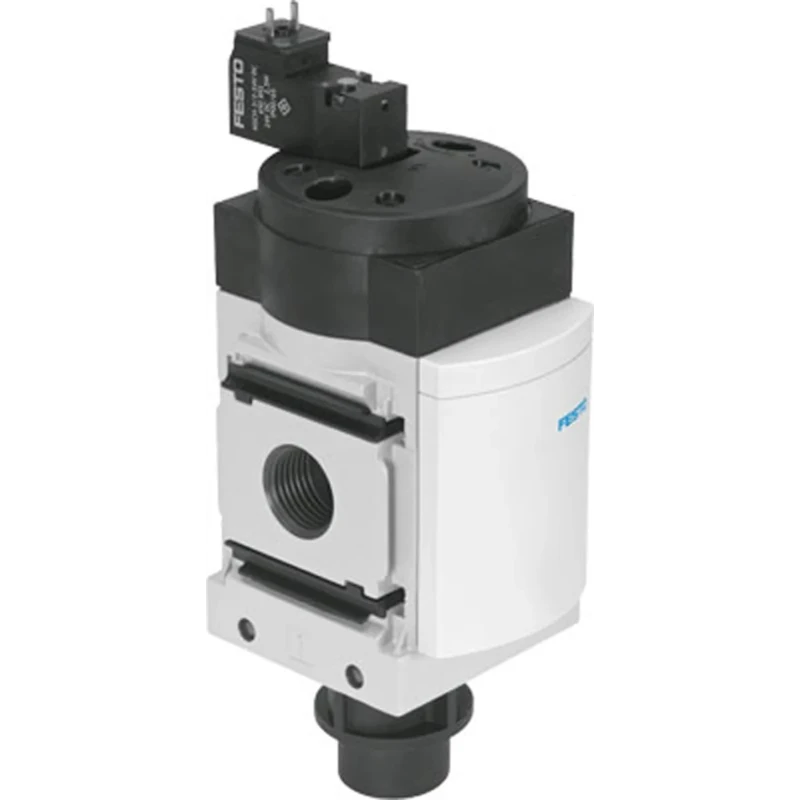

Festo Pneumatic Solenoid Valve 3/2 Electric G MS6 Series 24V dc MS6-EE-1/2-10V24
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Model | MS6-EE-1/2-10V24 |
| Mount Type | Bracket |
| Series | MS6 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Port Type | Threaded |
| Number of Positions | 2 |
| Port Size | 1/2 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Electric |
| Maximum Flow Rate | 7000L/min |
| Standards/Approvals | cULus, RoHS |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 4bar |
| Valve Function | 3/2 |
| Electrical Connection Type | Type C |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 2.5W |
| Festo Pneumatic Manual Control Valve HEE Series, G G 1/4, 172959Brand | Festo |
Key Features
- Three-port 3/2 valve function for directional control of compressed air.
- Operates with a maximum pressure of 10 bar and flow rate up to 7000 L/min.
- Constructed from durable aluminium body with Nitrile Rubber (NBR) seals for air tightness.
- Electric actuation with single solenoid and 2 position switching.
- Wide operating temperature range from -10°C to 50°C for versatile industrial use.
- Bracket mounted with female G 1/2 threaded ports for easy installation.
- Consistent operation with solenoid power consumption of 2.5 W and IP65 dust/water protection.
- Suitable for aviation, manufacturing, conveyor systems, and industrial cylinders.
Product Description
Festo MS6-EE-1/2-10V24 pneumatic solenoid valve is a 3/2 port electric valve designed for precise control of compressed air in automated industrial processes. It functions by directing airflow through three ports with two valve positions, allowing for effective actuation of pneumatic cylinders and machinery.
This valve operates at 24V dc with a maximum operating pressure of 10 bar and a maximum flow rate of 7000 L/min. The aluminium construction ensures durability and corrosion resistance, while the Nitrile Rubber (NBR) seals provide reliable sealing to prevent air leakage during operation. The solenoid uses a single coil consuming only 2.5 watts for energy-efficient performance.
Its robust design supports a wide temperature operating range from -10°C to 50°C, making it suitable for demanding environments such as aviation, conveyor system automation, and manufacturing equipment. The valve mounts via a bracket and connects through three female G 1/2 threaded ports with G standard connection threads. This enables straightforward integration into pneumatic systems and compatibility with expansion accessories.
A manual override mechanism is incorporated to allow manual actuation during emergencies or maintenance. The device carries approvals including cULus and RoHS, verifying compliance with safety and environmental standards. Its IP65 rating ensures protection against dust ingress and water jets, enhancing reliability in industrial conditions.
Applications include pneumatic cylinders, conveyor automation, and other industrial machinery requiring controlled airflow. The valve's ergonomic line installation design allows mounting in any position, providing system flexibility. The unit is manufactured in Hungary ensuring quality standards.
Three-port 3/2 electrical valve function enables directional air control. Maximum operating pressure of 10 bar suitable for low to moderate pressure systems. Aluminium body for lightweight and corrosion resistance. Nitrile Rubber seals ensure solvent resistance and air tightness.
Wide temperature range operation -10°C to 50°C for diverse environments. Manual override allows emergency actuation. Solenoid power consumption low at 2.5 W for energy efficiency. Threaded female G 1/2 ports compatible with standard pneumatic fittings.
IP65 protection class for dust and water ingress resistance.
This Festo pneumatic solenoid valve is a high-quality solution for industrial pneumatic control systems. Browse similar Pneumatic Solenoid Valves and Festo products on EnvMart for a full range of industrial valve solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic solenoid valve is 10 bar.
It has a maximum flow rate of 7000 L/min.
The operating temperature range is from -10°C to 50°C.
This valve uses electric actuation with a single solenoid.
The body of the valve is constructed from aluminium, providing lightweight and corrosion resistance.
It is bracket mounted and features female G 1/2 threaded ports for easy installation.
The valve carries approvals including cULus and RoHS, verifying compliance with safety and environmental standards.
The solenoid power consumption is low at 2.5 watts.
It operates as a 3/2 valve, allowing for directional control of compressed air.
The valve uses Nitrile Rubber (NBR) seals to ensure air tightness and prevent leakage.
The minimum pilot pressure required for this valve is 4 bar.
It is suitable for applications in aviation, manufacturing, conveyor systems, and industrial cylinders.
