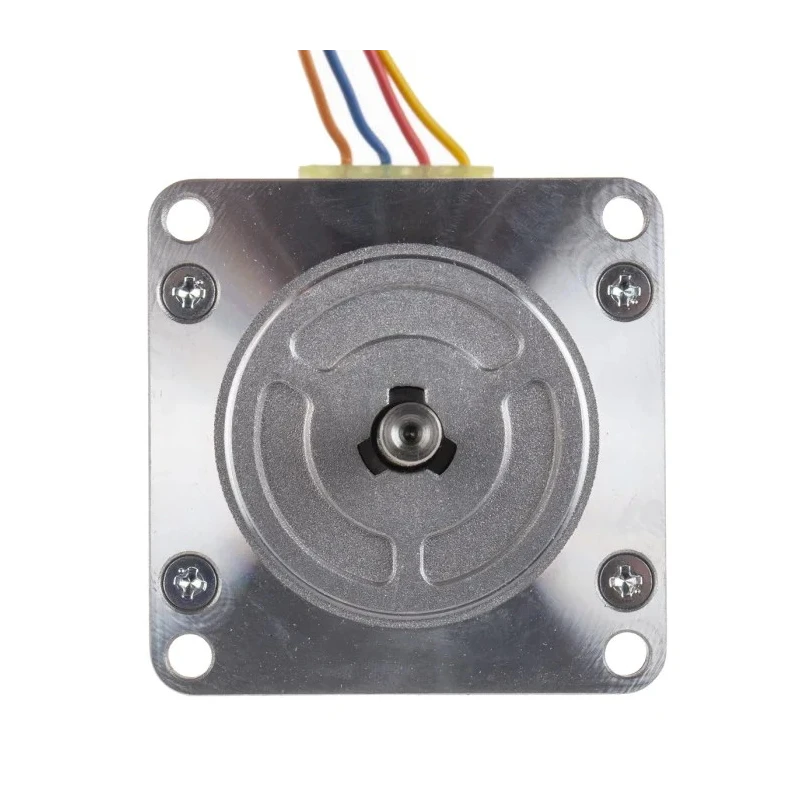

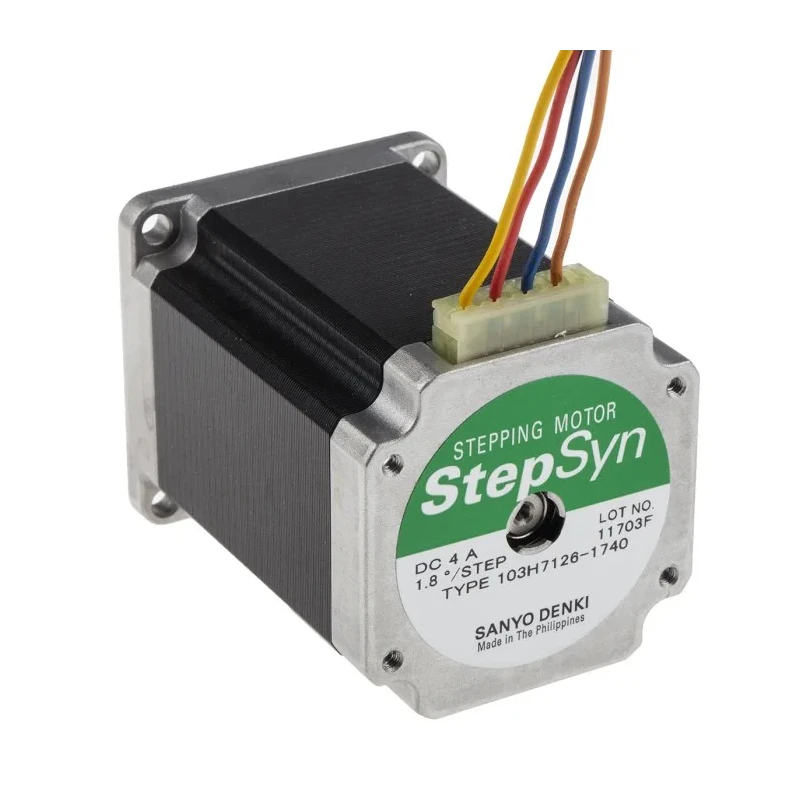

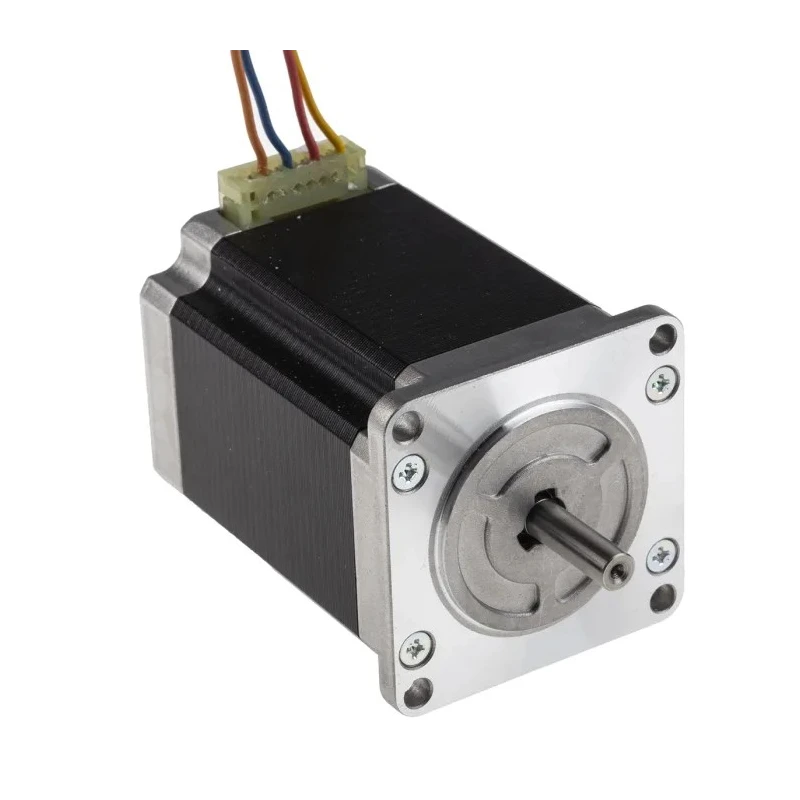

Sanyo Denki 103H7 Series Stepper Motor 48V, 1.65Nm Torque, 1.8° Step Angle, 56 x 56 mm Frame, 6.35 mm Shaft 103H7126-1740

Free Delivery in India | Lowest Global Shipping Charges

Sanyo Denki 103H7 Series Stepper Motor 48V, 1.65Nm Torque, 1.8° Step Angle, 56 x 56 mm Frame, 6.35 mm Shaft 103H7126-1740

Name: Sanyo Denki 103H7 Series Stepper Motor 48V, 1.65Nm Torque, 1.8° Step Angle, 56 x 56 mm Frame, 6.35 mm Shaft 103H7126-1740
Brand: Sanyo Denki
SKU: 206575
Price: 101.41 USD
Availability: InStock



Category Stepper Motors Brand Sanyo Denki Condition New

Specifications

Country of Origin	Philippines
Voltage	48V
Brand	Sanyo Denki
Length	75.8mm
Model	103H7126-1740
Depth	56mm
IP Rating	IP65, IP43, IP40
Width	56mm
Current Rating	4A
Series	103H7
Frame Size	56 x 56 mm
Shaft Diameter	6.35mm
Shaft Length	15.5mm
Standards/Approvals	CE, RoHS Compliant, TUV, UL
Step Angle	1.8°
Holding Torque	1.65Nm
Winding Arrangement	Bipolar

Key Features

This stepper motor operates at a voltage of 48 volts for robust performance.
It features a high holding torque of 1.65Nm for stable positioning tasks.
Compact frame size of 56 mm by 56 mm fits easily in tight spaces.
The bipolar winding arrangement ensures efficient and powerful torque output.
Shaft diameter is 6.35 mm with a length of 15.5 mm for versatile mechanical integration.
IP ratings of IP65, IP43, and IP40 provide protection for various industrial environments.
Its 1.8° step angle allows for smooth and precise movement control.
The motor weighs approximately 1 kg, reducing load on connected equipment.

Product Description

Sanyo Denki 103H7126-1740 Stepper Motor is a high-precision electric motor designed for demanding industrial and automation applications. Operating at 48 volts and delivering a holding torque of 1.65Nm, this motor features a 1.8° step angle that ensures accurate and repeatable positioning.

The motor's compact frame size of 56 x 56 mm and shaft diameter of 6.35 mm with a 15.5 mm shaft length make it ideal for integration into space-constrained machinery. Its bipolar winding configuration provides efficient torque output across various speeds, making it suitable for applications that require stable and reliable control.

The stepper motor boasts multiple ingress protection ratings including IP65, IP43, and IP40, allowing it to withstand different industrial environments such as food processing, water treatment, and packaging operations. Lightweight at approximately 1 kg, it minimizes mechanical strain on connected systems.

Applications for this motor include embroidery machines, 3D printers, food packaging systems, and water cleaning equipment. Its fixed step angle rotation is particularly beneficial for filling machines, enabling precise and consistent dispensing regardless of material viscosity.

This motor supports smooth and precise positioning with a 1.8° step angle. Its bipolar winding arrangement delivers powerful holding torque of 1.65Nm. Compact dimensions allow installation in confined spaces. High IP ratings protect against dust and water ingress for reliable operation.

Lightweight design at roughly 1 kg reduces equipment strain. Wide industrial use cases including robotics, packaging, and printing. Compliant with CE, RoHS, TUV, and UL standards ensuring quality and safety.

This Sanyo Denki stepper motor is part of the 103H7 Series, offering versatile and dependable performance for modern industrial control systems. Explore the full range on EnvMart for comprehensive industrial motor and automation solutions.
