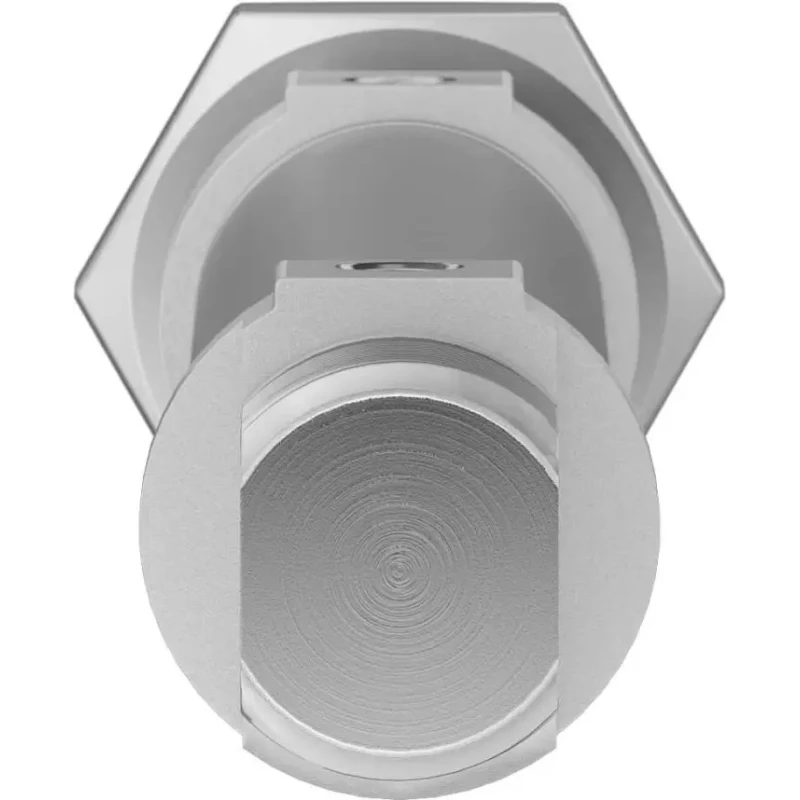

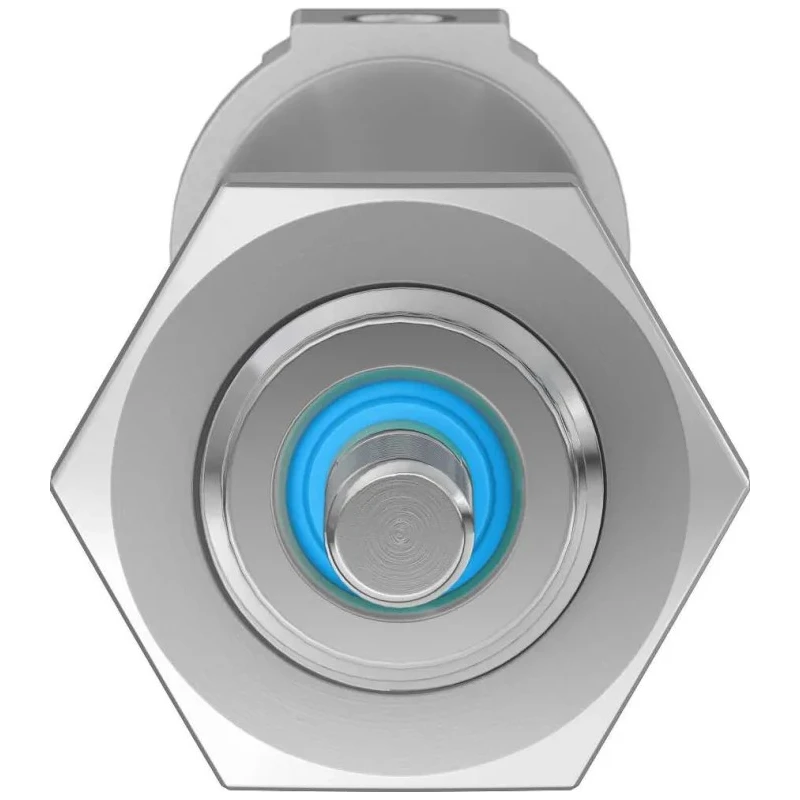

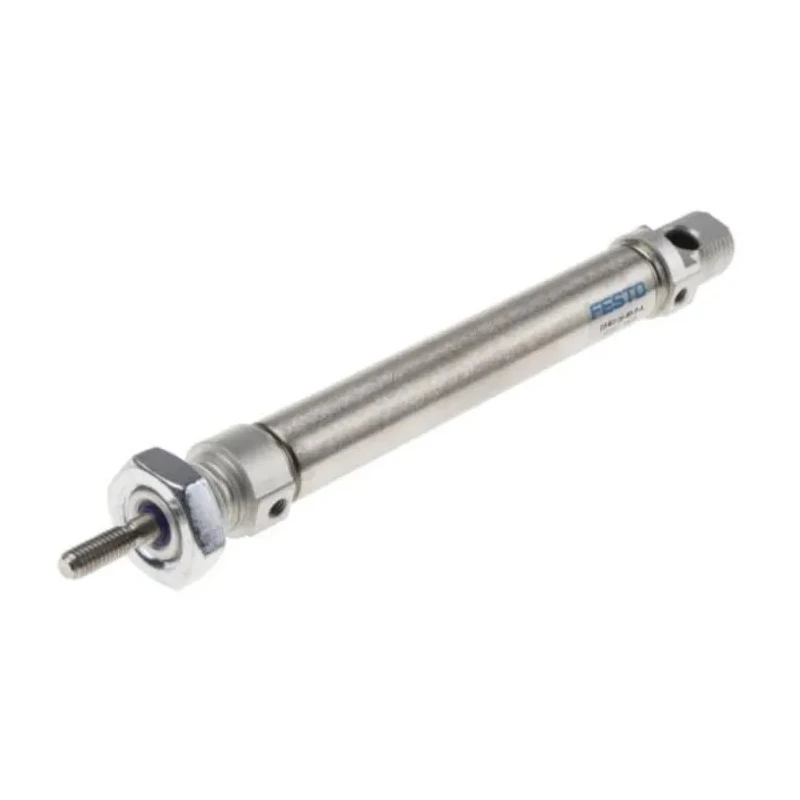

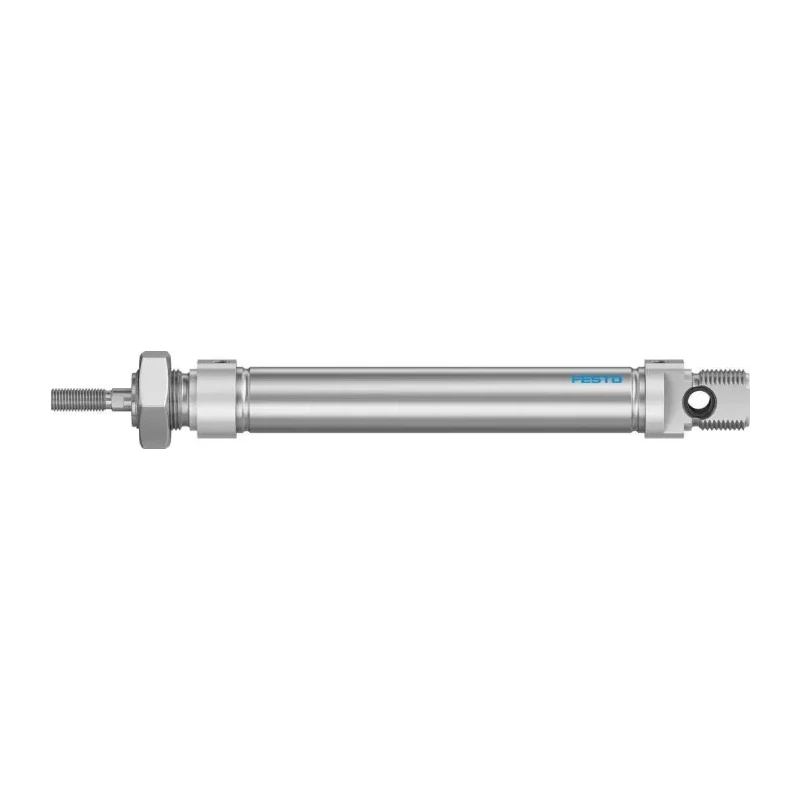

Festo Pneumatic Cylinder 16 mm Bore, 70 mm Stroke, Double Acting, Aluminium Body, Through Hole Mount DSNU-16-70-P-A

Festo DSNU-16-70-P-A pneumatic cylinder is a precision-engineered double acting cylinder with a 16 mm bore and 70 mm stroke, designed for robust industrial, laboratory, and manufacturing pneumatic applications. Made with a lightweight aluminium body combined with a stainless steel piston rod, it ensures corrosion resistance and durability over long service life.

The cylinder features through hole mounting options and elastomer cushioning to absorb impact energy, providing smooth motion and reducing wear and tear. Operating up to 80°C, this pneumatic actuator complies with ISO 6432 standards for metric mounting dimensions, enabling easy interchangeability with compatible pneumatic and hydraulic components.

This model operates in a double acting mode with dual air ports for advancing and retracting the piston rod in linear motion. The integrated flexible cushioning rings at both ends of the barrel dissipate energy effectively, making the DSNU series cylinders ideal for small load, low speed applications.

The piston rod has an M5 thread size while the piston connector uses an M6 thread, allowing secure and flexible assembly. The cylinder is designed to be mounted in any orientation to suit various setups and may be enhanced with optional mounting accessories such as swivel brackets or foot mounts.

Conforms to ISO 6432 metric mounting standards. Aluminium body and stainless steel piston rod for durability. Double acting with flexible elastomer cushioning rings. Maximum operating temperature of 80°C for versatility.

Through hole mounting type for installation flexibility. M5 piston rod thread with M6 piston connector thread. Manufactured in Germany, assuring high-quality standards. RoHS compliant and meets CETOP RP 52 P approval standards.

Suitable for industrial, manufacturing, pneumatic automation, and laboratory fluid power systems.

Festo DSNU series cylinders are widely employed in pneumatic piston rod applications requiring reliable, precise linear actuation. Their flexible mounting options and robust construction make them ideal for use in industrial automation, packaging, material handling, and process control equipment. Explore our range of pneumatic components and actuators for complete system solutions.
