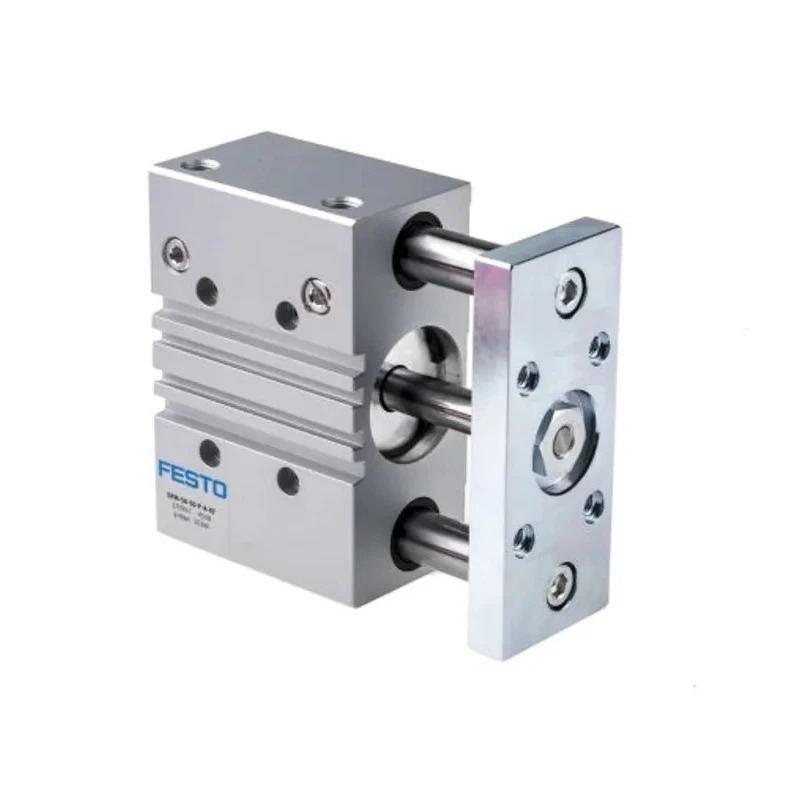

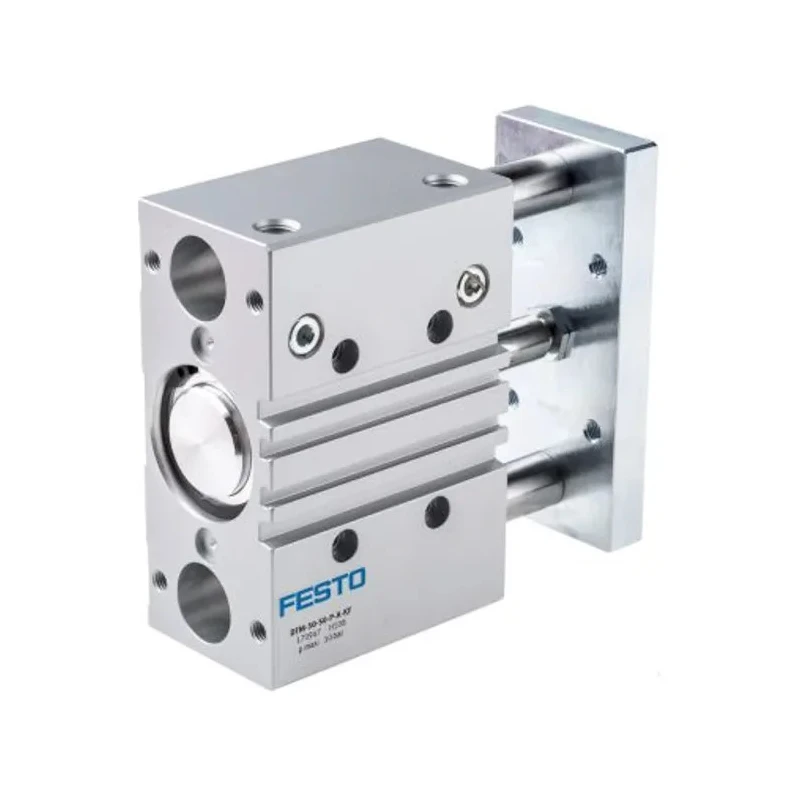

Festo Pneumatic Guided Cylinder Double Acting 63 mm Bore, 80 mm Stroke, Through Hole Mount, Elastomer DFM-63-80-P-A-KF

Festo DFM-63-80-P-A-KF pneumatic guided cylinder is a high-performance, double acting actuator with a 63 mm bore and 80 mm stroke length. This guided cylinder integrates both drive and guide functions in a single robust aluminium housing, featuring recirculating ball bearings to manage torque loads effectively. The through hole mount design along with elastomer cushioning enhances reliability and reduces operational noise, making it suitable for demanding industrial applications.

Its compact dimensions - 78 mm height, 162 mm width, and 194 mm length - facilitate installation in tight spaces while maintaining sturdy resistance to lateral and torque forces. The flexible cushioning plates contribute to extended component durability and quieter operation. The cylinder features air supply ports positioned on both top and side surfaces, allowing flexible mounting configurations to accommodate various system layouts.

The guided cylinder is engineered for industrial use cases involving clamping, lifting, and stopping with maximum operating pressure of 10 bar and operating temperature range of -5°C to 60°C. The piston guide rod is paired with a yoke and guided by plain and ball bearings, ensuring precise linear motion under heavy load conditions. Integrated slots are available for fitting proximity sensors to enable position feedback and motion measurement.

This maintenance-free unit is especially suited for sectors such as manufacturing, material handling, and automation requiring precise, reliable pneumatic motion control. Its high resistance to torque and lateral forces ensures dependable performance in tough working environments.

Recirculating ball bearings provide excellent torque load handling capacity. Compact and rigid aluminium construction enhances durability and strength. Elastomer cushioning plates minimize noise and extend operational lifespan.

Top and side air supply ports offer versatile mounting options. Integrated guidance with through hole mounting facilitates secure installation. Suitable for industrial clamping, lifting, and stopping applications. Operating pressure up to 10 bar supports demanding pneumatic functions.

Operating temperature range supports environments from -5°C to 60°C.

The package contains one Festo DFM series pneumatic guided cylinder, model DFM-63-80-P-A-KF, manufactured in Germany under RoHS and ISO 228-1, ISO 1179-1 standards. For additional pneumatic cylinder solutions, explore the Pneumatic Guided Cylinders category at EnvMart.
